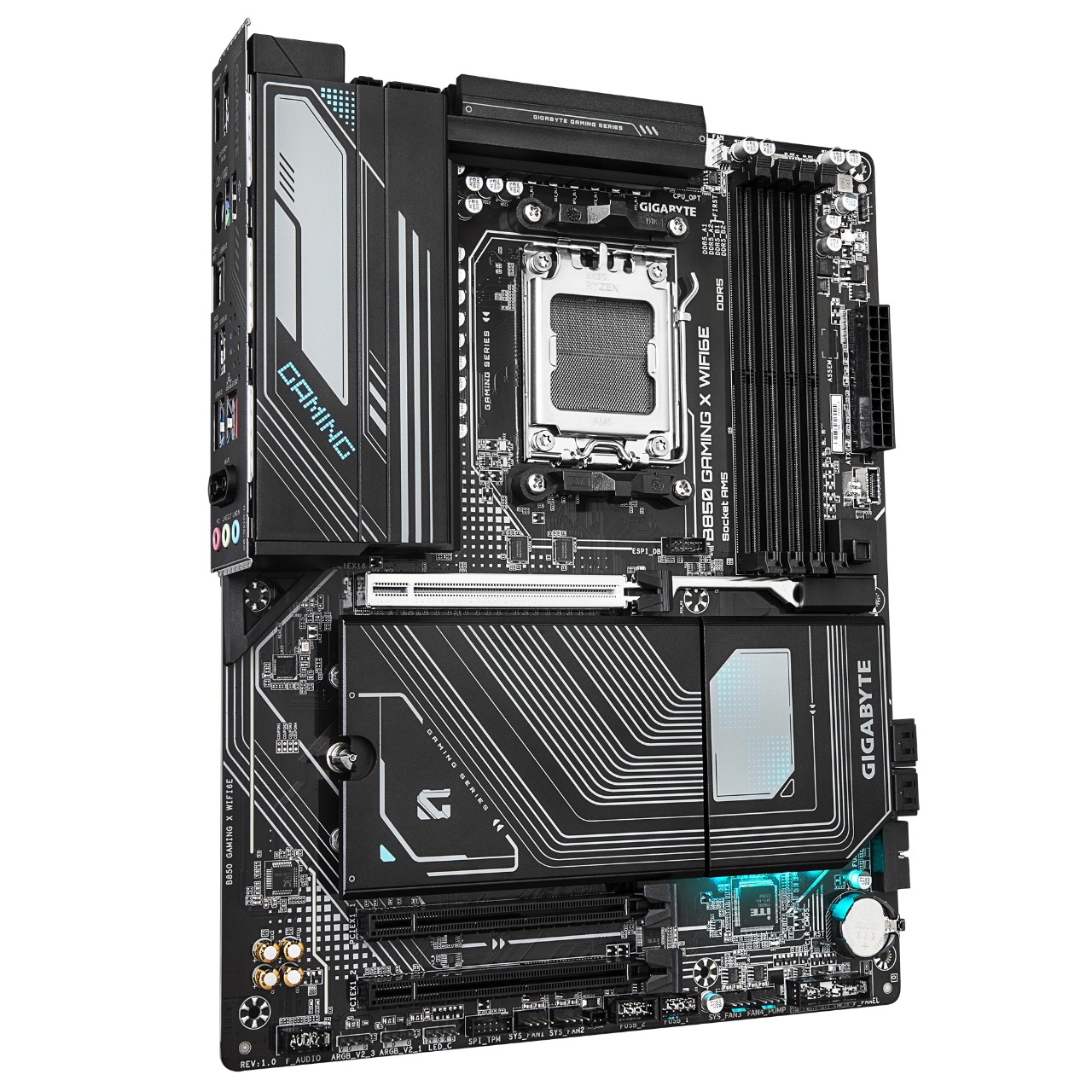

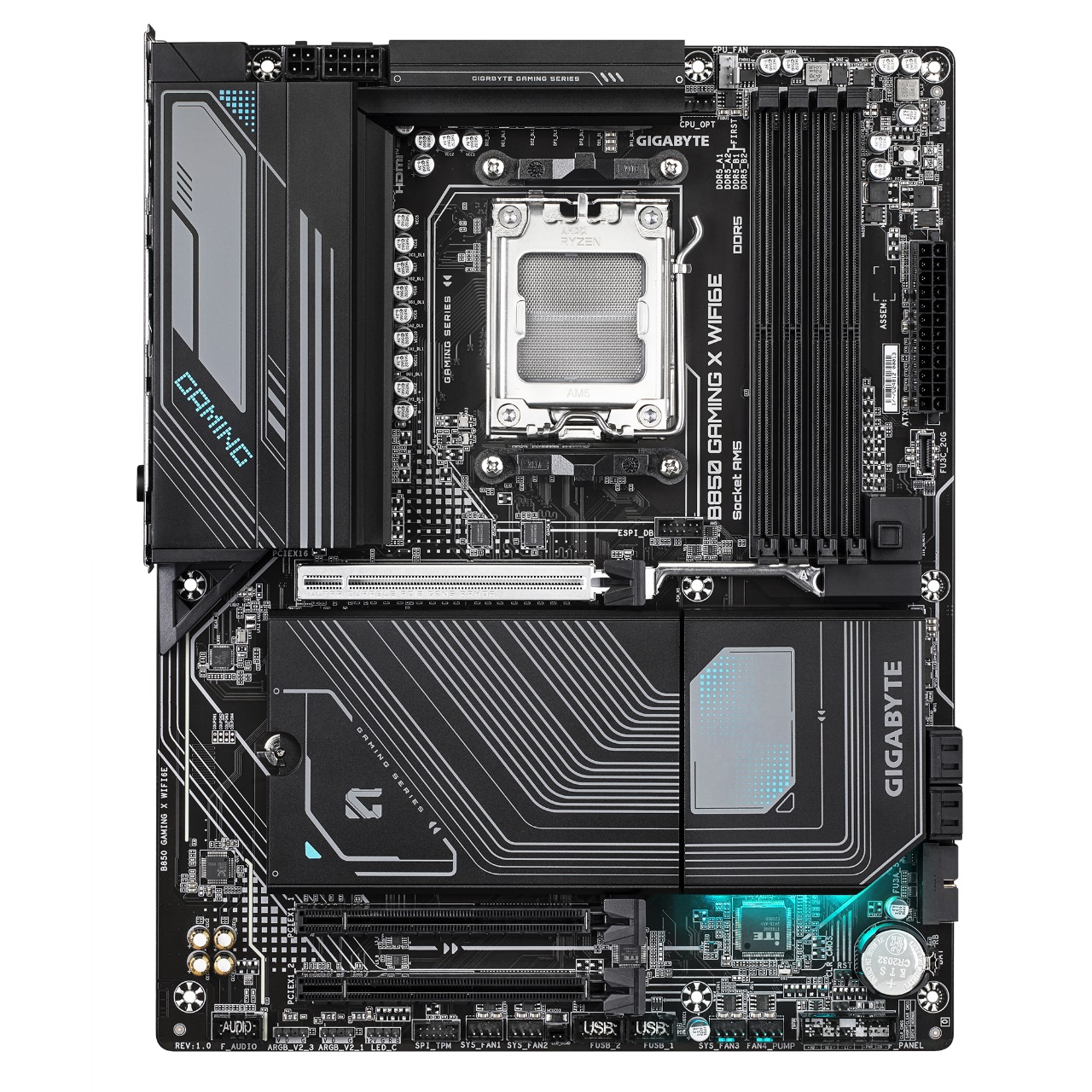

Gigabyte B850 GAMING X WIFI6E

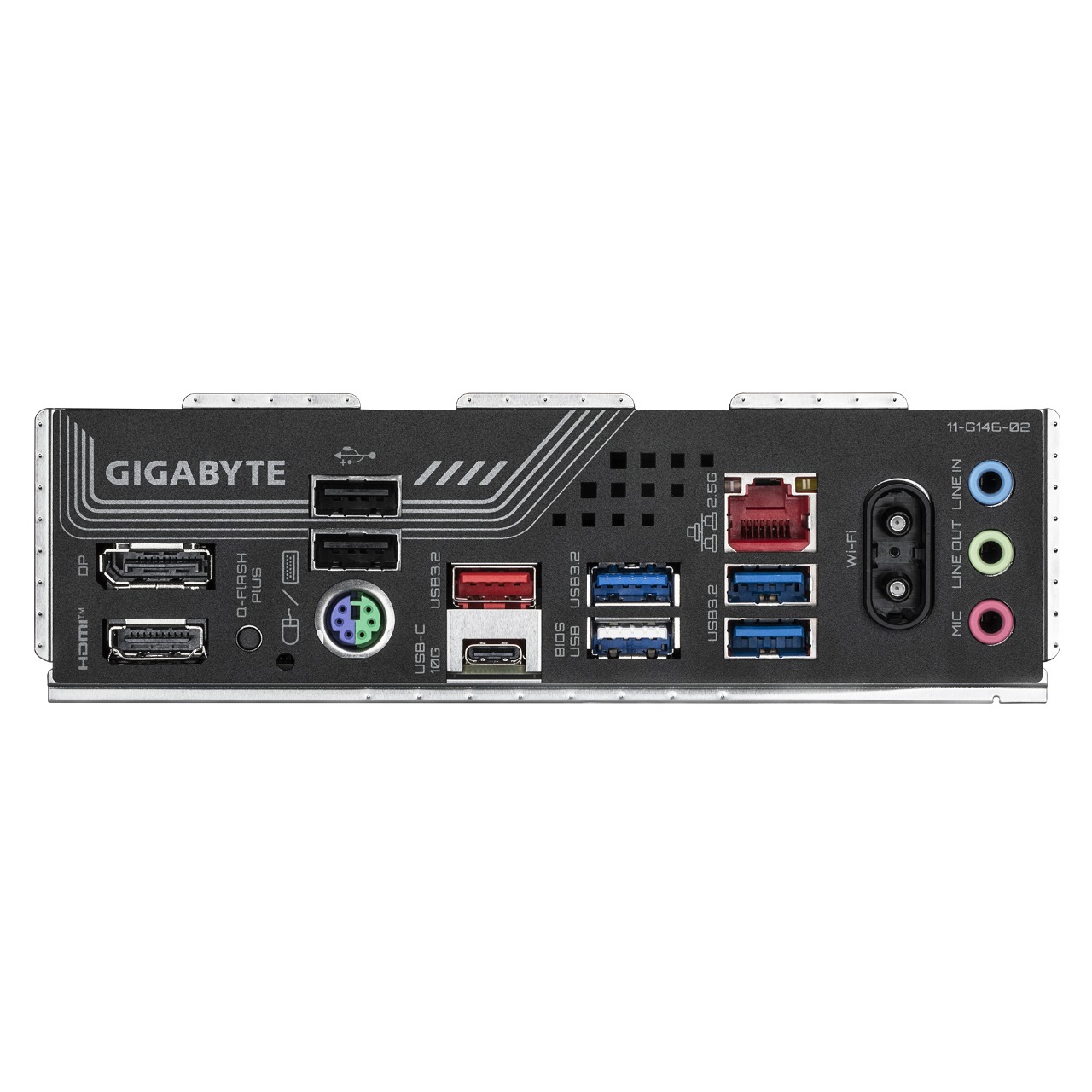

�� Core Support Socket: AMD AM5 – Supports Ryzen 9000/8000/7000 Series Chipset: B850 VRM: 8 2 2 Twin Digital Phases with 6-layer PCB and 2oz copper for stable power delivery �� Memory DIMM Slots: 4 × DDR5 (Dual Channel) Max Speed: Up to 8,200 MT/s with EXPO/XMP overclocking support �� Storage & Expansion M.2 Slots: 3 total 1 × PCIe 5.0 x4 2 × PCIe 4.0 x4 SATA: 4 × SATA 6 Gbps ports PCIe Slots: 1 × PCIe 5.0 x16 3 × PCIe 3.0 x1 �� Connectivity LAN: 2.5 GbE Ethernet Wi-Fi: Wi-Fi 6E with high-gain antenna Rear I/O Ports: 1 × DisplayPort 1 × HDMI 1 × USB 3.2 Gen 2 Type-C (also supports 20 Gbps front panel connection) 1 × USB 3.2 Gen 2 Type-A 3 × USB 3.2 Gen 1 3 × USB 2.0 �� Audio 8-channel high-definition Realtek audio with high-quality capacitors ❄️ Cooling & Thermals Smart Fan 6: 6× PWM/DC fan headers with advanced dual-curve control VRM Thermal Armor Advanced with high-conductivity pads and integrated I/O shield M.2 Thermal Guard: Protects SSDs from thermal throttling �� DIY & Usability Features Q-Flash Plus: Update BIOS without CPU, RAM, or GPU EZ-Latch Plus: Tool-free PCIe and M.2 installation EZ-Debug Zone: Onboard diagnostic LEDs and buttons for easier troubleshooting �� Gaming & Performance Enhancements X3D Turbo Mode: One-click performance boost for Ryzen X3D and non-X3D CPUs, improving FPS by up to 18% D5 Bionic Corsa: AI-powered DDR5 memory tuning for maximum speed Auto OC & AI Snatch: Simplified CPU and memory overclocking AI-ViaFusion: Optimized PCB design leveraging AI algorithms �� Extras & Aesthetics RGB Fusion: 1 standard RGB and 3 ARGB Gen 2 headers for synchronized lighting across compatible devices EZ-Firmware: Easy BIOS interface with integrated real-time monitoring �� Key Specifications Form Factor: ATX Max Memory Capacity: 192 GB DDR5 USB Ports: 8 rear USB ports (including USB-C), plus internal headers PCIe Riser Support: PCIe 5.0 ready for next-gen GPUs Advanced BIOS: Feature-rich UEFI BIOS with intuitive navigation
