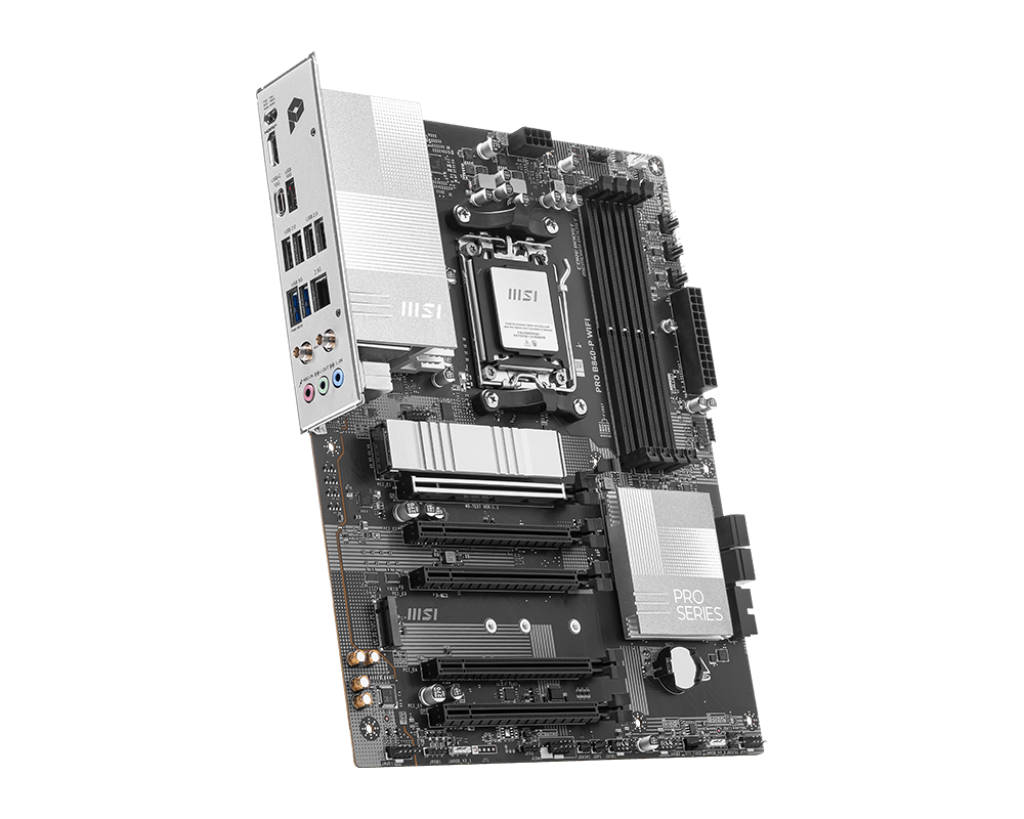

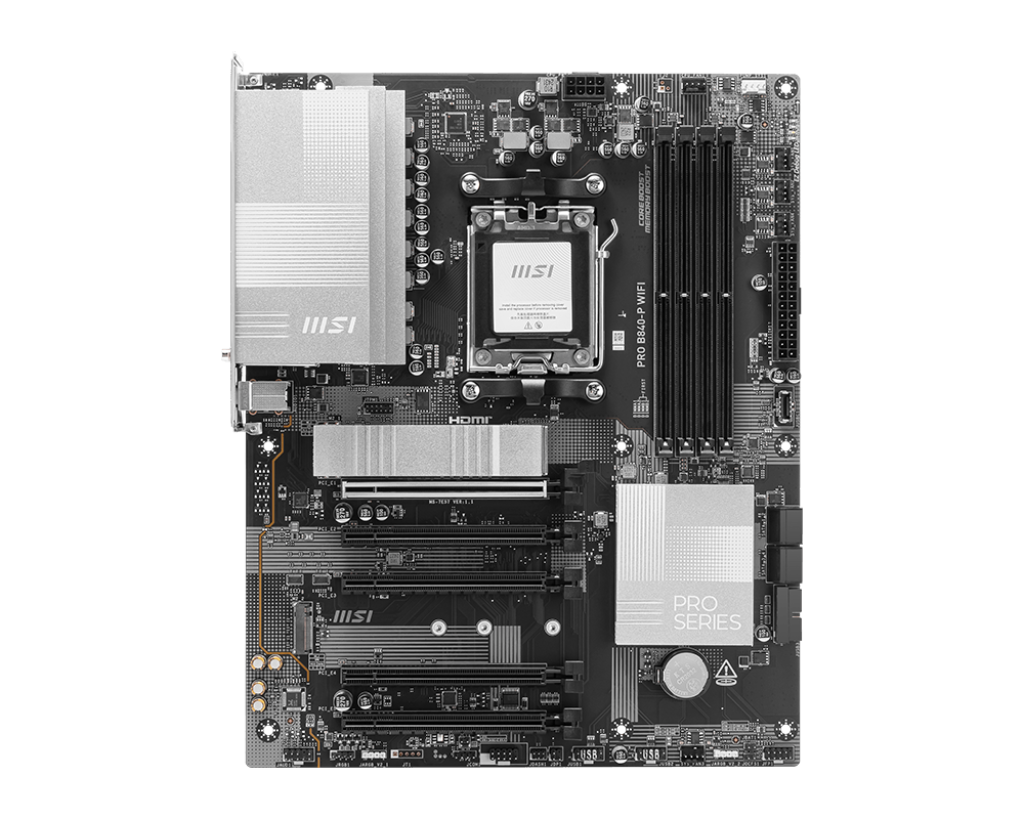

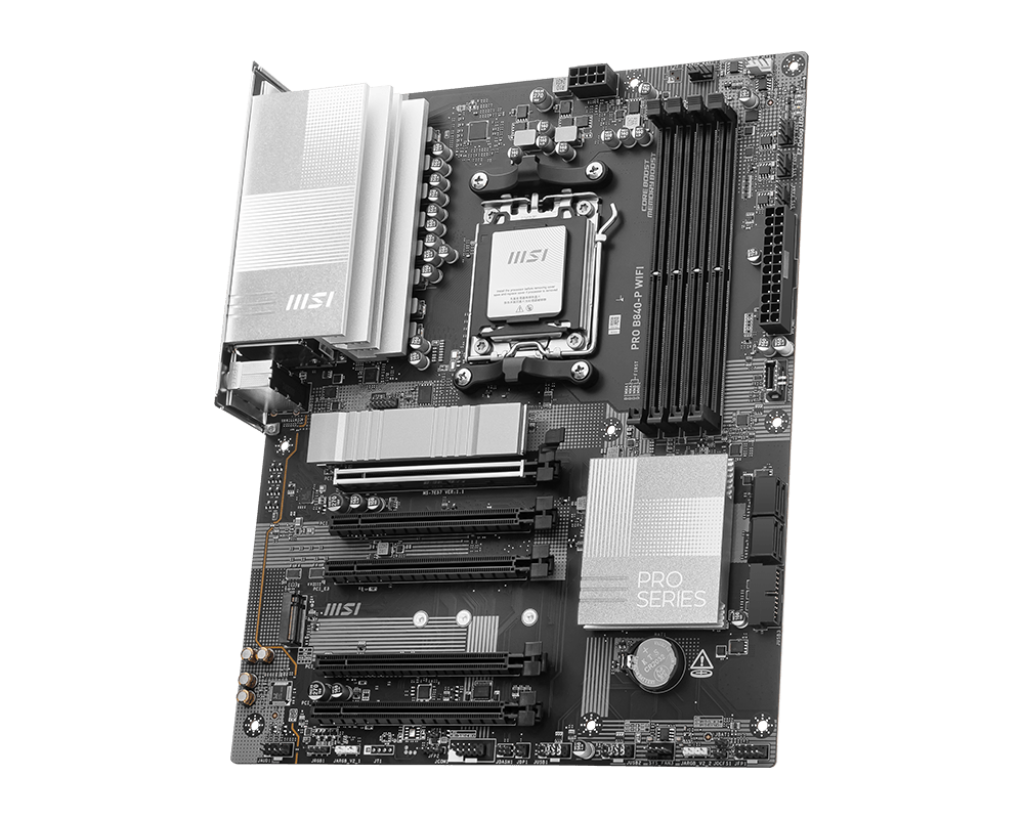

MSI PRO B840-P WIFI

��️ MSI PRO B840-P WIFI – Motherboard �� Chipset & CPU Chipset: AMD B840 Socket: AM5 CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors ��️ Memory Slots: 4x DDR5 UDIMM Max Capacity: 256GB Supported Speeds: OC: 8000–5600 MT/s JEDEC: 5600–4800 MT/s Max Overclocking Frequency (Ryzen 9000 Series): 1DPC 1R: Up to 8000 MT/s 1DPC 2R: Up to 6400 MT/s 2DPC 1R: Up to 6400 MT/s 2DPC 2R: Up to 5600 MT/s Features: Dual-Channel, AMD EXPO™, Non-ECC Unbuffered, CUDIMM (Clock Driver bypass mode only) �� Onboard Graphics 1x HDMI™ 2.1 – Up to 4K 60Hz (Available only on CPUs with integrated graphics) �� Expansion Slots 5x PCI-E x16 slots: PCI_E1 (from CPU): x16 (Ryzen 9000/7000) x8 (Ryzen 8700/8600/8400) x4 (Ryzen 8500/8300) PCI_E2: PCIe 3.0 x1 (from chipset) PCI_E3: PCIe 3.0 x1 (from chipset) PCI_E4: PCIe 3.0 x4 (from chipset) PCI_E5: PCIe 3.0 x1 (from chipset) �� Audio Codec: Realtek® ALC897 Channels: 7.1 High-Definition Audio �� Storage 2x M.2 slots: M.2_1 (from CPU): PCIe 4.0 x4, 2280/2260 devices M.2_2 (from CPU): PCIe 4.0 x4 (Ryzen 9000/7000) PCIe 3.0 x4 (Ryzen 8700/8600/8400) PCIe 3.0 x2 (Ryzen 8500/8300) Supports 22110/2280/2260 devices 4x SATA 6Gb/s RAID Support: SATA: RAID 0, 1, 10 NVMe M.2: RAID 0, 1 �� USB Rear I/O: 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 10Gbps Type-A 1x USB 10Gbps Type-C Front I/O: 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 5Gbps Type-C �� Networking LAN: Realtek® 8125D 2.5G Wireless: Wi-Fi 7 Bluetooth® 5.4 MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz (320MHz) Up to 5.8 Gbps ��️ Internal Connectors 1x 24-pin ATX Power 1x 8-pin CPU Power 1x CPU Fan 1x Pump/Combo Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x JDASH (Tuning Controller) 2x ARGB (JARGB_V2) 1x RGB (JRGB) 1x TPM 2.0 Header Multiple USB headers �� LED Features 4x EZ Debug LED 1x EZ Memory Detection LED �� Back Panel I/O Clear CMOS Button Flash BIOS Button 1x HDMI™ 1x USB 10Gbps Type-C 1x USB 10Gbps Type-A 2x USB 5Gbps Type-A 2x USB 2.0 1x 2.5G LAN (RJ45) Wi-Fi 7 Antenna Connectors Audio Connectors �� Form Factor PCB Size: ATX (243.84 x 304.8 mm) �� OS Support Windows® 11 64-bit
