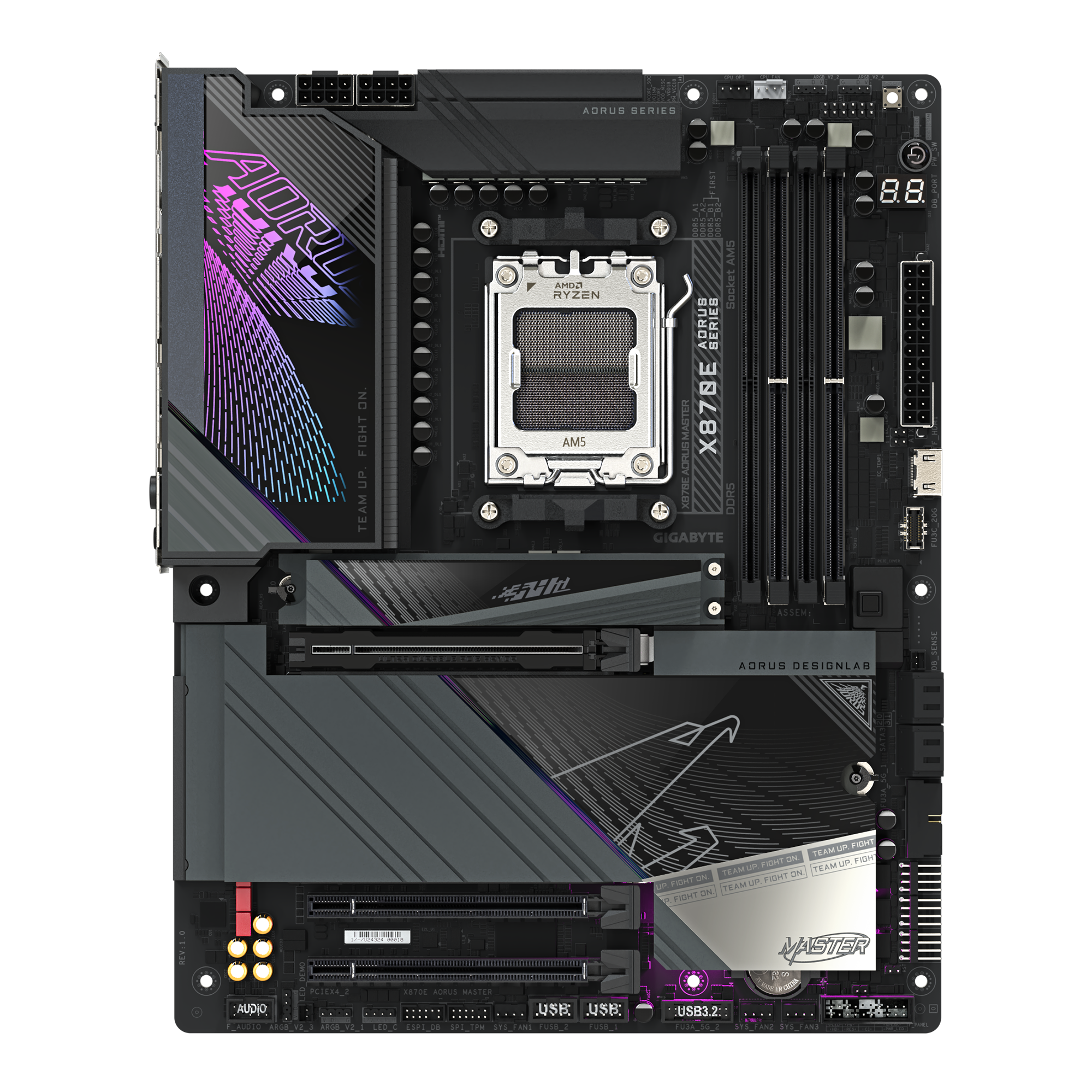

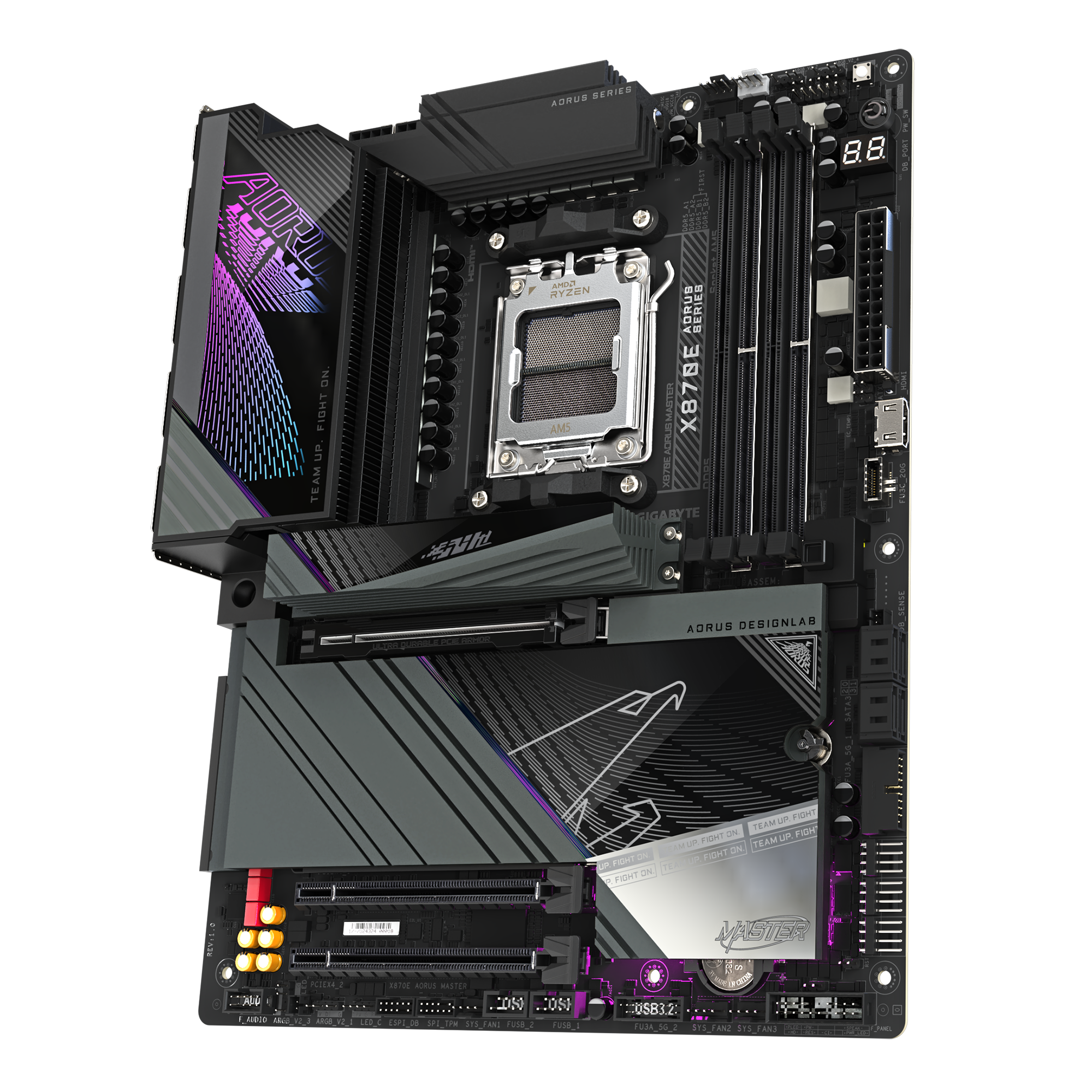

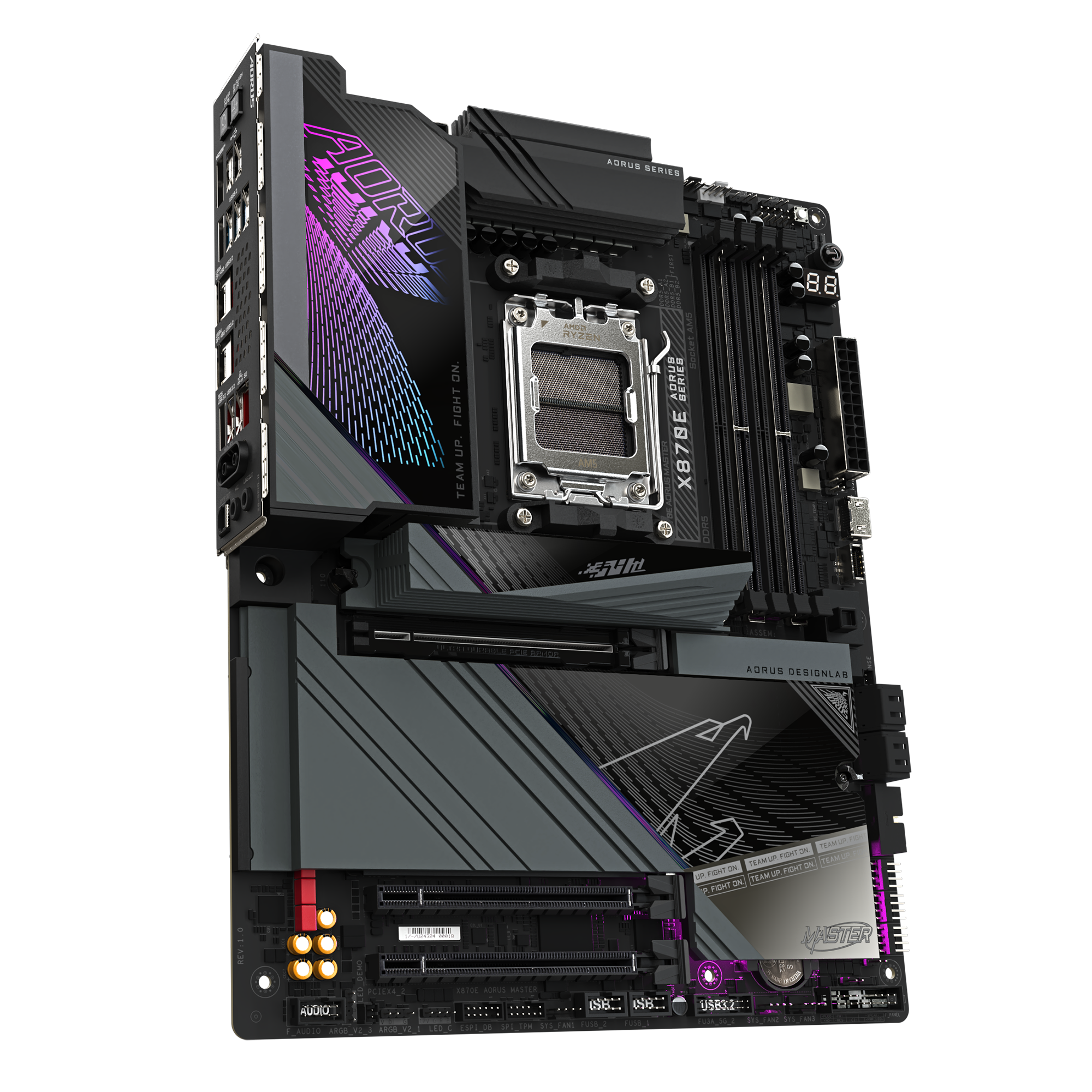

Gigabyte X870E AORUS MASTER

�� Gigabyte X870E AORUS MASTER – ATX AM5 Motherboard ⚙️ Processor & Chipset CPU Socket: AMD AM5 – Supports Ryzen™ 7000 / 8000 / 9000 Series Chipset: AMD X870E �� Memory 4 × DDR5 DIMM slots (dual channel), up to 256 GB Memory Speeds: Up to 8600 MT/s (OC) with AMD EXPO™ �� Storage & Expansion M.2 Slots: 3 × PCIe 5.0 ×4 1 × PCIe 4.0 ×4 SATA Ports: 4 × SATA 6 Gb/s PCIe Slots: • 1 × PCIe 5.0 ×16 (reinforced UD Slot X) • 1 × PCIe 4.0 ×4 • 1 × PCIe 3.0 ×4 �� Connectivity LAN: 5 GbE Ethernet Wireless: Wi‑Fi 7 (802.11be) Bluetooth 5.3 with ultra‑gain antenna USB4: 2 × USB4 Type-C (40 Gbps DisplayPort Alt) ��️ Display Outputs 1 × HDMI 2.1 Sensor Panel Link: Internal HDMI output for chassis screen �� USB Interfaces Rear I/O: 4 × USB 3.2 Gen2, 4 × USB 3.2 Gen1, 2 × USB2.0, plus 2 × USB4 Type-C Internal Headers: 1 × USB3.2 Gen2x2 Type-C, additional USB3/2.0 headers �� Audio Realtek® ALC1220 – 7.1‑channel HD audio with audiophile capacitors ❄️ Power & Cooling VRM: Digital 16 2 2 phase with 110 A Smart Power Stages Thermal features: VRM Thermal Armor, M.2 Thermal Guard XL, DDR Wind Blade active cooling Fan Headers: Smart Fan 6 with 8 × PWM/DC fan headers ��️ Unique Features Q‑Flash Plus, Debug LEDs, onboard power/reset buttons Magnetic M.2 EZ‑Match, screwless EZ‑Latch for PCIe/M.2 RGB Headers: 1 × RGB, 4 × ARGB Gen2 �� Form Factor ATX – 305 × 244 mm
