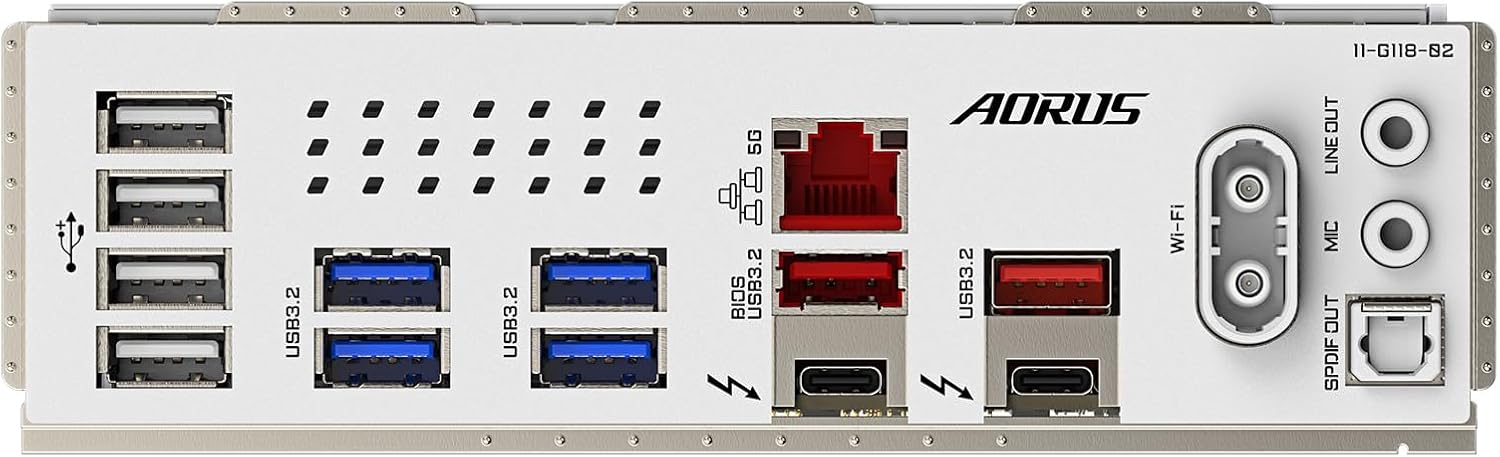

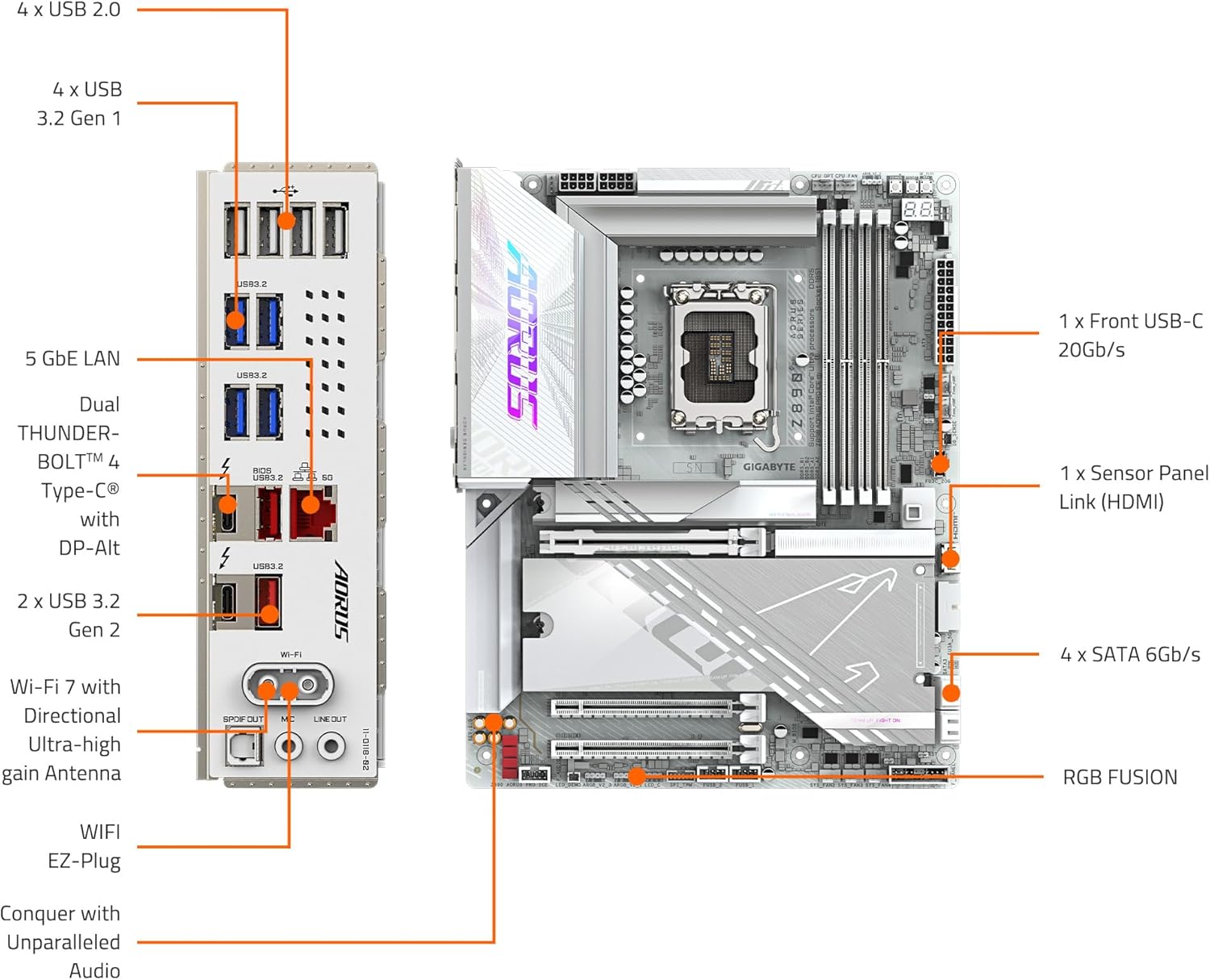

��️ Specifications (Formatted) ��️ CPU & Chipset Socket: LGA 1851 Chipset: Intel Z890 Supported Processors: Intel® Core™ Ultra Series �� Memory Memory Type: DDR5 Memory Slots: 4 x DIMM Max Memory: Up to 256GB Memory Speed: Up to 9500 MT/s (OC) Dual Channel Support: Yes Special Features: ECC (non-ECC mode), XMP, CUDIMM, Intel EXPO support �� Expansion Slots PCIe x16: 1 x PCIe 5.0 x16 slot (CPU) PCIe x4: 1 x PCIe 4.0 x4 slot (Chipset) PCIe x1: 1 x PCIe 4.0 x1 slot (Chipset) �� Storage M.2 Slots: 1 x PCIe 5.0 x4 (CPU) 1 x PCIe 4.0 x4 (CPU) 3 x PCIe 4.0 x4/x2 (Chipset, includes SATA support) SATA Ports: 4 x SATA 6Gb/s RAID Support: RAID 0, 1, 5, 10 (for NVMe and SATA) �� Networking LAN: Realtek® 5GbE LAN WiFi: Intel® WiFi 7 (802.11be) Bluetooth: Bluetooth 5.4 �� USB Connectivity Thunderbolt 4: 2 x USB4® Type-C® (rear) USB 3.2 Gen 2 Type-A: 2 ports (rear) USB 3.2 Gen 1: 6 ports (4 rear, 2 internal) USB 2.0: 8 ports (4 rear, 4 internal) �� Audio Audio Codec: Realtek® ALC1220 Channel Support: 2/4/5.1/7.1-channel HD Audio Special Features: DSD Audio, S/PDIF Out ��️ Internal I/O Connectors 2 x 8-pin ATX 12V Power Connectors 1 x 24-pin ATX Main Power Connector 5 x M.2 Sockets 4 x SATA Ports CPU/Water Pump/Chassis Fan Headers Addressable RGB Gen2 and RGB Strip Headers USB Type-C®, USB 3.2, USB 2.0 Headers Trusted Platform Module (TPM) Header Q-Flash Plus button �� Form Factor Form Factor: ATX Dimensions: 30.5 cm x 24.4 cm OS Support: Windows 11 64-bit
