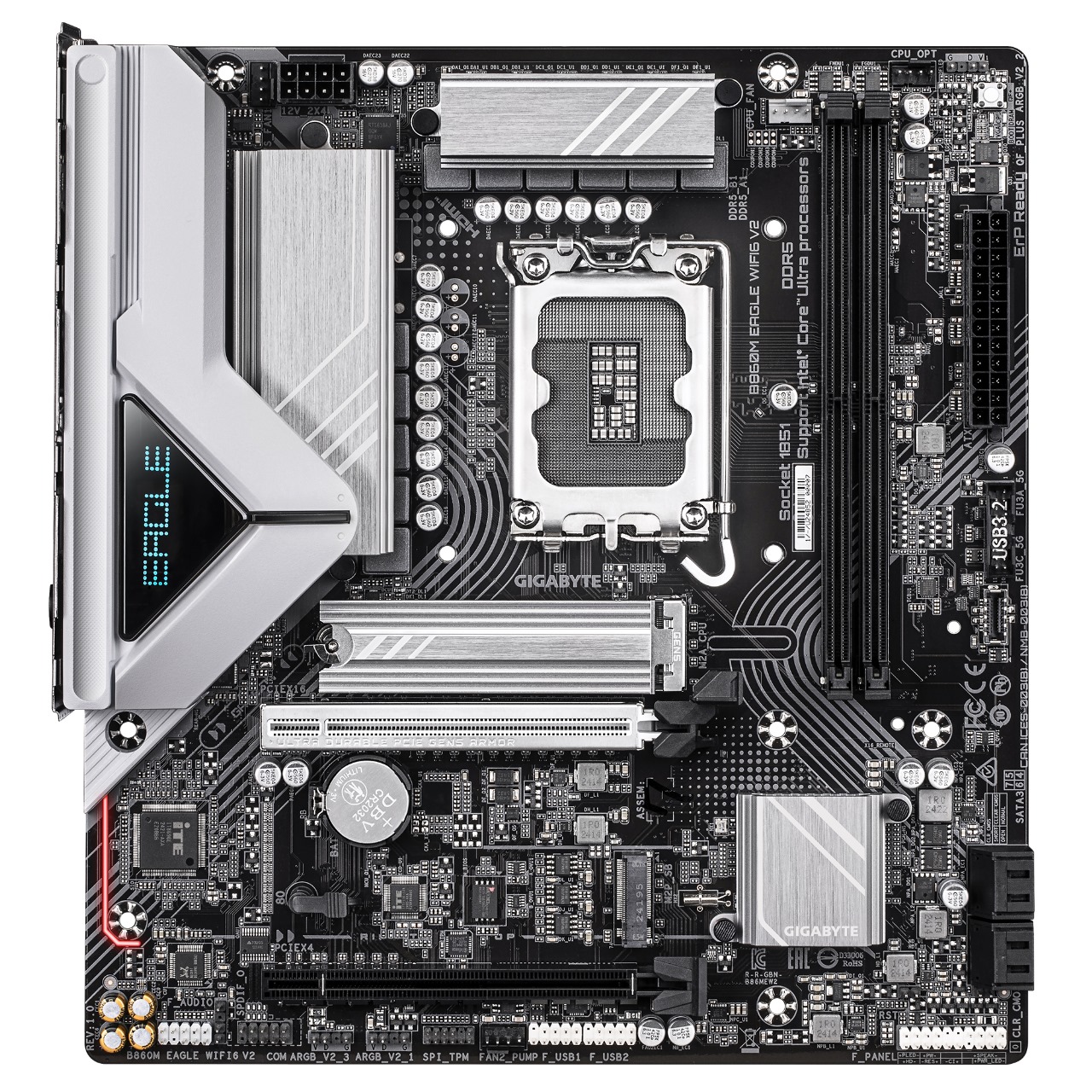

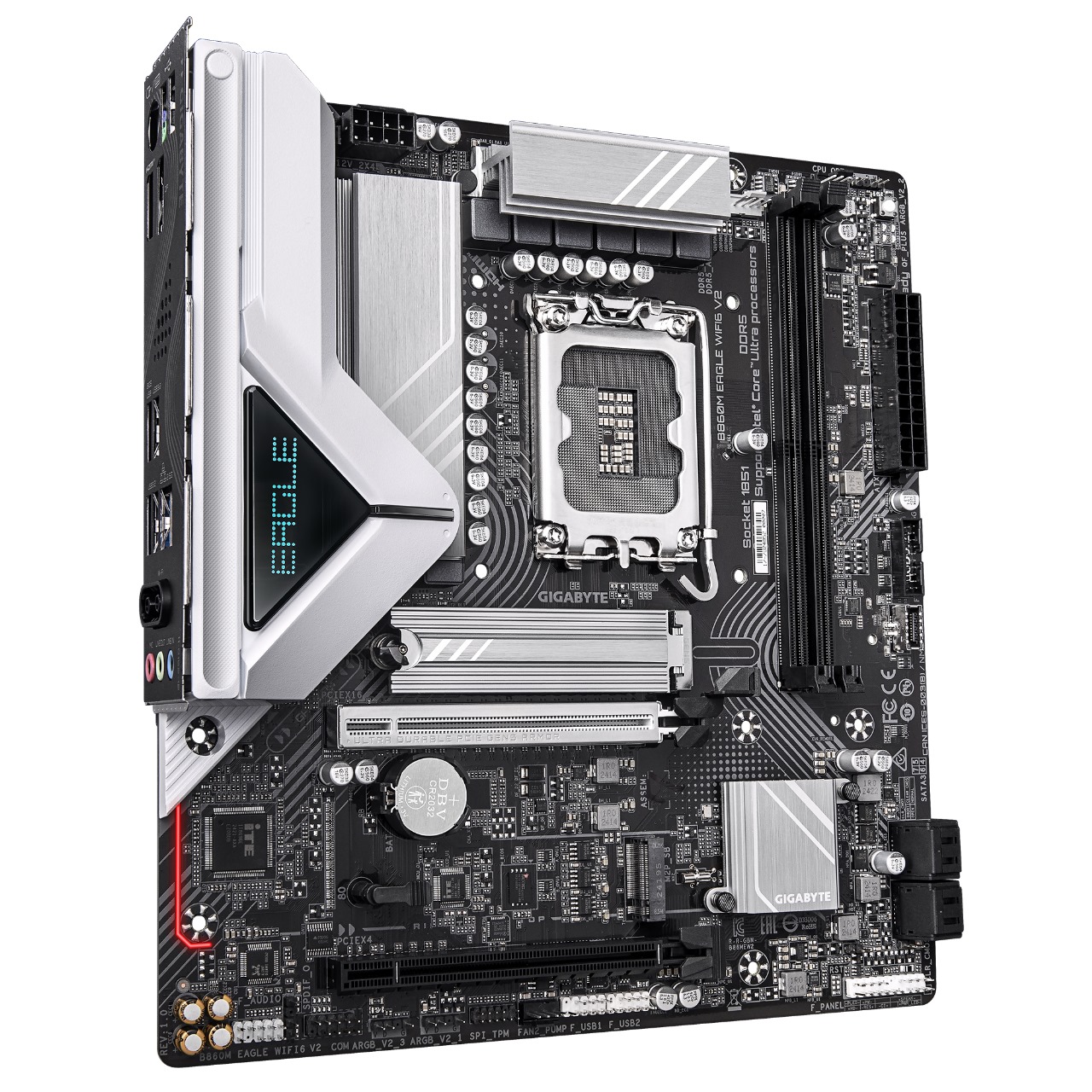

Gigabyte B860M EAGLE WIF6 V2

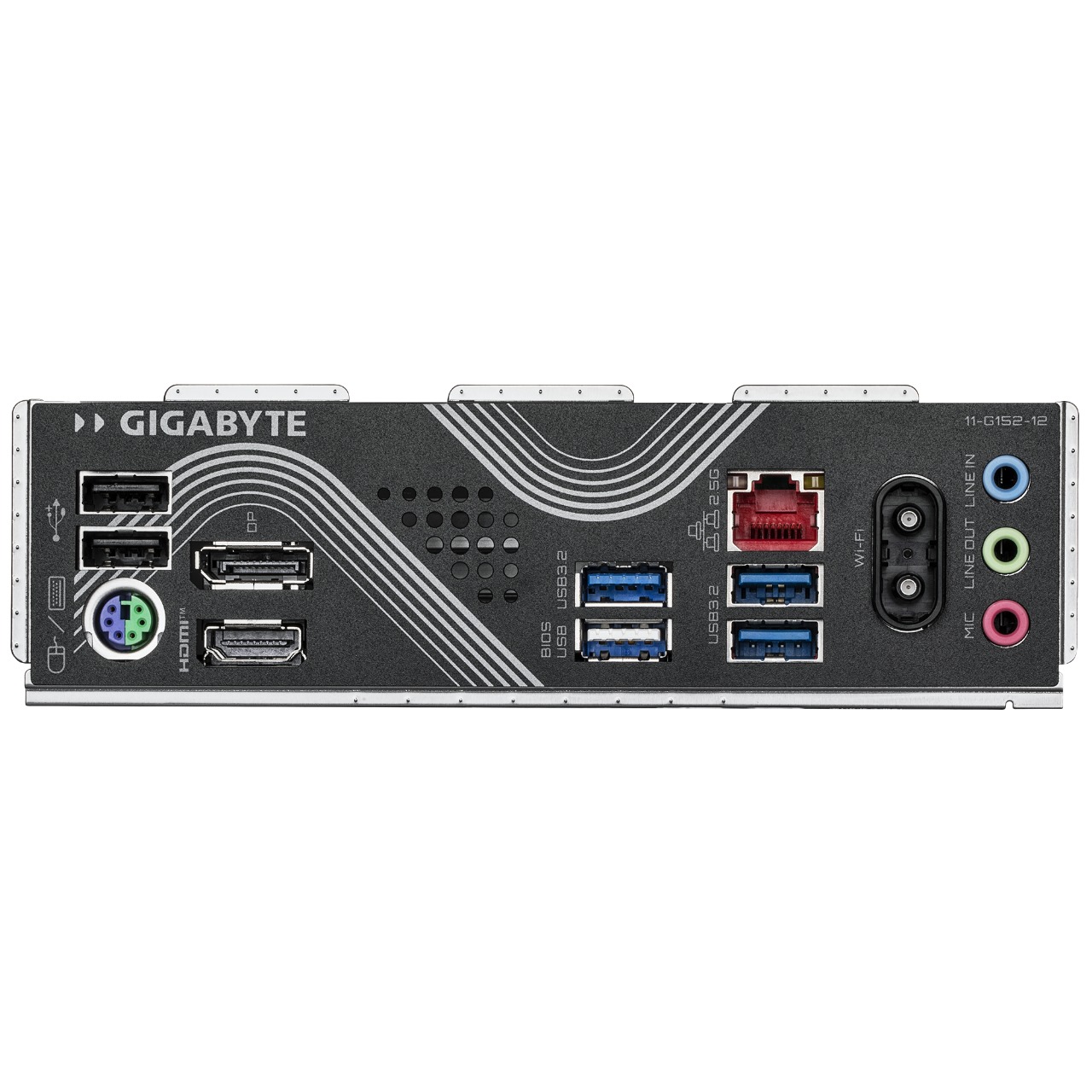

�� CPU & Chipset Socket: LGA1851, supports Intel® Core™ Ultra processors Chipset: Intel® B860 Express L3 Cache: Varies with CPU �� Memory 2× DDR5 DIMM slots, up to 128 GB (64 GB per DIMM) Supported speeds: DDR5 9066(O.C.) down to 5600 MT/s Dual-channel architecture Supports ECC un-buffered (non-ECC mode) & non-ECC un-buffered modules XMP profile support �� Onboard Graphics 1× HDMI 2.1 (4096×2160 @ 60 Hz, HDCP 2.3) 1× DisplayPort 2.1 (3840×2160 @ 144 Hz) Graphics output depends on CPU capabilities �� Audio Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel support via software S/PDIF Out support �� Networking Realtek® 2.5GbE LAN Realtek® Wi-Fi 6 RTL8851BE Bluetooth 5.3 Supports 2.4/5 GHz, 802.11 a/b/g/n/ac/ax, 80 MHz bandwidth ⚡ Expansion Slots CPU: 1× PCIe 5.0 x16 slot (graphics card or NVMe SSD only) Chipset: 1× PCIe 4.0 x16 slot (x4 mode) �� Storage 1× M.2 PCIe 5.0 x4/x2 (CPU) 1× M.2 PCIe 4.0 x4/x2 (chipset) 4× SATA 6Gb/s Supports RAID 0, 1, 5, 10 for SATA drives �� USB Ports Rear: 3× USB 3.2 Gen1 3× USB 2.0 Internal: 1× USB-C 3.2 Gen1 header 1× USB 3.2 Gen1 header (2 ports) 2× USB 2.0 headers (4 ports total) �� Internal Connectors 24-pin ATX 8-pin 12V power CPU fan, pump, system fan headers 3× ARGB Gen2 LED headers 2× M.2 sockets, 4× SATA Front panel & audio, S/PDIF Out USB-C & USB 3.2 Gen1 headers TPM header, serial port header Q-Flash Plus, reset & clear CMOS jumpers �� Rear I/O 1× PS/2 keyboard/mouse 1× HDMI, 1× DisplayPort 3× USB 3.2 Gen1 3× USB 2.0 2× Wi-Fi antenna connectors 1× RJ-45 LAN 3× audio jacks �� Other Features iTE® I/O controller chip Voltage, temperature, fan, and water flow monitoring Fan fail warning & control (depending on installed fan/pump) AMI UEFI BIOS, Q-Flash, Q-Flash Plus GIGABYTE Control Center (features vary by model) Norton® Internet Security (OEM) LAN bandwidth management software �� Operating System Support Windows 11 64-bit Windows 10 64-bit Intel® NPU driver supported only on Windows 11 �� Form Factor Micro-ATX: 24.4 cm × 22.5 cm
