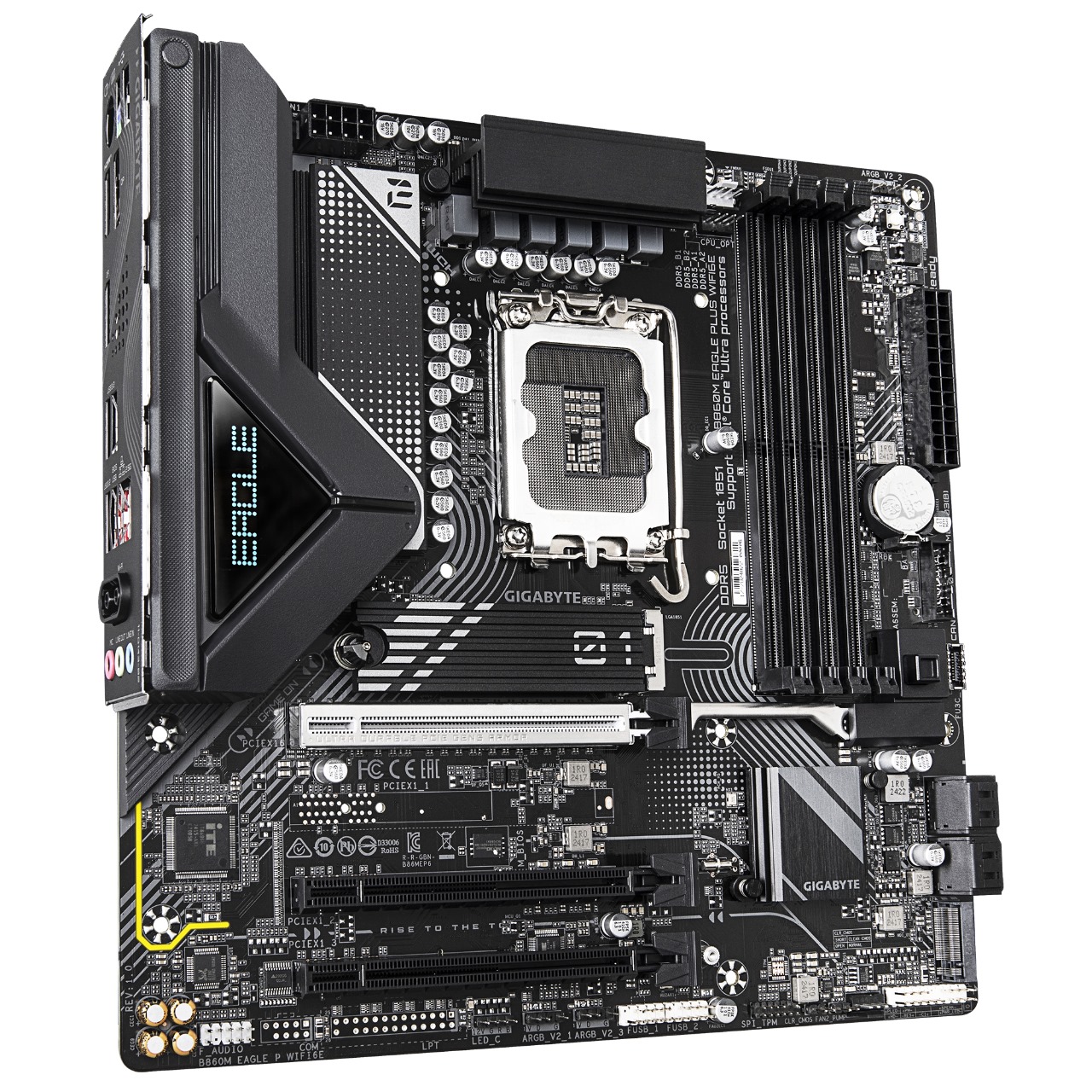

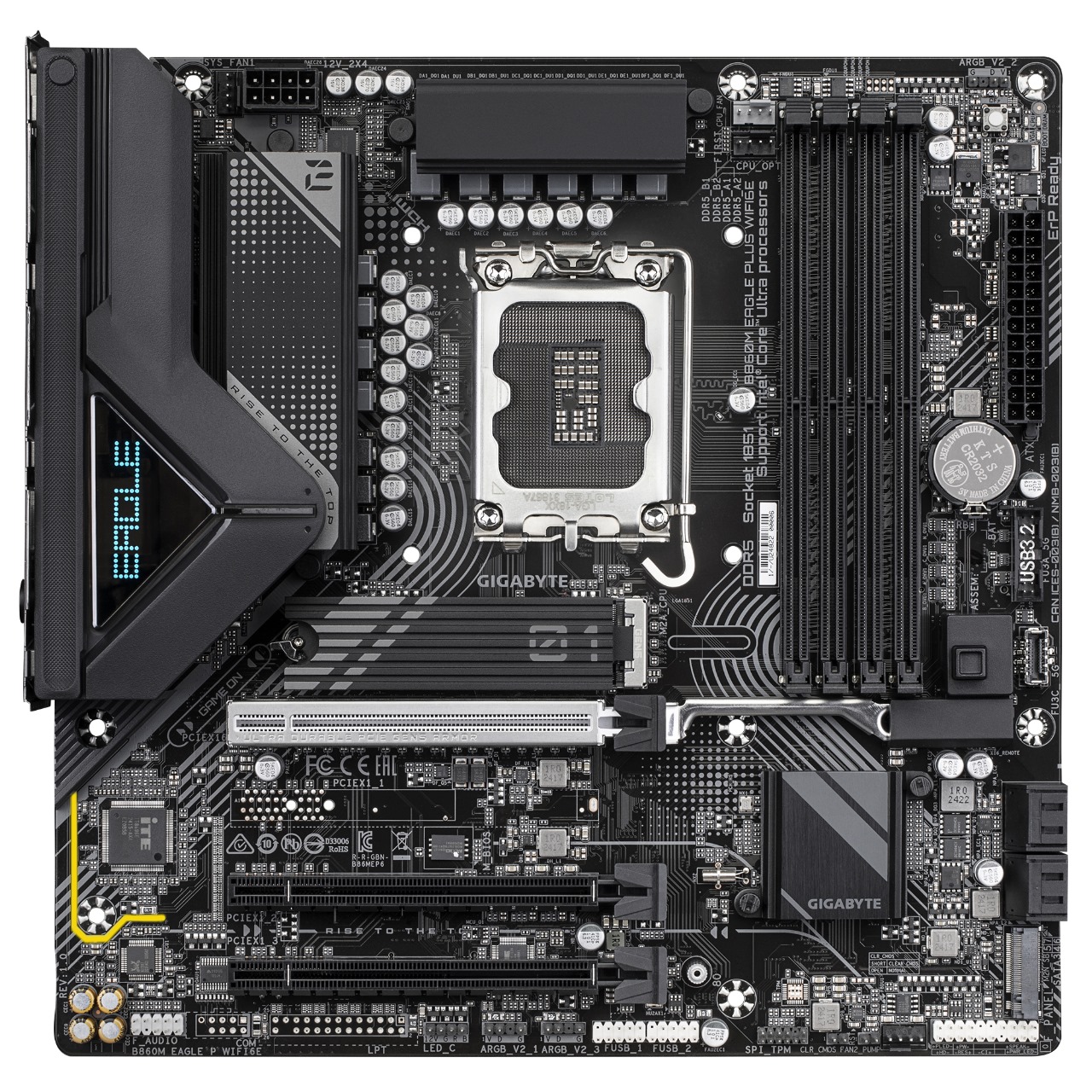

Gigabyte B860M EAGLE P WIFI6E

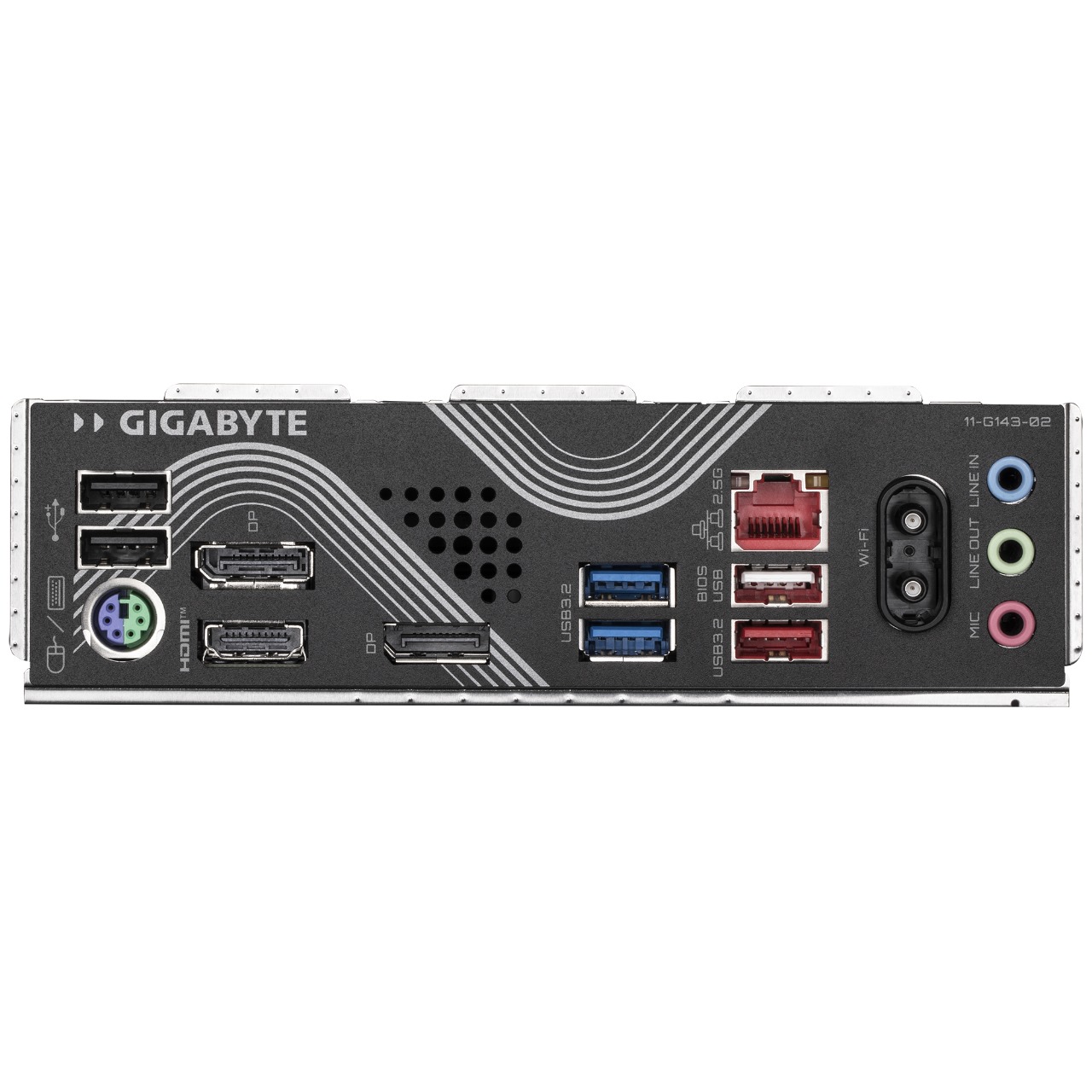

�� CPU & Chipset Socket: LGA1851, supports Intel® Core™ Ultra Processors Chipset: Intel® B860 Express L3 Cache: Varies with CPU �� Memory 4 × DDR5 DIMM slots, up to 256 GB total (64 GB per DIMM) Supported speeds: DDR5 9066(O.C.) down to 5600 MT/s Dual-channel architecture Supports: ECC un-buffered DIMMs (operate in non-ECC mode) Non-ECC un-buffered DIMMs Extreme Memory Profile (XMP) CUDIMM memory modules Memory support depends on CPU & configuration �� Integrated Graphics Ports: 1 × HDMI 2.1: up to 4096×2160 @ 60 Hz (HDCP 2.3) 2 × DisplayPort 2.1: up to 3840×2160 @ 144 Hz Supports up to triple-display simultaneously Graphics capabilities vary with CPU �� Audio Realtek® Audio CODEC, High Definition Audio Supports 2/4/5.1/7.1-channel audio S/PDIF output via software configuration �� Networking Realtek® 2.5GbE LAN (2.5G/1G/100M) Wireless & Bluetooth (depending on board revision): Intel® Wi-Fi 6E AX211 (rev 1.0/2.0): Wi-Fi 6E Bluetooth 5.3 Realtek® Wi-Fi 6E RTL8852CE (rev 1.1/2.1): Wi-Fi 6E Bluetooth 5.3 Supports 2.4/5/6 GHz bands, 11ax 160 MHz �� Expansion Slots CPU PCIe: 1 × PCIe 5.0 x16 slot (PCIEX16) — use for GPU or NVMe SSD Chipset PCIe: 2 × PCIe 4.0 x16 slots running at x1 (PCIEX1_2, PCIEX1_3) �� Storage Interfaces CPU-connected M.2: 1 × M.2 PCIe 5.0 x4/x2 (M2A_CPU) Chipset-connected: 1 × M.2 PCIe 4.0 x4/x2 (M2N_SB) 4 × SATA 6Gb/s ports Supports RAID 0, 1, 5, 10 for SATA drives ⚡ USB Connectivity Internal: 1 × USB-C 3.2 Gen1 header 1 × USB 3.2 Gen1 header (2 ports) 2 × USB 2.0 headers (4 ports) Rear I/O: 1 × USB 3.2 Gen2 Type-A (red) 2 × USB 3.2 Gen1 3 × USB 2.0 ��️ Internal Connectors 1 × 24-pin ATX 1 × 8-pin ATX 12V power connectors CPU & system fan headers, pump headers 3 × addressable RGB Gen2 headers 1 × RGB header 2 × M.2 connectors 4 × SATA 6Gb/s connectors Front panel & audio headers, USB headers TPM header, Q-Flash Plus button, reset & Clear CMOS jumpers �� Rear I/O Ports 1 × PS/2 keyboard/mouse 1 × HDMI port* 2 × DisplayPorts* 1 × USB 3.2 Gen2 Type-A (red) 2 × USB 3.2 Gen1 3 × USB 2.0 2 × Wi-Fi antenna connectors 1 × RJ-45 LAN port 3 × audio jacks *Actual display support may depend on CPU ⚙️ Monitoring & BIOS Voltage, temperature, fan speed, water flow detection Fan fail warning & speed control BIOS: 256 Mbit flash, AMI UEFI BIOS �� Unique Features GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup �� Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management utility ��️ Operating System Support Windows 11 64-bit Windows 10 64-bit (Intel® NPU driver supported only on Windows 11) �� Form Factor Micro-ATX, 24.4 cm × 24.4 cm
