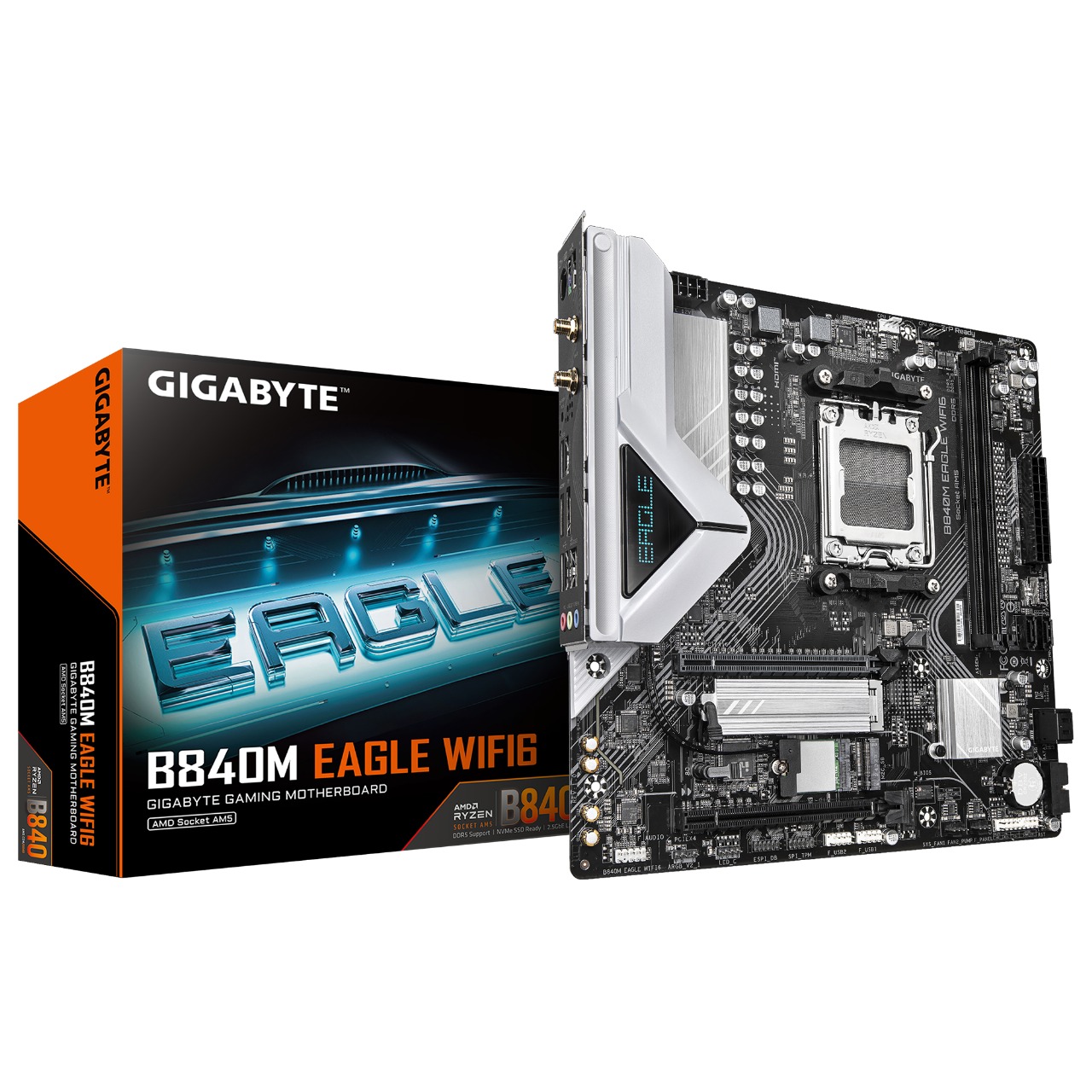

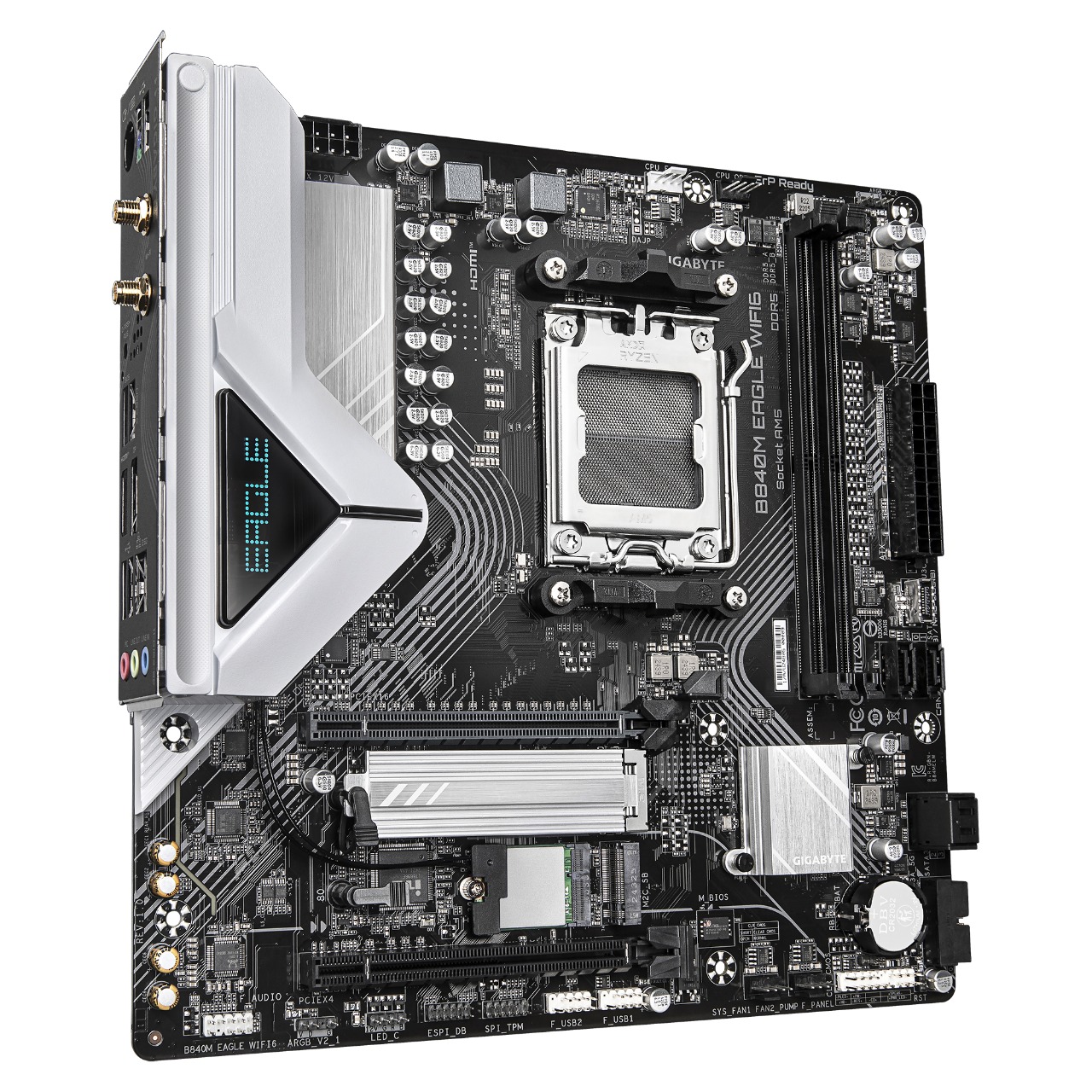

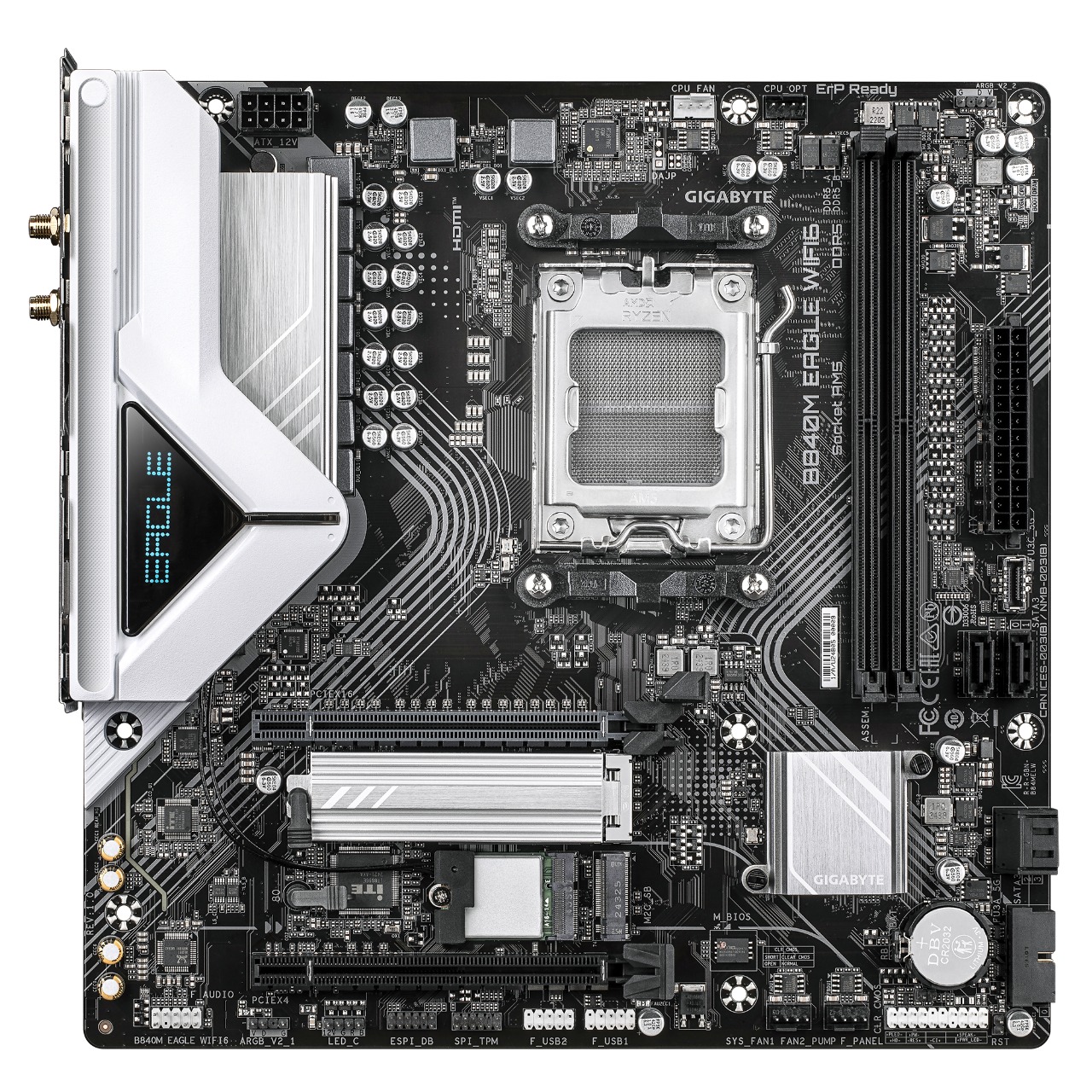

Gigabyte B840M EAGLE WIFI6

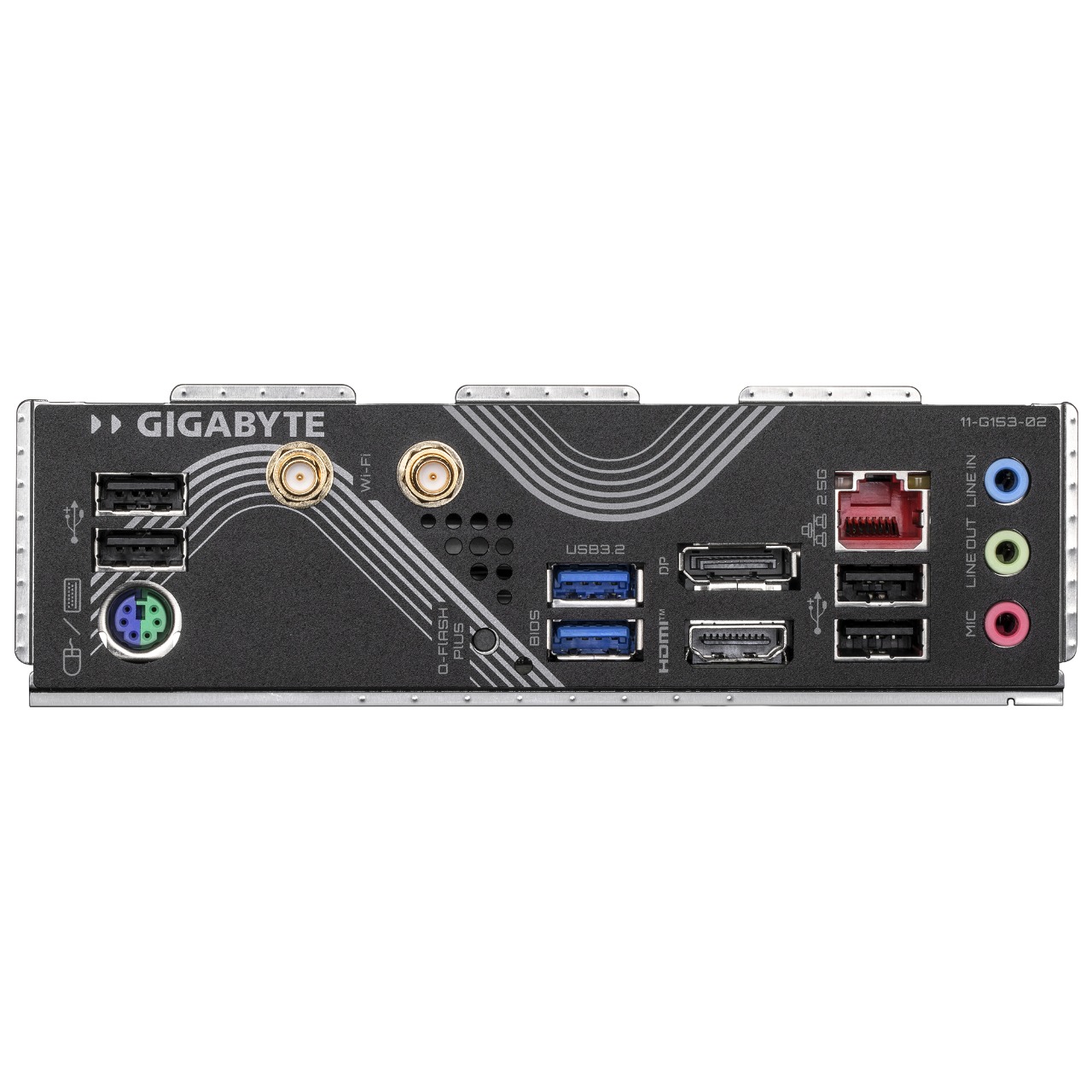

Gigabyte B840 Micro ATX Motherboard – Specifications CPU Support AMD Socket AM5 Compatible with: AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series (Check Gigabyte support list for latest CPUs) Chipset AMD B840 Memory 2 × DDR5 DIMM sockets, up to 128GB (64GB per DIMM) Dual-channel architecture Supported speeds: DDR5 7600(O.C.) → 4400 MT/s Supports AMD EXPO™ and Intel XMP profiles Supports non-ECC unbuffered DIMM Graphics (Integrated, CPU dependent) 1 × DisplayPort 1.4 – up to 3840×2160 @144Hz, HDR 1 × HDMI 2.1 – up to 4096×2160 @60Hz, HDR, HDCP 2.3 Audio Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1 channel (configurable via software) Networking LAN: Realtek® 2.5GbE (2.5G/1G/100M) Wi-Fi: Realtek® Wi-Fi 6 RTL8851BE Supports 2.4/5 GHz, 11ax (80MHz) Bluetooth® 5.3 Expansion Slots 1 × PCIe x16 (CPU): Ryzen™ 9000/7000 → PCIe 4.0 x16 Ryzen™ 8000 Phoenix 1 → PCIe 4.0 x8 Ryzen™ 8000 Phoenix 2 → PCIe 4.0 x4 1 × PCIe x16 (Chipset): PCIe 3.0 x4 Storage M.2 Slots: 1 × PCIe 4.0 x4/x2 (CPU) 1 × PCIe 3.0 x2 (Chipset) SATA: 4 × SATA 6Gb/s RAID Support: NVMe SSD: RAID 0/1/5/10 (RAID 5 only on Ryzen 9000) SATA: RAID 0/1/10 USB Connectivity Back Panel: 2 × USB 3.2 Gen 1 4 × USB 2.0 Internal: 1 × USB Type-C® (USB 3.2 Gen 1) 2 × USB 3.2 Gen 1 4 × USB 2.0 Internal Connectors 24-pin ATX 8-pin CPU power CPU fan pump headers System fan pump headers 2 × ARGB Gen2 headers 1 × RGB header 2 × M.2 sockets 4 × SATA 6Gb/s Front panel audio headers TPM header Reset jumper, Clear CMOS jumper Back Panel I/O 1 × PS/2 combo port 4 × USB 2.0 2 × USB 3.2 Gen 1 1 × HDMI 2.1 1 × DisplayPort 1.4 1 × RJ-45 2.5GbE 2 × Wi-Fi antenna connectors 3 × Audio jacks Q-Flash Plus button Other Features Gigabyte Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup Norton® Internet Security (OEM) Form Factor Micro ATX (24.4 × 24.4 cm)
