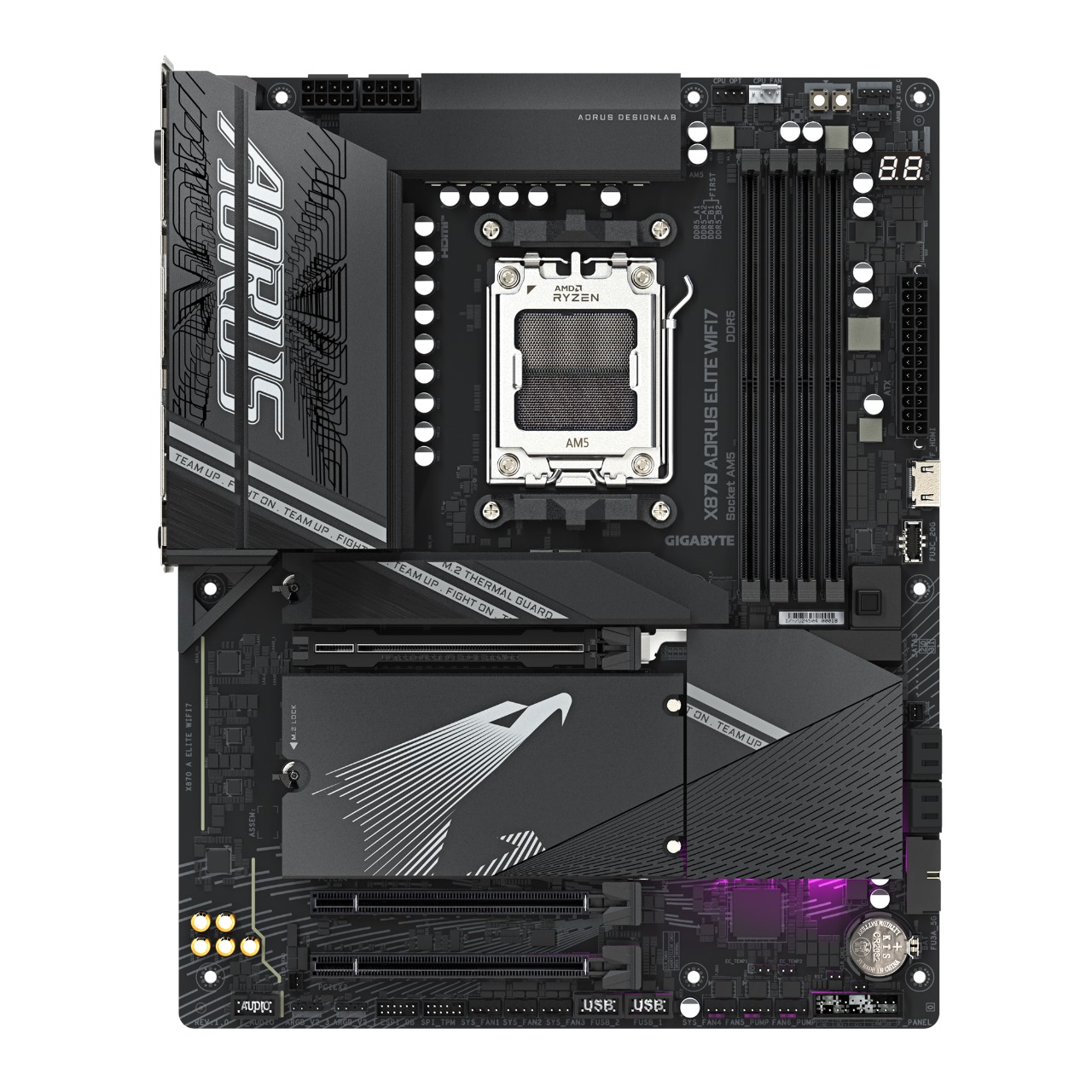

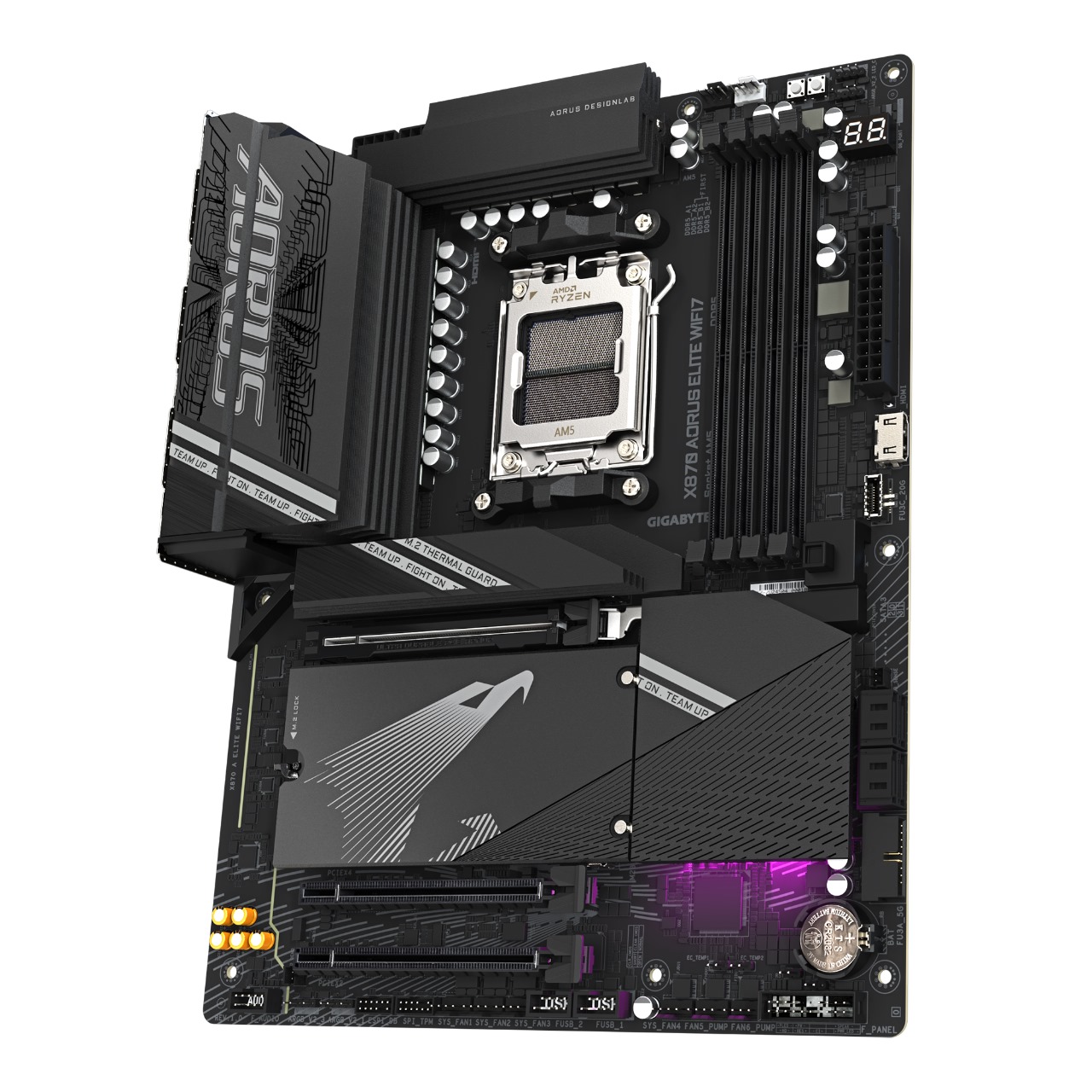

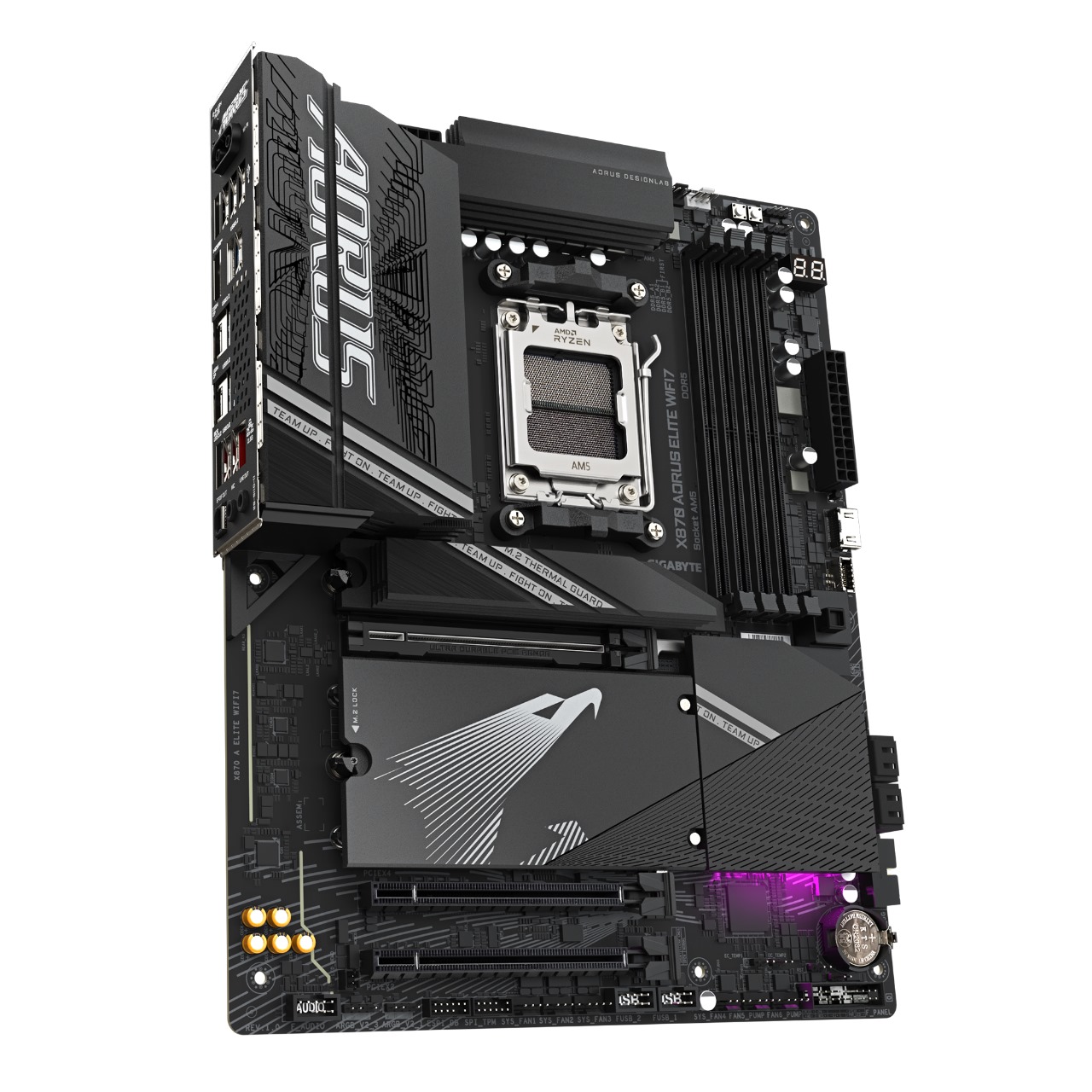

Gigabyte X870 AORUS ELITE WIFI7 1.1

�� CPU & Chipset Socket: AMD AM5 – supports Ryzen™ 9000, 8000, 7000 Series CPUs Chipset: AMD X870 �� Memory 4 × DDR5 DIMM slots, dual channel, up to 256 GB Supports DDR5 speeds up to 8200 MT/s (OC) AMD EXPO™ & XMP profiles supported �� Graphics & Display Outputs Integrated AMD Radeon™ Graphics (depends on CPU) Back Panel Display: 2 × USB4® Type-C (DP1.4, 3840×2160@240 Hz) 1 × HDMI 2.1 (4096×2160@60 Hz) Front HDMI: 1 × HDMI 1.4 (1920×1080@30 Hz) Supports up to 4 displays simultaneously �� Audio Realtek® ALC1220 codec, supports 2/4/5.1/7.1-channel HD Audio DSD audio on rear line-out, Optical S/PDIF out �� Networking Realtek® 2.5 GbE LAN Wi-Fi 7 & Bluetooth 5.4 (MediaTek MT7925 or Realtek RTL8922AE, depending on PCB revision) Note: Wi-Fi 7 features require Windows 11 SV3; no support for Win10 �� Storage M.2 Slots: M2A_CPU: PCIe 5.0 x4/x2 (supports 25110/22110/2580/2280 SSDs) M2B_CPU & M2C_CPU: PCIe 5.0 x4/x2 (disabled with Ryzen 8000 Phoenix CPUs) M2D_SB: PCIe 4.0 x4/x2 4 × SATA 6Gb/s ports RAID Support: NVMe RAID 0/1/5/10 (RAID 5 for Ryzen 9000 only) SATA RAID 0/1/10 ⚙️ Expansion Slots PCIe: 1 × PCIe 5.0 x16 (CPU, shared bandwidth with M2B/M2C) 1 × PCIe 4.0 x4 (Chipset, disabled if M2D_SB used) 1 × PCIe 3.0 x2 �� USB Ports Rear Panel: 2 × USB4® Type-C (DP Alt mode) 2 × USB 3.2 Gen2 Type-A 4 × USB 3.2 Gen1 4 × USB 2.0/1.1 Internal Headers: 1 × USB 3.2 Gen2x2 Type-C 2 × USB 3.2 Gen1 4 × USB 2.0/1.1 �� Cooling & RGB Power: 24-pin ATX, 2 × 8-pin ATX12V Headers: 1 × CPU fan, 1 × CPU pump, 4 × system fan, 2 × system pump RGB: 3 × addressable Gen2, 1 × RGB header ��️ Features Q-Flash & Q-Flash Plus BIOS update GIGABYTE Control Center (GCC) Integrated I/O shield Noise detection, advanced fan & thermal monitoring TPM header, power/reset buttons, Clear CMOS, Q-Flash Plus button �� Form Factor & OS ATX (30.5 × 24.4 cm) OS Support: Windows 11 64-bit
