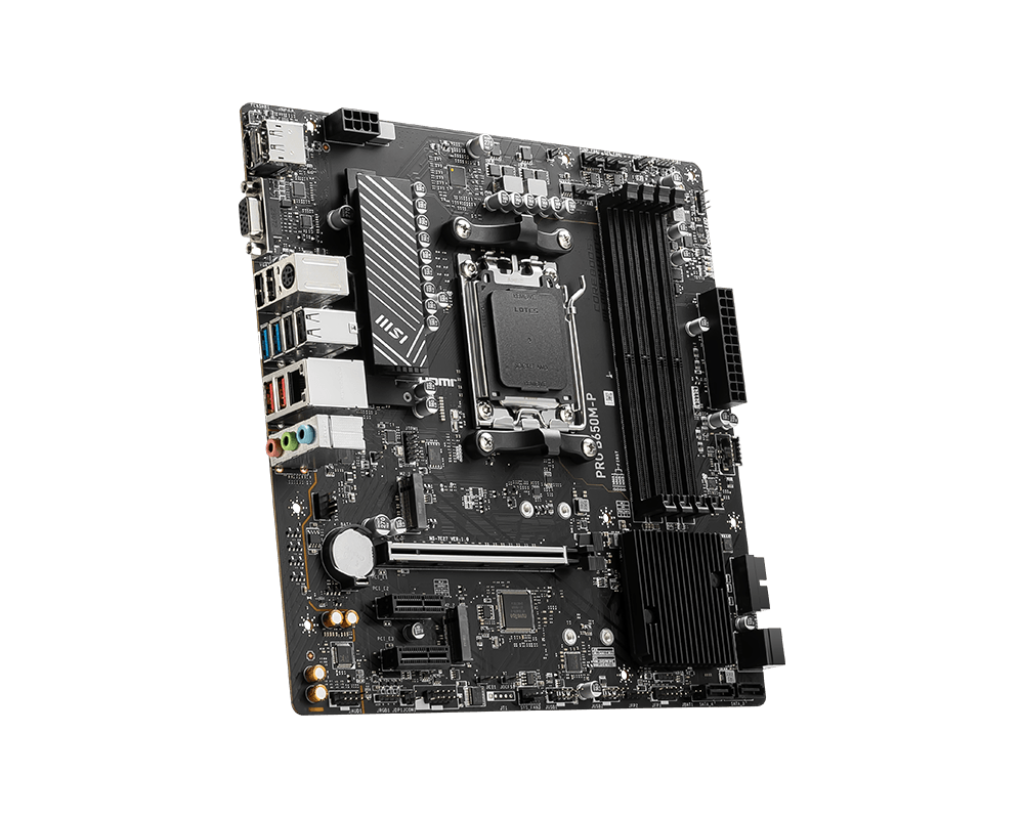

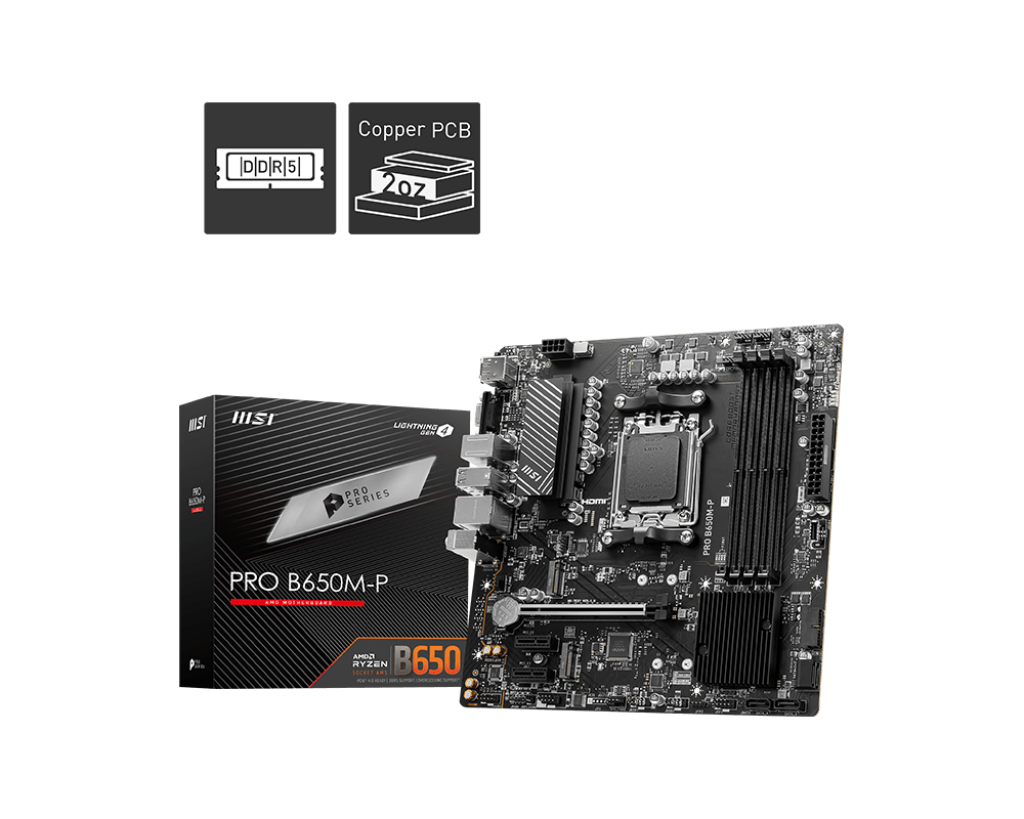

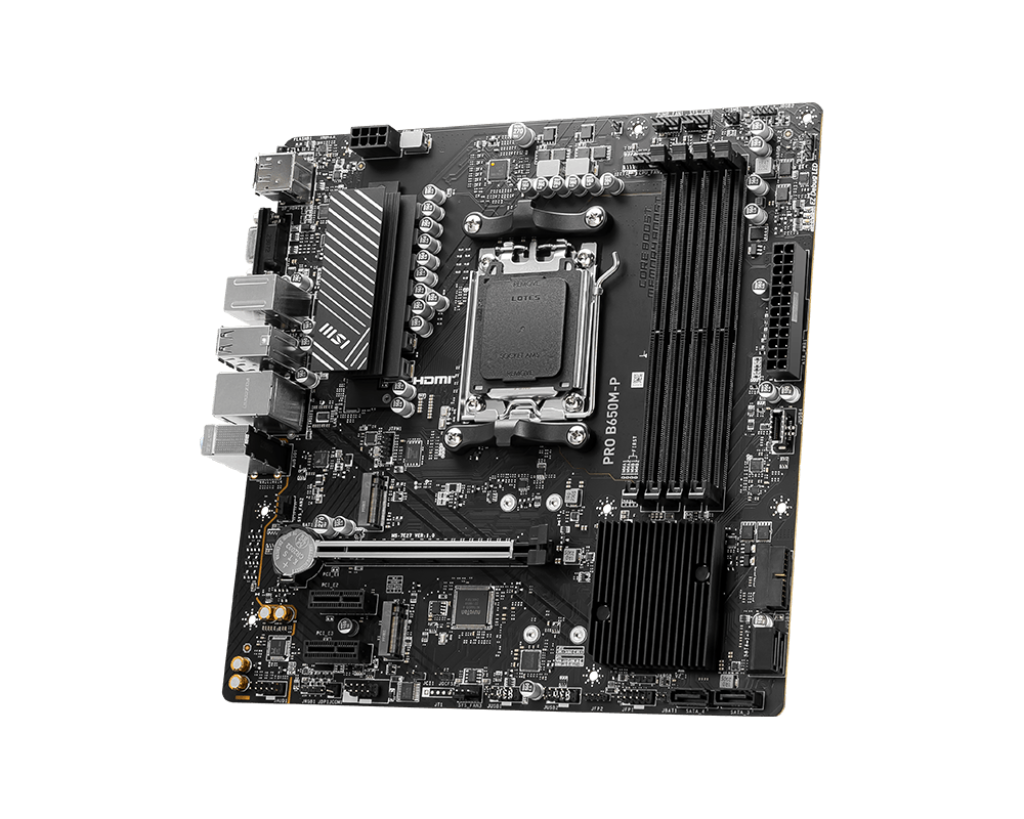

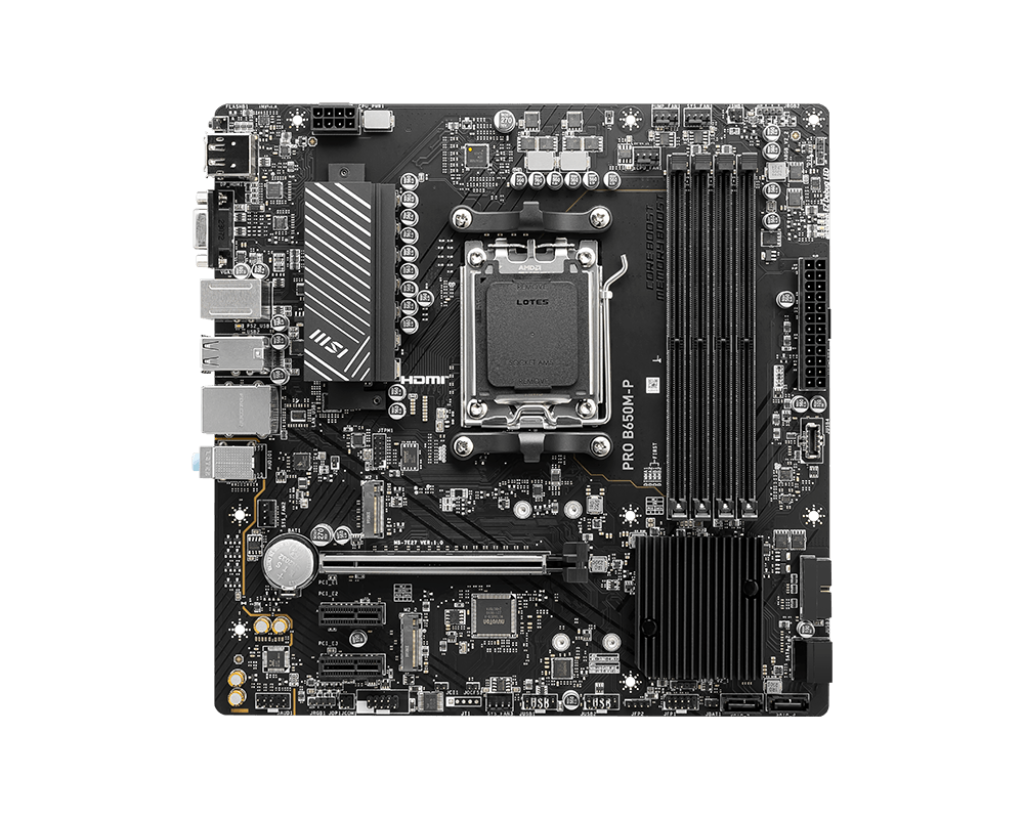

MSI PRO B650M-P

�� AMD B650 mATX Motherboard – Specifications ⚙️ Chipset & CPU Support Chipset: AMD B650 CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket: AM5 �� Memory Slots: 4 × DDR5 Max Capacity: 256GB Supported Speeds: 7200 (OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) MHz OC Frequency Guide: 1DPC 1R: Up to 7200 MHz 1DPC 2R: Up to 6000 MHz 2DPC 1R: Up to 6000 MHz 2DPC 2R: Up to 5400 MHz Other Features: Dual-channel, Non-ECC, Un-buffered, AMD EXPO support �� Onboard Graphics* 1 × HDMI™ 2.1 – Max 4K @ 60Hz 1 × DisplayPort 1.4 – Max 4K @ 60Hz 1 × VGA – Max 1920 × 1200 @ 60Hz * Available only with CPUs that feature integrated graphics. ��️ Expansion Slots 1 × PCIe x16 (from CPU): x16 (Ryzen 9000/7000) x8 (Ryzen 8700/8600/8400) x4 (Ryzen 8500/8300) 2 × PCIe x1 (from chipset) PCI_E2: PCIe 3.0 x1 PCI_E3: PCIe 3.0 x1 �� Audio Codec: Realtek® ALC897 Channels: 7.1 High Definition Audio �� Storage 2 × M.2: M.2_1 (CPU): PCIe 4.0 x4, 2280/2260 M.2_2 (Chipset): PCIe 4.0 x4, 2280/2260 4 × SATA 6Gb/s RAID Support: SATA: RAID 0/1/10 NVMe M.2: RAID 0/1 �� USB Connectivity Rear I/O: 4 × USB 2.0 2 × USB 5Gbps Type-A 2 × USB 10Gbps Type-A Front I/O: 4 × USB 2.0 2 × USB 5Gbps Type-A 1 × USB 10Gbps Type-C �� Networking LAN: Realtek® 8125BG 2.5G LAN ��️ Internal I/O Headers 1 × ATX_PWR (24-pin) 1 × CPU_PWR (8-pin) 1 × CPU Fan, 1 × Pump Fan, 3 × System Fan 2 × Front Panel (JFP) 1 × Chassis Intrusion (JCI) 1 × Front Audio (JAUD) 1 × COM Port (JCOM) 2 × ARGB (JARGB_V2) 2 × RGB LED (JRGB) 1 × TPM 2.0 Header USB headers (4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C) �� LED Features 4 × EZ Debug LEDs �� Back Panel Ports DisplayPort HDMI™ VGA Keyboard / Mouse 2 × USB 2.0 2 × USB 3.2 Gen 1 (5Gbps Type-A) 2 × USB 3.2 Gen 2 (10Gbps Type-A) 1 × 2.5G LAN Audio Jacks Flash BIOS Button �� PCB Form Factor Size: mATX (243.84 × 243.84 mm) �� OS Compatibility Windows® 11 64-bit Windows® 10 64-bit �� Box Contents Motherboard User Guide Accessories (may vary by region)
