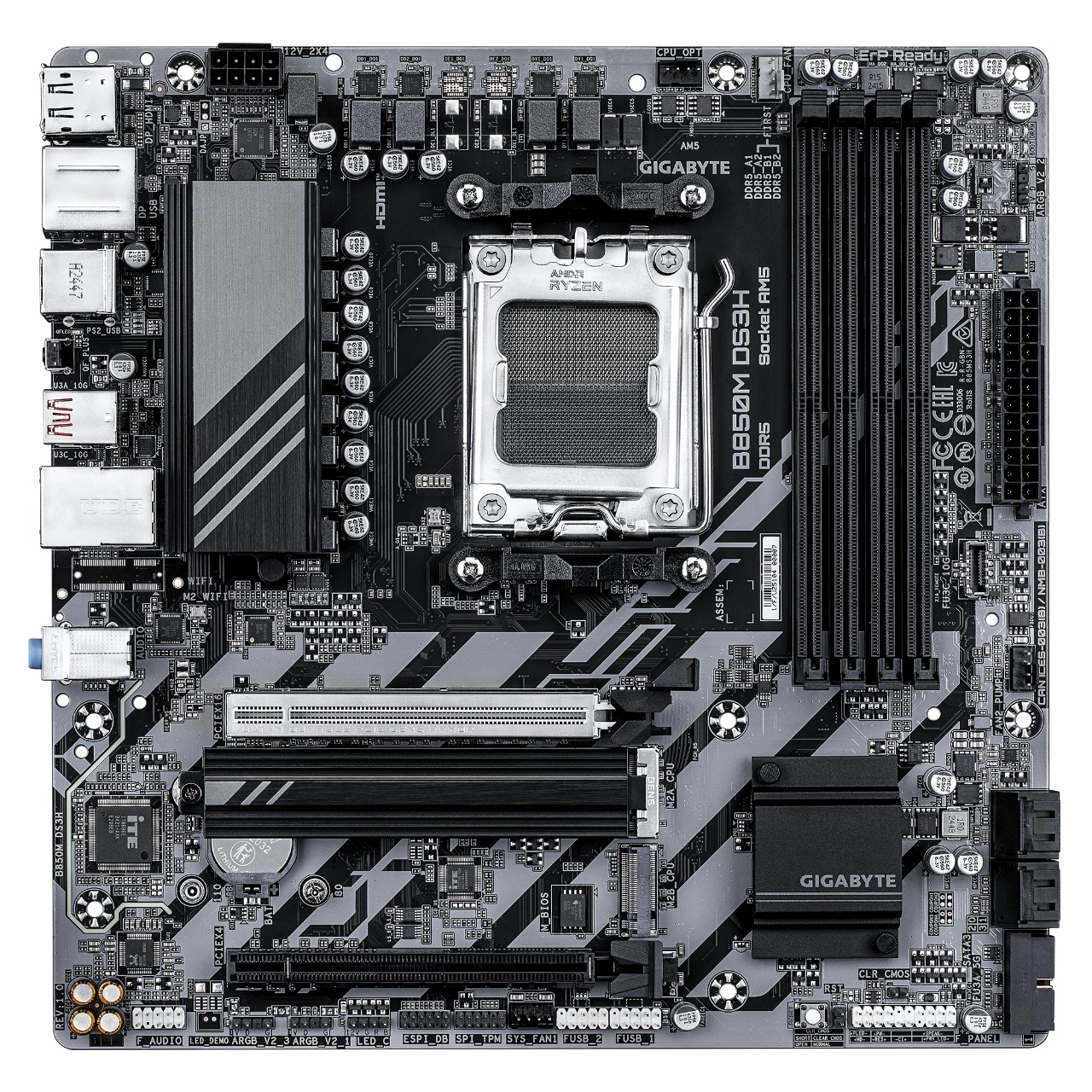

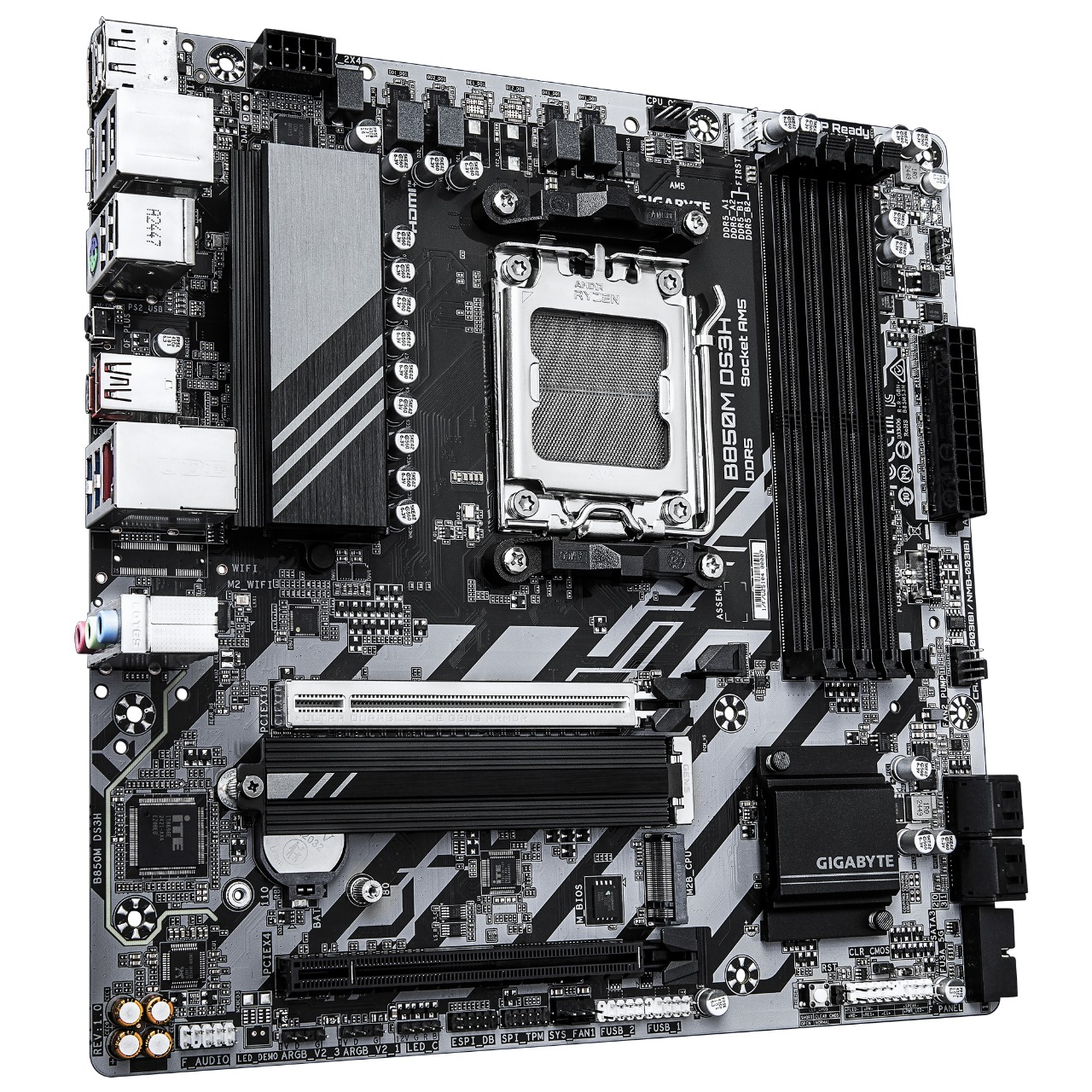

Gigabyte B850M DS3H (rev. 1.0)

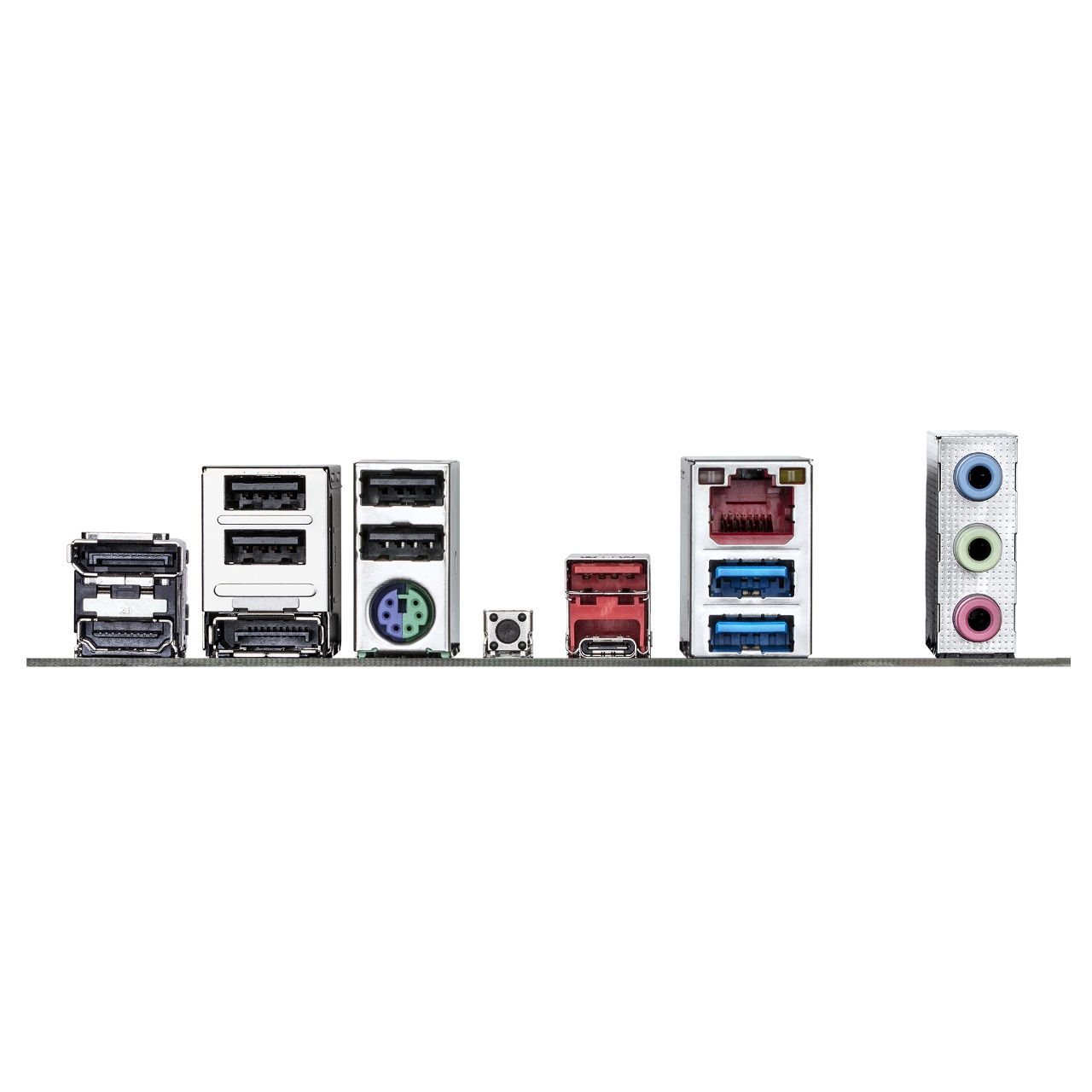

CPU Support AMD Socket AM5 Compatible with: AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series (Check Gigabyte’s CPU support list for updates) Chipset AMD B850 Memory 4 × DDR5 DIMM sockets, up to 256GB (64GB per DIMM) Dual-channel architecture Supported speeds: DDR5 8200(OC) → 4400 MT/s Supports AMD EXPO™ and Intel XMP profiles Non-ECC, unbuffered DIMM support Graphics (Integrated, CPU dependent) 1 × HDMI 2.1 – up to 4096×2160 @60Hz, HDR, HDCP 2.3 2 × DisplayPort 1.4 – up to 3840×2160 @144Hz Triple-display support Audio Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1 channel (configurable via software) Networking LAN: Realtek® 2.5GbE (2.5G/1G/100M) Expansion Slots 1 × PCIe x16 (CPU): Ryzen™ 9000/7000 → PCIe 5.0 x16 Ryzen™ 8000 Phoenix 1 → PCIe 4.0 x8 Ryzen™ 8000 Phoenix 2 → PCIe 4.0 x4 1 × PCIe x16 (Chipset): PCIe 3.0 x4 Storage M.2 Slots: 1 × PCIe 5.0/4.0 (25110/22110/2280/2580) 1 × PCIe 4.0 (22110/2280) SATA: 4 × SATA 6Gb/s RAID Support: NVMe SSD: RAID 0/1/5/10 (RAID 5 only on Ryzen 9000) SATA: RAID 0/1/10 USB Connectivity Back Panel: 1 × USB Type-C® (USB 3.2 Gen 2) 1 × USB 3.2 Gen 2 Type-A (red) 2 × USB 3.2 Gen 1 4 × USB 2.0 Internal: 1 × USB Type-C® (USB 3.2 Gen 2) 2 × USB 3.2 Gen 1 4 × USB 2.0 Internal Connectors 24-pin ATX 8-pin CPU power CPU fan pump headers System fan pump headers 3 × ARGB Gen2 headers, 1 × RGB header 2 × M.2 slots 4 × SATA 6Gb/s Front panel audio headers USB headers: Type-C, USB 3.2 Gen 1, USB 2.0 TPM header Reset button, reset jumper, Clear CMOS jumper Back Panel I/O 1 × HDMI 2.1 2 × DisplayPort 1.4 1 × PS/2 combo port 1 × USB Type-C® (USB 3.2 Gen 2) 1 × USB 3.2 Gen 2 Type-A (red) 2 × USB 3.2 Gen 1 4 × USB 2.0 1 × RJ-45 2.5GbE LAN 3 × audio jacks Q-Flash Plus button Other Features Gigabyte Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup Norton® Internet Security (OEM) Form Factor Micro ATX (24.4 × 24.4 cm)
