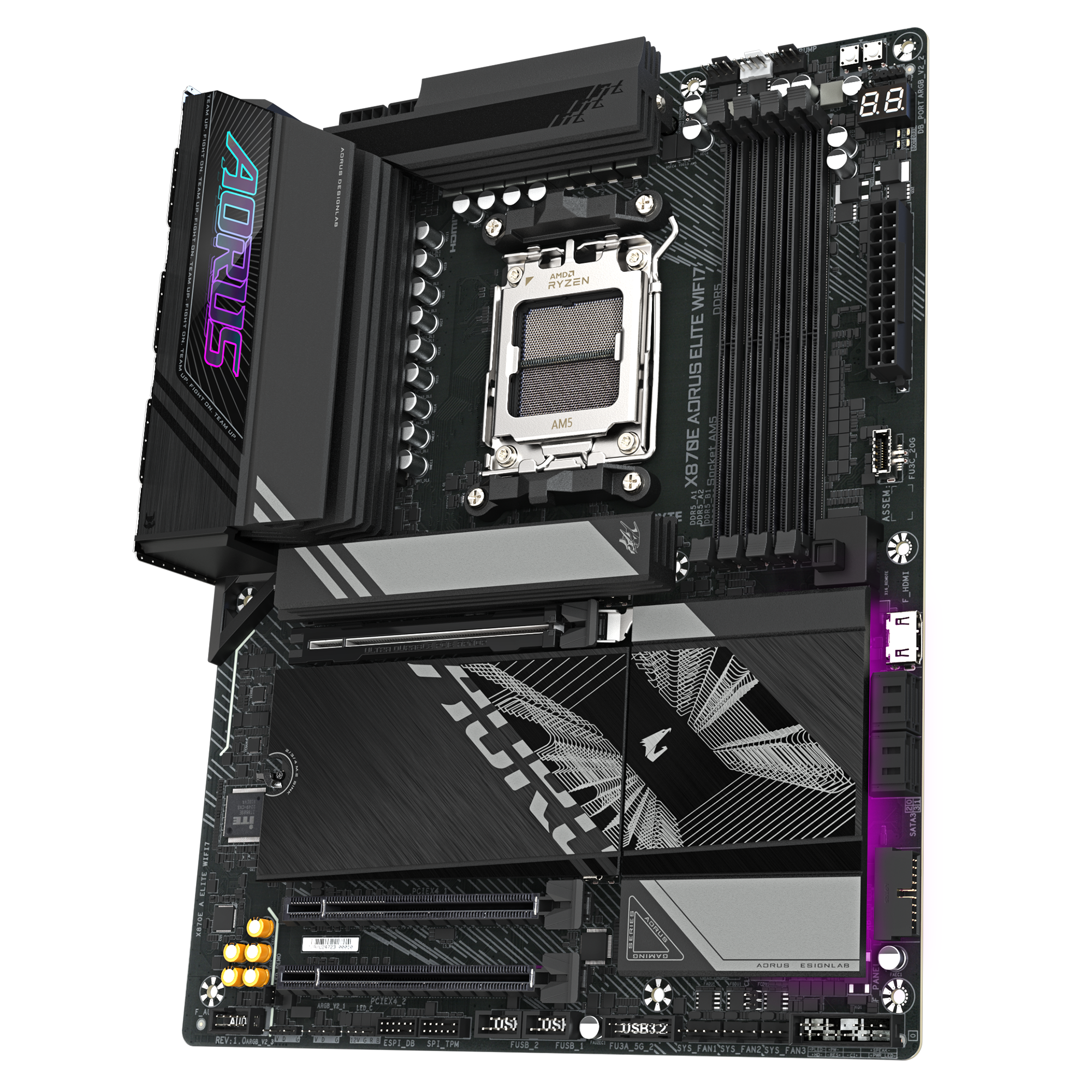

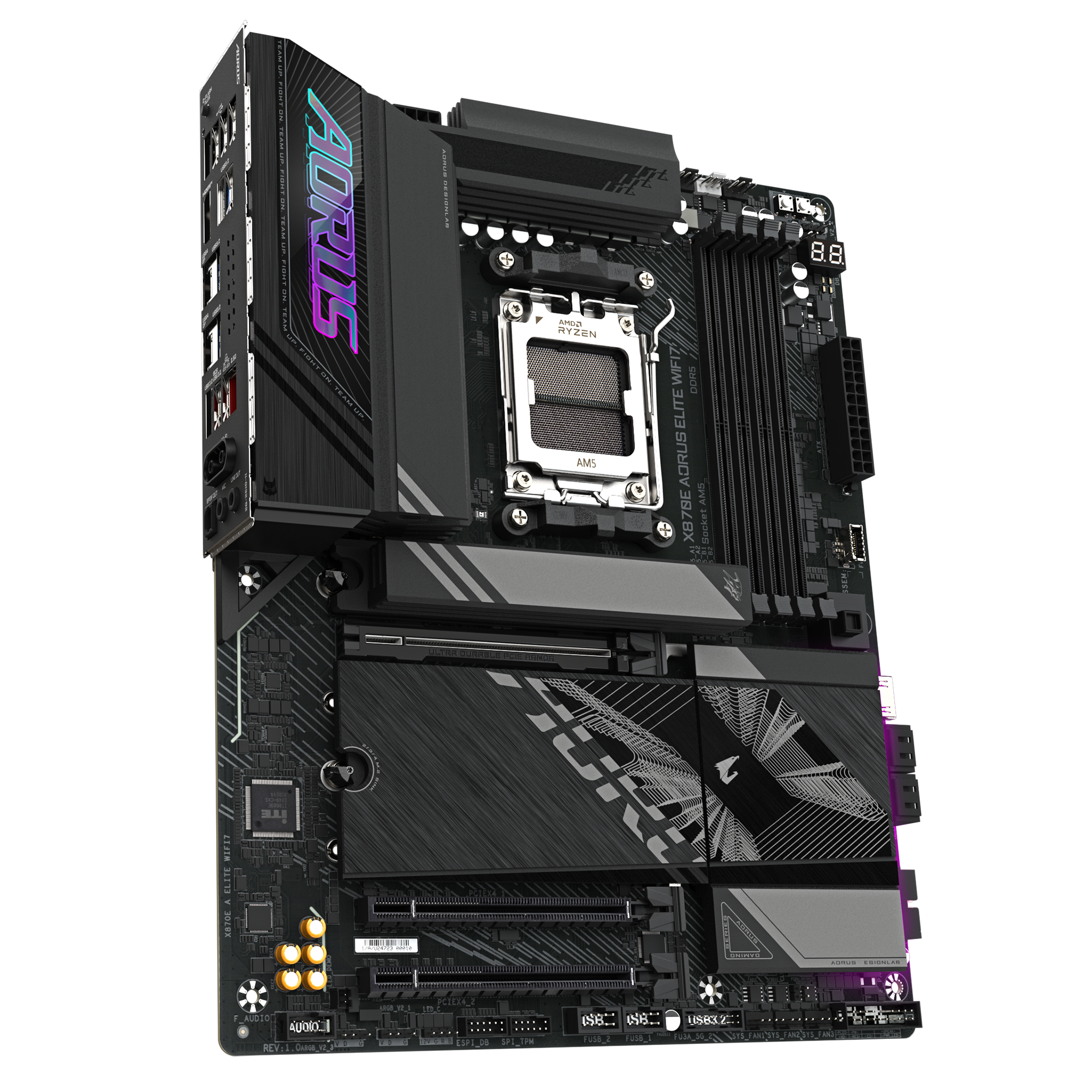

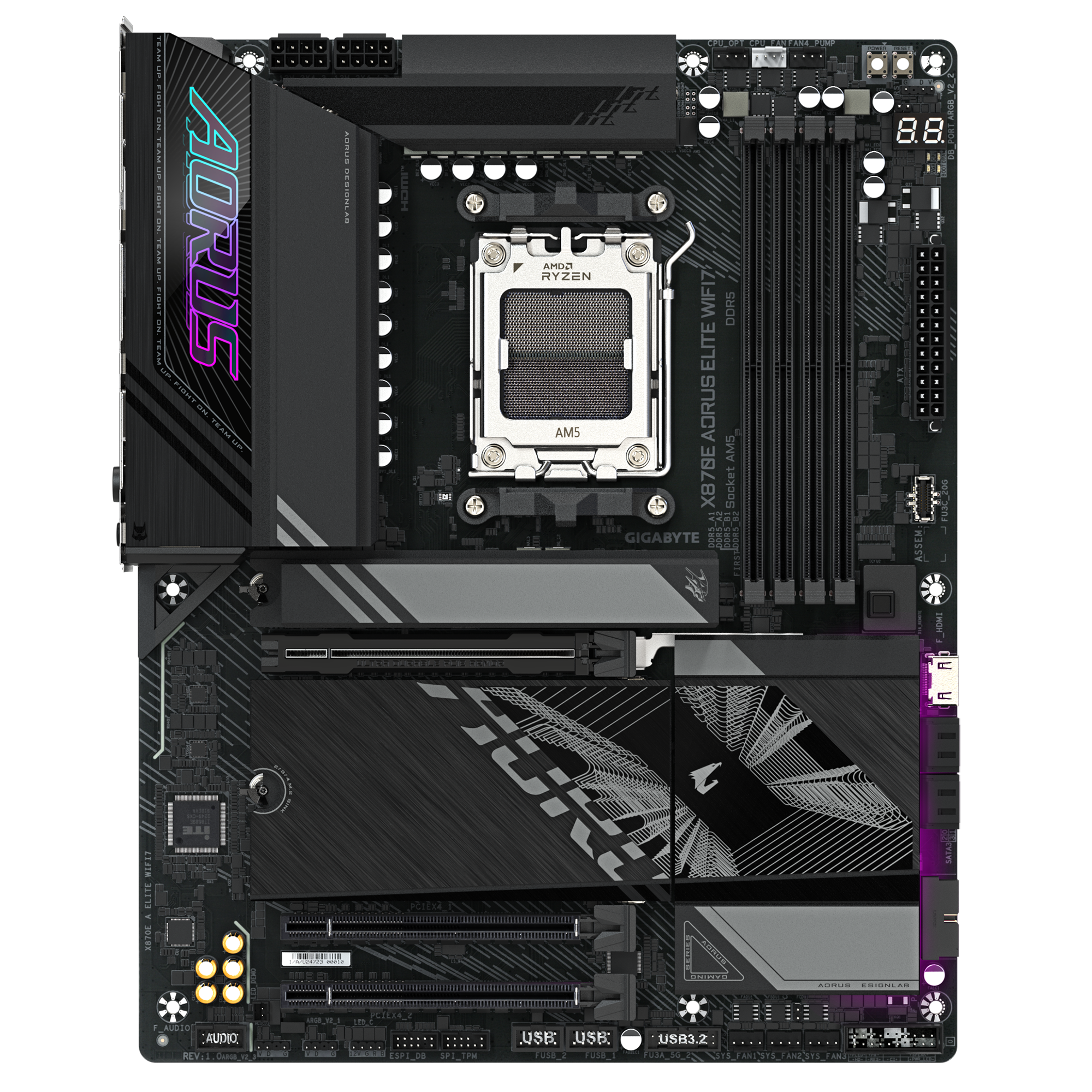

Gigabyte X870E AORUS ELITE WIFI7 ICE 1.1

CPU Support AMD Socket AM5 Compatible with: Ryzen™ 9000 Series Ryzen™ 8000 Series Ryzen™ 7000 Series Check GIGABYTE website for latest CPU support list. Chipset AMD X870E Memory Supports DDR5 up to 8200 MT/s (OC) Supported speeds: 8200 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6666 / 6600 / 6400 / 6200 / 6000 (OC) 4 × DDR5 DIMM slots Maximum capacity: 256GB (4×64GB) Dual-channel architecture Supports: Non-ECC Unbuffered DIMMs AMD EXPO™ & Intel XMP profiles Actual speed depends on CPU & memory configuration. Graphics (Integrated GPU Support) USB4 Type-C (Back Panel) Via AMD Radeon™ Graphics ASMedia USB4 Controller: 2 × USB4 Type-C (DP output) Resolution: 3840×2160 @ 240Hz DisplayPort 1.4 HDR support HDMI Ports Rear HDMI: Resolution: 4096×2160 @ 60Hz HDMI 2.1, HDCP 2.3, HDR Front HDMI: Resolution: 1920×1080 @ 30Hz HDMI 1.4 Supports up to four displays simultaneously (Depends on CPU GPU capability) Audio Realtek ALC1220 High-Definition Audio Codec 2/4/5.1/7.1-channel support S/PDIF Out DSD playback supported through line-out Networking LAN Realtek 2.5GbE LAN Wi-Fi 7 Bluetooth 5.4 Two possible modules depending on board revision: MediaTek MT7925 (PCB rev 1.0) Realtek RTL8922AE (PCB rev 1.1/1.2) Supports 2.4 / 5 / 6 GHz 11be (160MHz) Wi-Fi 7 requires Windows 11 SV3. Expansion Slots CPU PCIe Lanes 1 × PCIe x16 slot Ryzen 9000/7000: PCIe 5.0 x16 Ryzen 8000 Phoenix 1: PCIe 4.0 x8 Ryzen 8000 Phoenix 2: PCIe 4.0 x4 If M2B_CPU or M2C_CPU is used ➝ GPU slot drops to x8. Chipset Slots 1 × PCIe 4.0 x4 (PCIEX4_1) 1 × PCIe 3.0 x4 (PCIEX4_2) Storage M.2 Slots M2A_CPU (CPU PCIe lanes) 25110 / 22110 / 2280 / 2580 SSDs Ryzen 9000/7000: PCIe 5.0 x4/x2 Ryzen 8000: PCIe 4.0 x4/x2 M2B_CPU & M2C_CPU 22110 / 2280 SSDs PCIe 5.0 x4/x2 (Ryzen 9000/7000) Disabled with Ryzen 8000 Series APUs M2D_SB (Chipset) 22110 / 2280 PCIe 4.0 x4/x2 SATA 4 × SATA 6Gb/s RAID support: RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000) RAID 0/1/10 for SATA USB Back Panel 2 × USB4 Type-C (DP capable) 4 × USB 3.2 Gen 1 2 × USB 3.2 Gen 2 (red) 4 × USB 2.0 1 × HDMI 1 × RJ-45 1 × Optical S/PDIF 2 × Wi-Fi antenna connectors Q-Flash Plus button Internal Headers 1 × USB 3.2 Gen 2×2 Type-C 2 × USB 3.2 Gen 1 2 × USB 2.0 4 × SATA RGB/ARGB headers Fans & pumps TPM header Cooling & Monitoring CPU fan header CPU fan/pump header 3 × system fan headers 1 × system fan/pump header Water flow monitoring Fan speed control Noise detection BIOS 256 Mbit AMI UEFI BIOS Supports: Q-Flash Q-Flash Plus Smart Backup Software Norton Internet Security OEM LAN management software Operating System Windows 11 64-bit Form Factor ATX – 30.5cm × 24.4cm
