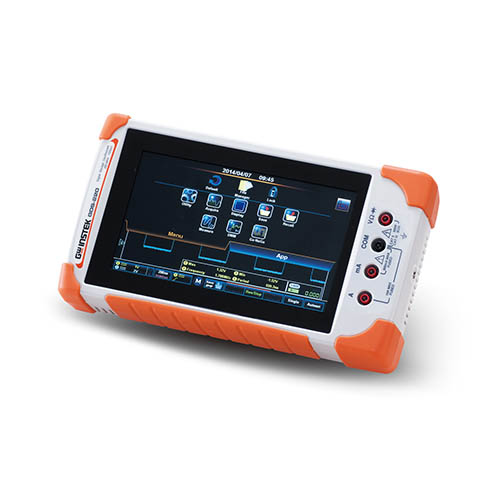

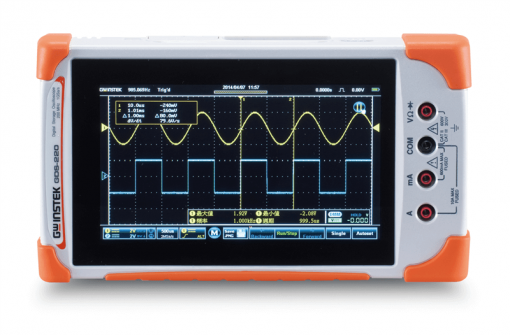

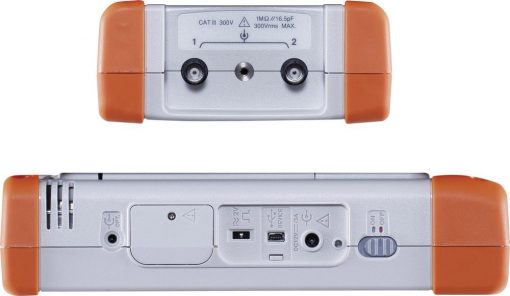

The GW INSTEK GDS-210 handheld digital storage oscilloscope is a compact DSO that is ideal for field service. The GDS-210 introduces a 7” capacitive full touch panel LCD which can be positioned in portrait and landscape display. The recharging-battery design makes the series easy to operate for field operations. The GDS-210 is suited for applications in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection and repair, and maintenance personnel who are always on field assignments. The GDS-210, with two analog signal input channels, has a bandwidth of 100 MHz and the maximum sample rate per channel is 1 GSa/s with a memory depth of 1 Mpts. The GDS210 has a 5,000 count DMM which can simultaneously measure and monitor A.C. and D.C. voltage, and current. Trend plots over long periods of time can also be drawn which allows engineers to effectively monitor standard electric parameters while measuring basic circuit signals. The optional 40 MHz dual-channel differential probe can achieve equivalent isolation results for measurement systems under strict power and grounding environments. Users can also easily apply the oscilloscope as a very convenient USB storage equipment to store waveform images and raw data. Additionally, the oscilloscope can be connected with smart phones to transmit the recorded data. Engineers are aware of GW Instek oscilloscopes’ thoughtful designs through diversified application software. Advanced DMM functions and GO/NOGO template editing facilitate users in conducting advanced diversified measurement functions. Engineering calculator, attenuation calculation analysis, and resistance indication analysis help users apply auxiliary functions that demonstrate the concept of powerful and comprehensive technological integration. The GDS 210 oscilloscope adopts a full touch panel capacitive LCD. In the era of smart phones, GW Instek can also usher users into the full touch panel measurement era. With only one finger, users not only can move waveform up and down but also the trigger line position. Two-point touch panel is also applied. Engineers can use two fingers to adjust vertical voltage levels and to enlarge or narrow time division scales. The brand new touch panel and swift response renews your measurement concept. Additionally, one finger drag menu selection allows users to follow their intuition to locate required measurement functions, and to save and retrieve diagrams and data anytime anywhere. Engineers have different requirements under different environments. When field test and measurement is necessary engineers often need portrait displays to conduct measurement due to environment limitation and the emphasis of integrated functions. Waveform measurement and DMM can be simultaneously operated. When indoor test and measurement is required engineers often need stable measurements and large screen which is answered by landscape display. 7” full measurement screen can also be applied as a stable desk-top oscilloscope. Traditional oscilloscopes can not meet users’ requirements of conducting integrated system circuit measurement. One extra DMM is often required to work with traditional oscilloscopes to handle enormous test requirements. GDS-210 oscilloscope integrates the functions of oscilloscopes and DMMs to conduct simultaneous measurements. In the analysis of system circuit waveforms, GDS-210 can also use DMM to measure basic voltage and current of the peripheral components that provides users with very powerful test integration. Once engineers finished waveform measurement and report compilation, the GDS-210 oscilloscope can be used as USB storage component to retrieve and store files. Briefing speaking, users can use USB connecting cables to connect GDS 210 with a PC or handheld device to retrieve any required files for follow-up actions. Today, the smart phone is ubiquitous, so the screenshots and measurement results of GDS-210 can be transmitted via smart phone saving a lot of trouble. Model GDS-307 GDS-310 GDS-320 GDS-207 GDS-210 GDS-220 VERTICAL Channels 2 (BNC-Shield) Input Impedance 1MΩ±2%, 16.5pf approx. Maximum Input CAT II 300VRMS Input Coupling AC, DC, GND Bandwidth DC~70MHz (-3dB) DC~100MHz (-3dB) DC~200MHz (-3dB) DC~70MHz (-3dB) DC~100MHz (-3dB) DC~200MHz (-3dB) Rise time <5ns <3.5ns <1.75ns <5ns <3.5ns <1.75ns Sensitivity 2mV/div~10V/div (1-2-5 increments) Accuracy ±(3% x Readout 0.1 div 1mV) Bandwidth Limit 20MHz(-3dB) Polarity Normal, Invert Offset Position Range 2mV/div~50mV/div : ±0.4V 100mV/div~500mV/div : ±4V 1V/div~5V/div : ±40V 10V/div : ±300V SIGNAL ACQUISITION Realtime sample rate 1GSa/s Memory depth 5M points per ch 1M points per ch Acquisition mode Average: 2~256 waveforms Peak detect: 10ns sin(x)/x or ET Replay wfms. 30,000 wfms. TRIGGER Source Ch1 or Ch2 Trigger mode Auto, Normal, Single, Force Trigger type Edge, Pulse Width, Video, Alternate Trigger Holdoff 10ns ~ 10s Coupling AC, DC, LFR, HFR, NR Sensitivity DC~25MHz: approx. 0.5div or 5mV 25MHz~ 70/100/200MHz: approx. 1.5div or 15mV HORIZONTAL Range 5ns~100s/Div (1-2-5 increments) Roll 100ms/div ~ 100s/div Pre-trigger 10 div max. Post_trigger 1,000 div max(depend on time base) Accuracy ±20ppm over any > 1ms time interval XY MODE Phase Shift ±3° at 100KHz CURSOR AND MEASUREMENT Cursors Voltage difference between cursors(△V), Time difference between cursors(△T), frequency measure(1/△T) Auto-measurement 36 sets. Auto-counter 6 digits. Range: 2Hz to rated bandwidth Autoset Available TEMPERATURE MEASUREMENT Available Non-Available MISCELLANEOUS Multi-Language Menu Available On-line Help Available Time and Clock Available BATTERY Battery power Li-polymer 6100mA/hr, 7.4V (Built-in) Charge time 2.0 hour (75%) Operation time 4.1 hour, depending on operating condition. PROBE COMPENSATION 2V, 1KHz, 50% Duty cycle INTERFACE USB USB Device (Isolation) Internal Flash Disk 120MB DISPLAY Type 7 inch Display resolution 480 x 800 pixels Display direction Landscape & Portrait Backlight control Manual adjustable, ECO mode Touch panel Capacitive POWER ADAPTOR Line Voltage AC 100V~240V, 48~63Hz, Power Consumption 40W DC Output DC Output: 12V/3A, Double Shield OPTION Differential Probe Dual-channel, 40MHz, CAT II 600V DIMENSIONS & WEIGHT 1.5Kg, HxWxD(mm) 240mm x 136mm x60 mm DMM (Digital Multi-Meter) DIGIT LEVEL 50,000 counts 5,000 counts CAT II 600VRMS, CAT III 300VRMS DC VOLTAGE Range 50mV, 500mV, 5V, 50V, 500V, 1000V 6 ranges Accuracy GDS-307/310/320: 50mV, 500mV, 5V, 50V, 500V ±(0.05% 5 digits), 1000V ±(0.1% 5 digits) GDS-207/210/220: 50mV, 500mV, 5V, 50V, 500V, 1000V ±(0.1% 5 digits) Input Impedance 10MΩ DC CURRENT Range 50mA, 500mA, 10A 3 ranges Accuracy GDS-307/310/320: 50mA – 500mA, 2 Ranges, ±(0.1% 5 digits), 10A ±(0.5% 1 digits) GDS-207/210/220: 50mA – 500mA, 10A 3 Ranges, ±(0.5% 1 digits) AC VOLTAGE Range 50mV, 500mV, 5V, 50V, 700V 5 ranges Accuracy 50mV, 500mV, 5V, 50V, 700V ±(1.5% 15 digits) at 50Hz-1kHz AC CURRENT Range 50mA, 500mA, 10A 3 ranges Accuracy 50mA, 500mA, ±(1.5% 15 digits) at 50Hz-1kHz 10A ±(3% 15 digits) at 50Hz-1kHz* Measure range: >10mA RESISTANCE Range 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 5 range Accuracy 500Ω, 5kΩ, 50kΩ, 500kΩ ±(0.3% 3 digits) 5MΩ ±(0.5% 5 digits)* Measure range: 50Ω to 5MΩ DIODE TEST Maximum forward voltage 1.5V, Open voltage 2.8V CONTINUITY BEEP < 15 Ω FUNCTIONS Auto Range, Max, Min, Hold, Trend plotGW INSTEK GDS-210 Include Accessories: 1 – Quick Start Guide 1 – User Manual 1 – Power Cord 1 – 100 MHz Probe Suitable for GDS-307/207, GDS-310/210 2 – Multimeter Test Leads 1 – Soft Carrying Case 1 – Soft Carrying Bag 1 – AC-DC Adaptor 1 – Wrist Strap
