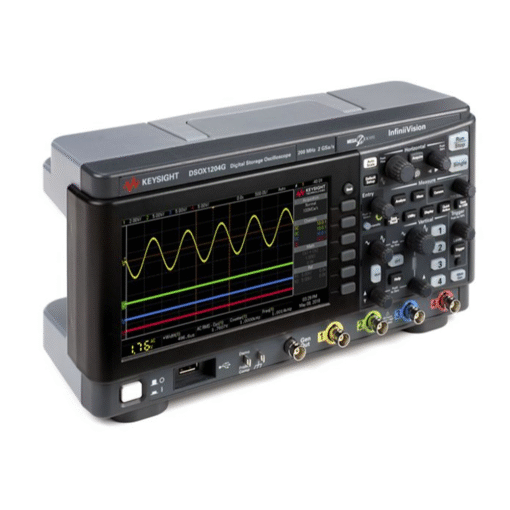

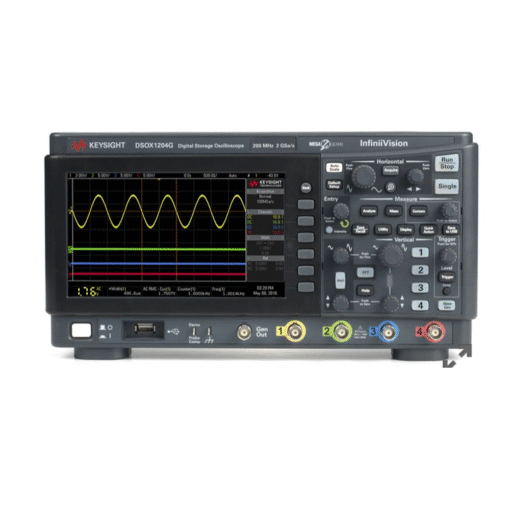

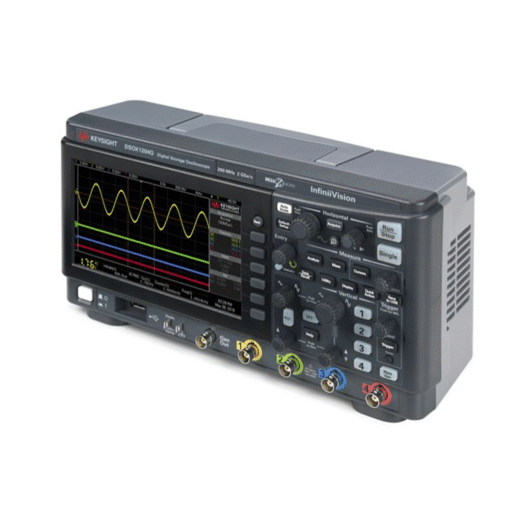

The Keysight DSOX1204G is an InfiniiVision 1000 X-series 4-channel, 70MHz digital signal oscilloscope (upgradable to 200 MHz) with 20MHz function generator. The 1000 X-Series is a family of low-cost oscilloscopes that don’t compromise on quality. The 1000 X-Series offers an integrated 20MHz function generator with modulation capability. It’s ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings. 70 MHz (100 and 200 MHz require additional option) 2 GSa/s sample rate 2M points Built-in 20 MHz function generator (standard) Make professional measurements, including Bode plots (FRA), mask testing, math, FFT, and serial protocol analysis, all standard Quickly learn how to use with built-in help and training signals See more signal detail at 200,000 waveforms/sec update rate Keysight DSOX1204G Features: 7inch TFT LCD WVGA display External trigger : back panel input 200,000 waveforms per second waveform update rate I²C, SPI, UART/RS-232, CAN, LIN standard serial protocol analysis Features segmented memory, mask/limit testing Features built-in training signals, integrated digital voltmeter Features frequency counter Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter waveform math Automatic measurements as 14 amplitude, 14 timing and 4 pulse count measurements USB 2.0 (host and device), LAN connectivity
