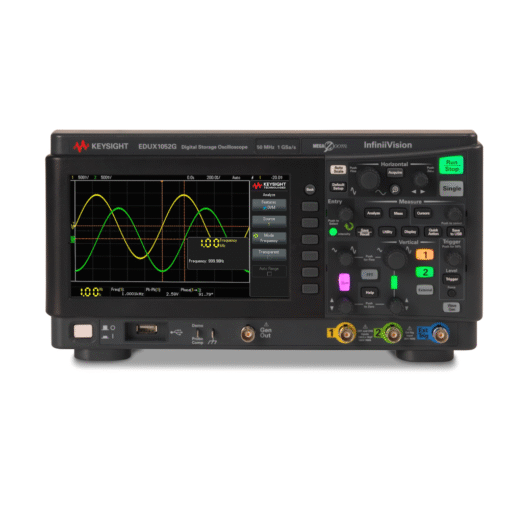

Keysight EDUX1052G Two Channel 50 MHz Oscilloscope with 20 MHz Function Generator The Keysight EDUX1052G oscilloscopes leverages the same technology as their higher-end oscilloscopes for education customers allowing students to learn on the same hardware and software being used in leading R&D labs. Don’t settle for less – set your students up for success. Built-in training signals that enable students to quickly learn to capture and analyze signals. The EDUX1052G includes 20-MHz function generator The educator’s resource kit includes dynamic teaching labs; a comprehensive lab guide; a tutorial written specifically for undergraduate students; and an oscilloscope fundamentals PowerPoint slide set for professors and lab assistants. IoT systems design applied courseware. The 1000 X-Series oscilloscope can be used with the U3800A Internet of Things(IoT) Systems Design Applied Courseware. Bode plots are fundamental concepts. The 1000 X-Series’ frequency response analyzer capability is the perfect tool to help students understand the gain and phase performance of passive RLC circuits or active op-amps (available in “G” model only). Optional DSOXBODE Bode plot training kit available. BenchVue Software with the BV0004B BenchVue Oscilloscope app (standard) lets you control and visualize the 1000X-Series and multiple measurements simultaneously. Specifications EDUX1052A EDUX1052G Bandwidth 50 MHz 50 MHz Analogue Channels 2 1 (ext. trigger viewable as digital channel) 2 1 (ext. trigger viewable as digital channel) External trigger (or 3rd digital channel) 1 1 Maximum sample rate 1 GSa/s (all channels) 1 GSa/s (all channels) Maximum memory depth 200,000 points (all channels) 200,000 points (all channels) Waveform update rate 100,000 waveforms per second 100,000 waveforms per second WaveGen Not available 20-MHz function generator Bode plot Not available Standard Serial Protocol Analysis Standard: I2C, UART/RS-232 Standard: I2C, UART/RS-232 Integrated digital voltmeter Standard Standard Frequency counter Standard Standard Built-in training signals Standard Standard Waveform math Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter Automatic measurements 14 amplitude, 14 timing, and 4 pulse count measurements 14 amplitude, 14 timing, and 4 pulse count measurements Display 7-inch TFT LCD WVGA 7-inch TFT LCD WVGA Connectivity USB 2.0 (host and device), LAN USB 2.0 (host and device), LAN
