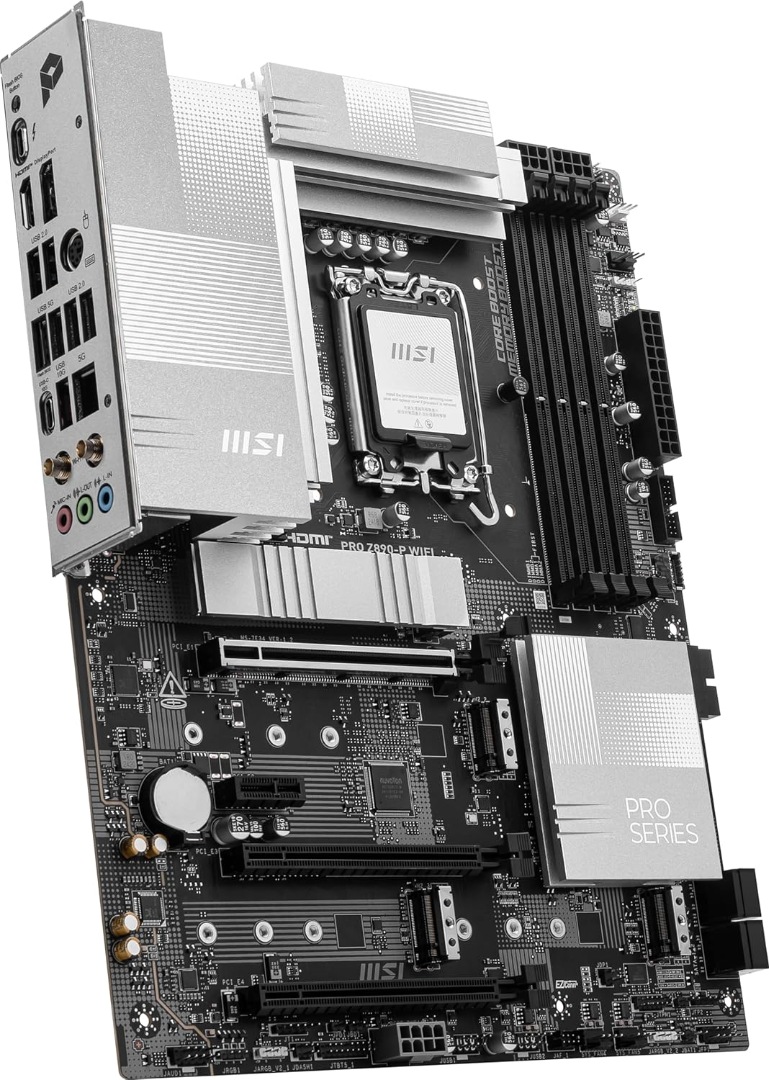

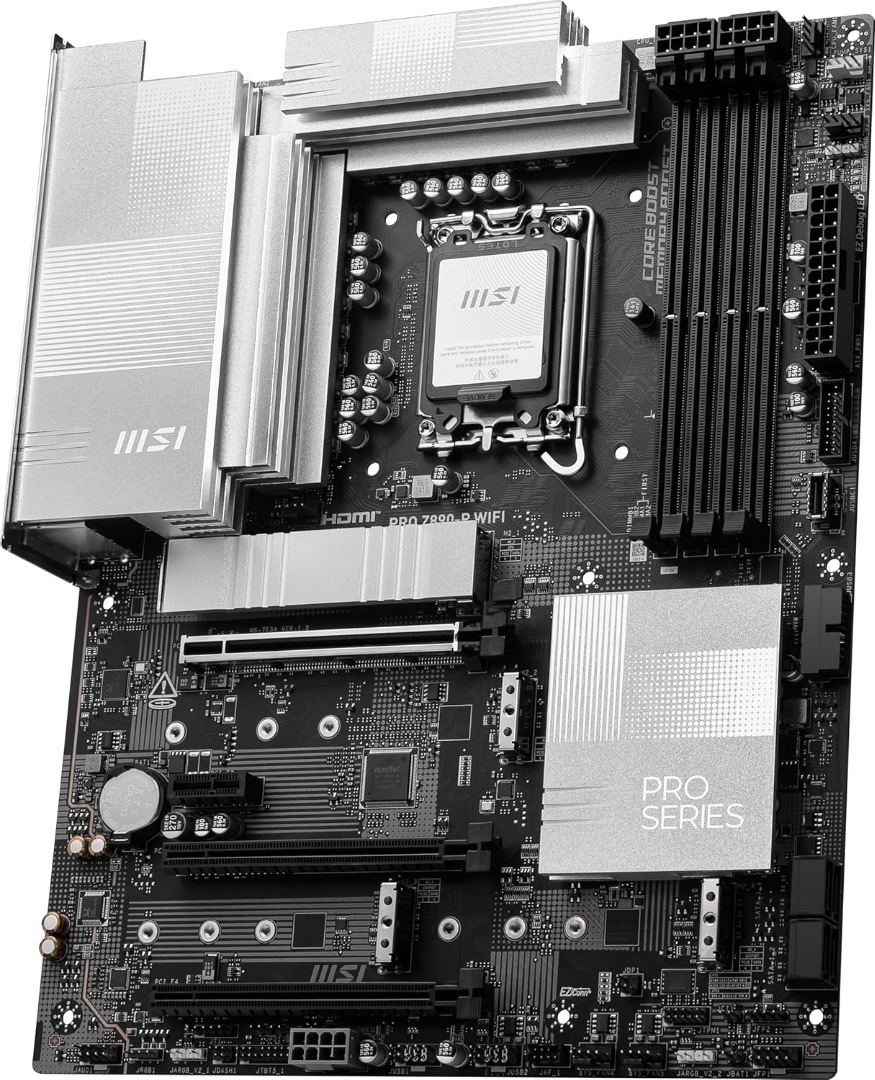

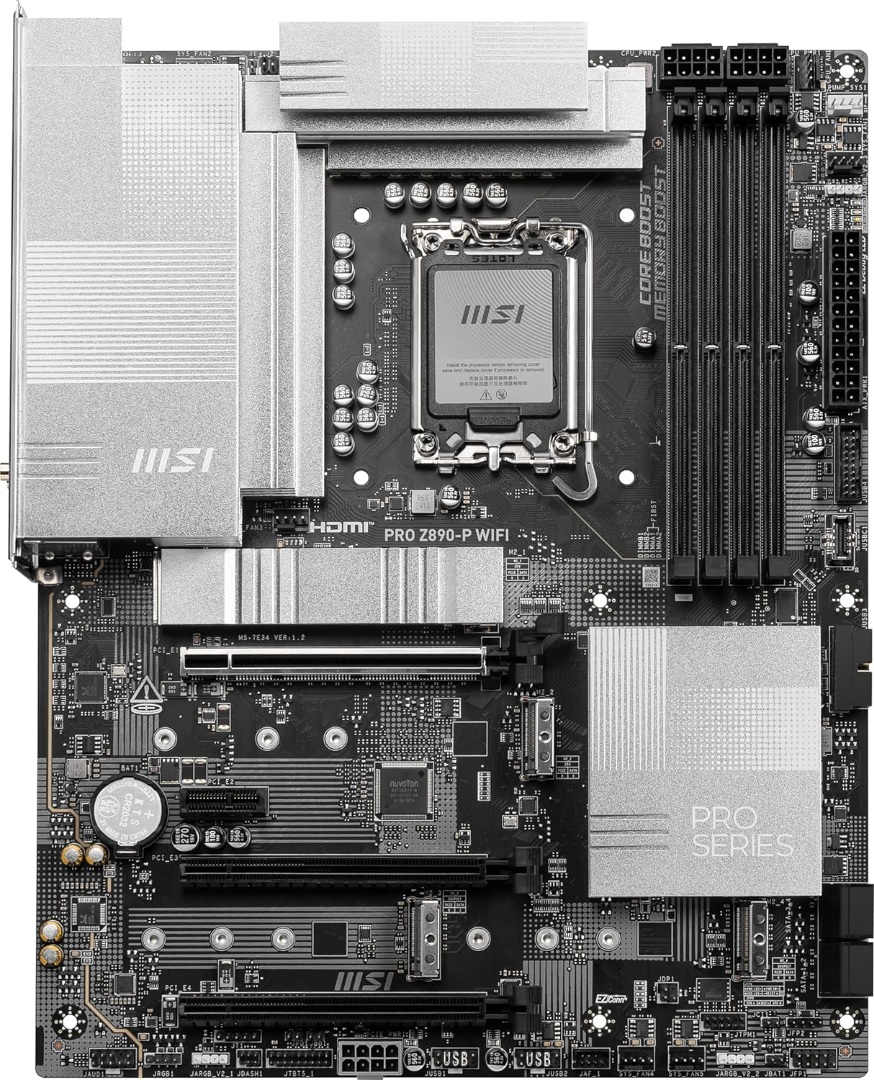

MSI PRO Z890-P WiFi

Chipset Intel® Z890 CPU Support Compatible with Intel® Core™ Ultra Processors (Series 2) Socket: LGA 1851 Memory Capacity: Up to 256GB DDR5 UDIMM (4 slots) Speeds: Overclocking: DDR5 9200 – 6400 MT/s JEDEC: DDR5 6400 – 4800 MT/s Max Overclocking Frequency: 1DPC 1R: Up to 9200 MT/s 1DPC 2R: Up to 7200 MT/s 2DPC 1R/2R: Up to 4800 MT/s Features: Intel® XMP 3.0 support Dual-Controller Dual-Channel mode Non-ECC, unbuffered memory CUDIMM supported Note: Compatibility may vary depending on CPU and memory configuration. Refer to the Memory Compatibility List for details. Graphics Integrated Output (CPU Dependent): 1x HDMI™ 2.1 (4K 60Hz) 1x DisplayPort 1.4 (4K 60Hz) 1x Thunderbolt™ 4 (DisplayPort 2.1, up to 8K 60Hz or 4K 120Hz) Expansion Slots PCIe Slots: PCI_E1: PCIe 5.0 x16 (From CPU) PCI_E2: PCIe 4.0 x1 (From Chipset) PCI_E3: PCIe 4.0 x4 (From Chipset) PCI_E4: PCIe 4.0 x4 (From Chipset) Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Storage M.2 Slots: M.2_1 (PCIe 5.0 x4, supports 2280/2260 devices) M.2_2 (PCIe 4.0 x4, supports 22110/2280/2260 devices) M.2_3 (PCIe 4.0 x4, supports 2280/2260/2242 devices) M.2_4 (PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices) SATA Ports: 4x SATA 6Gb/s RAID RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage devices Onboard Thunderbolt™ 1x Thunderbolt™ 4 port: Up to 40Gbps with Thunderbolt devices Up to 20Gbps with USB4 devices Supports up to 8K display USB Connectivity Rear: 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 10Gbps Type-A 1x USB 10Gbps Type-C 1x USB 20Gbps Type-C Front: 4x USB 2.0 4x USB 5Gbps Type-A 1x USB 20Gbps Type-C Network Realtek® 8126 5Gbps LAN Wireless LAN & Bluetooth Wi-Fi 7: Pre-installed in M.2 (Key-E) slot 2.4GHz/5GHz/6GHz (up to 5.8Gbps) Bluetooth: Version 5.4 (Windows 11 24H2 ready) Internal I/O Power Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8-pin) Fan Headers: 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 5x System Fan RGB/LED: 3x Addressable V2 RGB LED connectors 1x RGB LED connector Additional Headers: 1x Thunderbolt5 card connector 1x TPM pin header LED Features 4x EZ Debug LED
