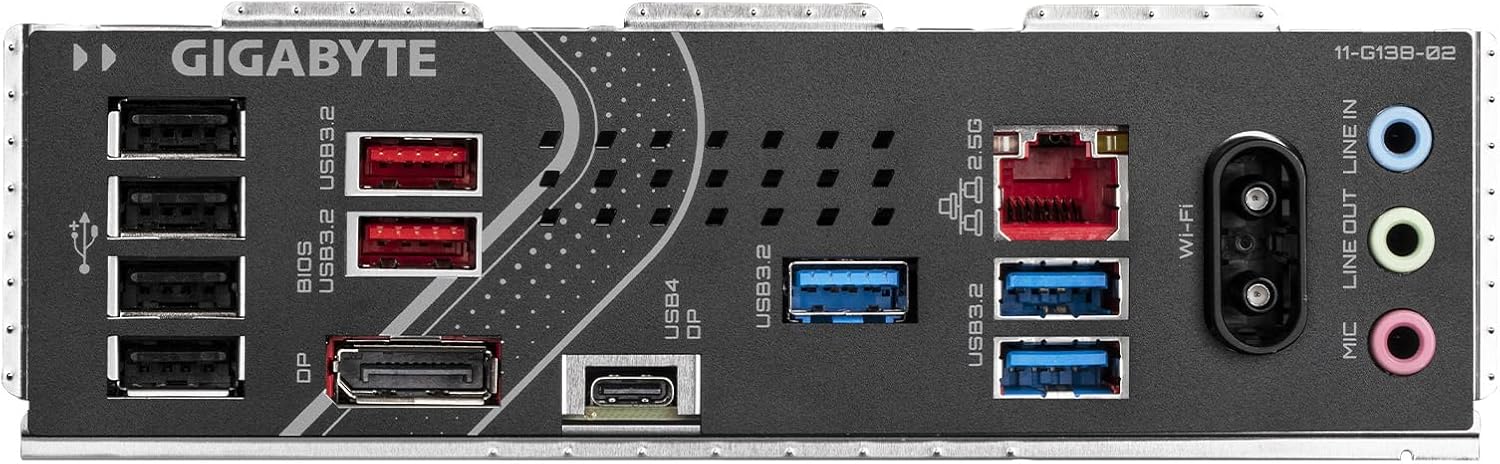

�� Specifications ⚡ CPU & Chipset LGA1851 socket – Supports Intel® Core™ Ultra Processors Intel® Z890 Express Chipset ⚡ Memory Supports DDR5 8266(O.C.) / 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s 4 x DDR5 DIMM slots, up to 192GB (48GB per DIMM) Dual-channel architecture ECC & non-ECC support (ECC operates in non-ECC mode) Extreme Memory Profile (XMP) support ⚡ Graphics & Display Intel® HD Graphics support 1 x HDMI 2.1 port – Max resolution: 4096×2160 @ 60Hz 1 x DisplayPort – Max resolution: 5120×2880 @ 60Hz ⚡ Audio Realtek® ALC897 CODEC – High Definition Audio 7.1-channel audio output ⚡ Networking Realtek 2.5GbE LAN Intel® Wi-Fi 7 & Bluetooth 5.3 802.11a/b/g/n/ac/ax/be 2.4GHz / 5GHz / 6GHz support Bluetooth 5.3 ⚡ Expansion Slots 1 x PCIe 5.0 x16 slot (CPU) 1 x PCIe 4.0 x16 slot (x4 mode, chipset) 1 x PCIe 3.0 x1 slot (chipset) ⚡ Storage 4 x M.2 Slots: 1 x PCIe 5.0 x4 M.2 (CPU) – 25110/22110/2280 3 x PCIe 4.0 x4 M.2 (Chipset) – 22110/2280 4 x SATA 6Gb/s ports RAID 0, 1, 5, 10 support ⚡ USB Connectivity Rear Panel: 1 x USB 3.2 Gen 2×2 Type-C (20Gbps) 3 x USB 3.2 Gen 2 Type-A (10Gbps) 4 x USB 3.2 Gen 1 Type-A (5Gbps) 2 x USB 2.0 ports Internal: 1 x USB 3.2 Gen 2 Type-C (10Gbps) header 1 x USB 3.2 Gen 1 header (supports 2 USB ports) 2 x USB 2.0 headers (supports 4 USB ports) ⚡ Internal I/O 24-pin ATX power, 2 x 8-pin ATX 12V power 1 x CPU fan header, 1 x CPU water pump header 4 x system fan headers, 3 x ARGB headers, 1 x RGB header 4 x M.2 slots, 4 x SATA ports 1 x front panel header, 1 x front panel audio header 1 x USB Type-C 3.2 Gen 2 header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers 1 x reset jumper, 1 x TPM header 2 x temperature sensor headers ⚡ Rear I/O Panel 1 x Q-Flash Plus button 1 x HDMI 2.1, 1 x DisplayPort 1 x USB 3.2 Gen 2×2 Type-C (20Gbps), 3 x USB 3.2 Gen 2 Type-A (10Gbps) 4 x USB 3.2 Gen 1 Type-A (5Gbps), 2 x USB 2.0 1 x 2.5GbE LAN (RJ-45), 2 x Wi-Fi antenna connectors 3 x audio jacks ⚡ Software & Features GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus support Smart Backup feature ⚡ BIOS 256Mbit AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 ⚡ OS Support Windows 11 64-bit ⚡ Form Factor ATX – 30.5cm x 24.4cm
