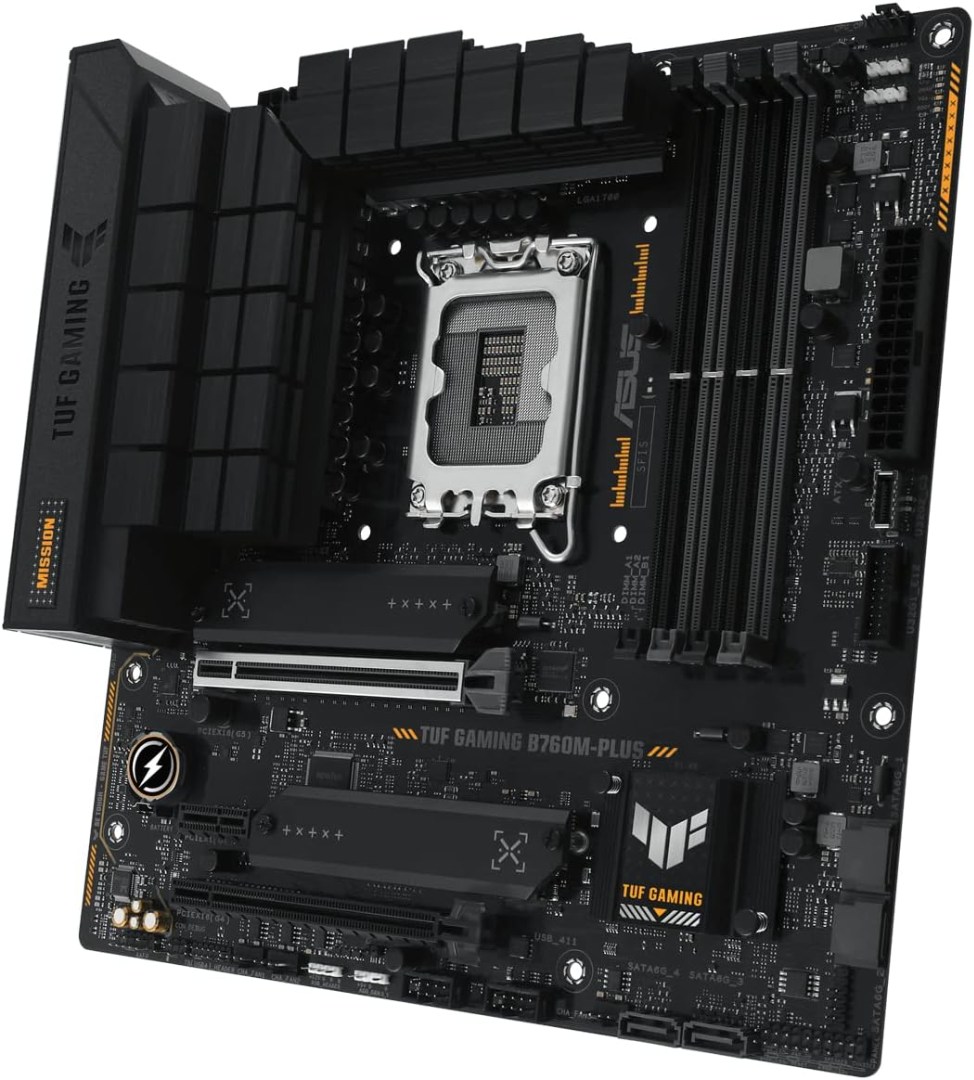

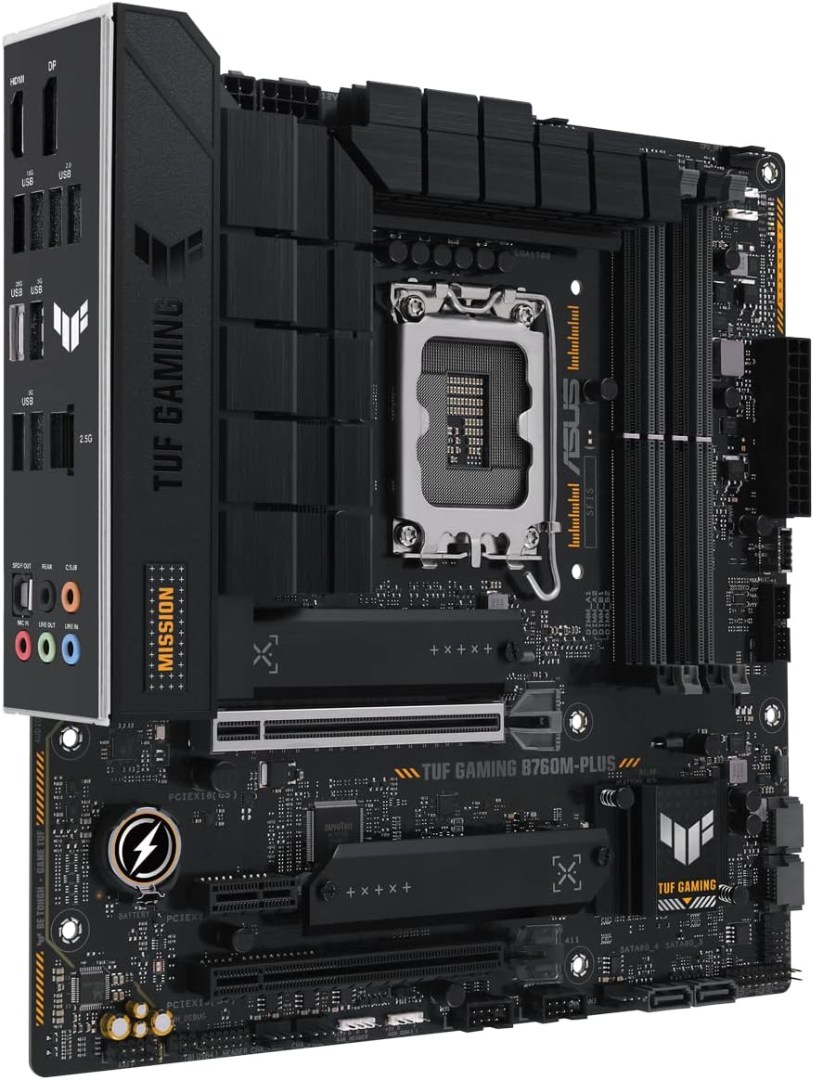

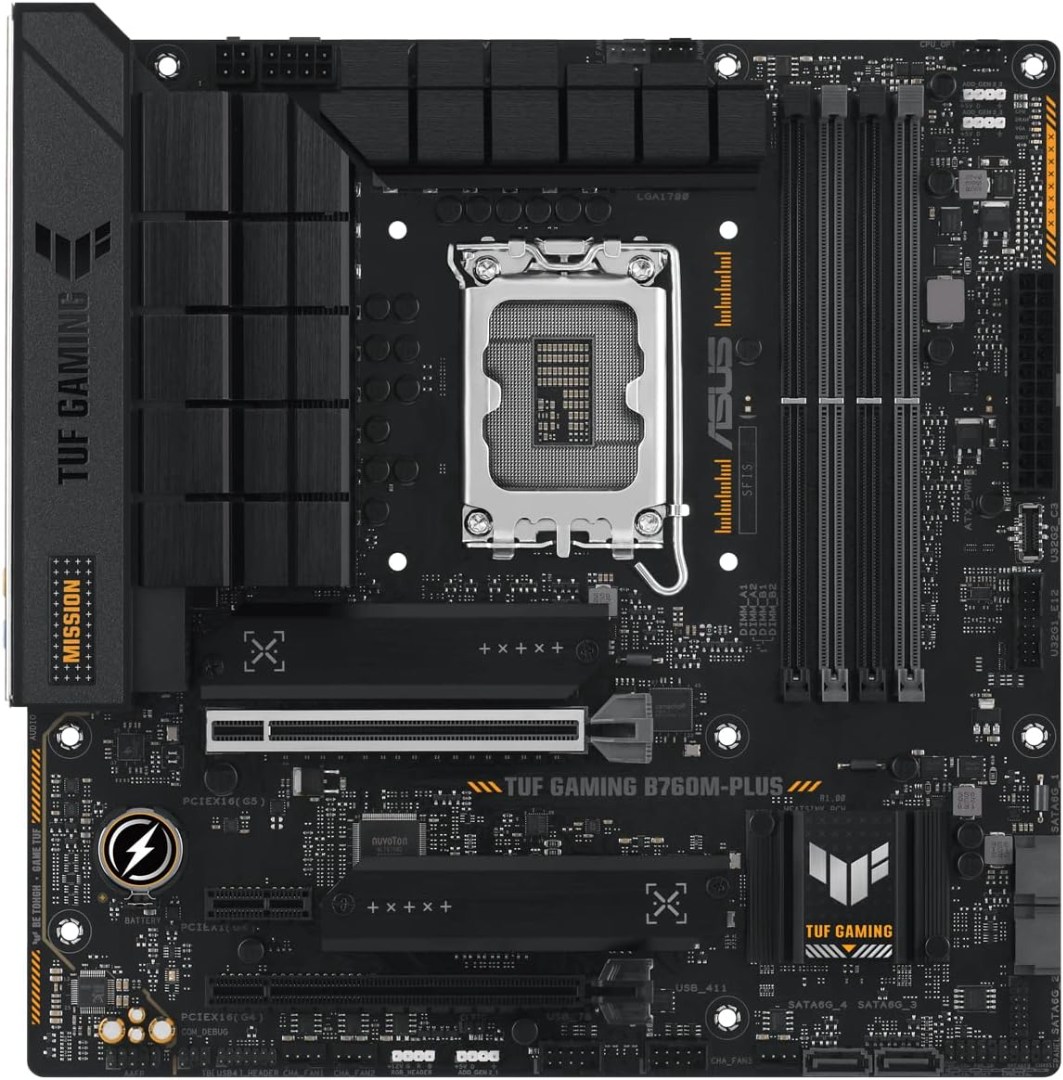

TUF GAMING B760M-PLUS Motherboard Specifications General Information Model Name: TUF GAMING B760M-PLUS Chipset: Intel® B760 Chipset Form Factor: mATX (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm) Operating System Compatibility: Windows® 11, Windows® 10 (64-bit) CPU Support Socket: Intel® Socket LGA1700 Compatible Processors: Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® processors Features: Intel® Turbo Boost Technology 2.0 Intel® Turbo Boost Max Technology 3.0 (CPU-dependent) Memory Slots: 4 x DIMM Capacity: Max. 192GB DDR5 Speed: 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Features: Dual-Channel Architecture Intel® Extreme Memory Profile (XMP) OptiMem II Graphics Ports: 1 x DisplayPort (4K@60Hz, DisplayPort 1.4) 1 x HDMI™ Port (4K@60Hz, HDMI 2.1) Graphics Output: Dependent on CPU Expansion Slots Intel® 14th, 13th, and 12th Gen Processors: 1 x PCIe 5.0 x16 slot Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (x4 mode) 1 x PCIe 4.0 x1 slot Storage M.2 Slots: M.2_1: PCIe 4.0 x4 (2242/2260/2280) M.2_2: PCIe 4.0 x4 (2242/2260/2280) SATA Ports: 4 x SATA 6Gb/s RAID Support: RAID 0, 1, 5, 10 (Intel® Rapid Storage Technology) Networking Ethernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard USB Rear USB Ports (8 total): 1 x USB 3.2 Gen 2×2 (Type-C®) 2 x USB 3.2 Gen 2 (Type-A) 3 x USB 3.2 Gen 1 (Type-A) 2 x USB 2.0 (Type-A) Front USB Headers (7 total): 1 x USB 3.2 Gen 2 (Type-C®) 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) Audio Codec: Realtek 7.1 Surround Sound High Definition Audio Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-bit/192kHz playback Audio Shielding Premium audio capacitors Rear optical S/PDIF out port Cooling Fan Headers: 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 3 x 4-pin Chassis Fans Thermal Solutions: VRM Heatsinks M.2 Heatsinks Internal I/O Connectors 2 x M.2 slots 4 x SATA 6Gb/s 1 x USB 3.2 Gen 2 (Type-C®) 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) 1 x Clear CMOS header 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Front Panel Audio header 1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF Protection: DIGI VRM ESD Guards Overvoltage Protection Stainless-Steel Back I/O SafeSlot Core Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot AURA Sync: AURA RGB and Addressable Gen 2 Headers Accessories 2 x SATA 6Gb/s cables 1 x M.2 Rubber Package 1 x M.2 Screw Package 1 x TUF Gaming Sticker Documentation (TUF Certification Card, User Guide)
