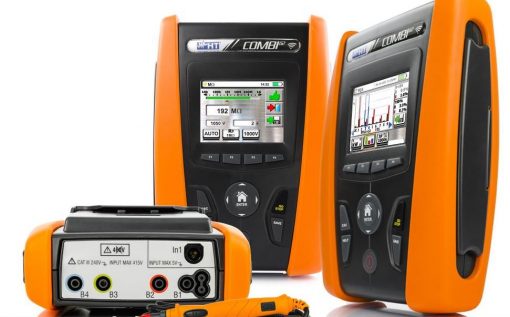

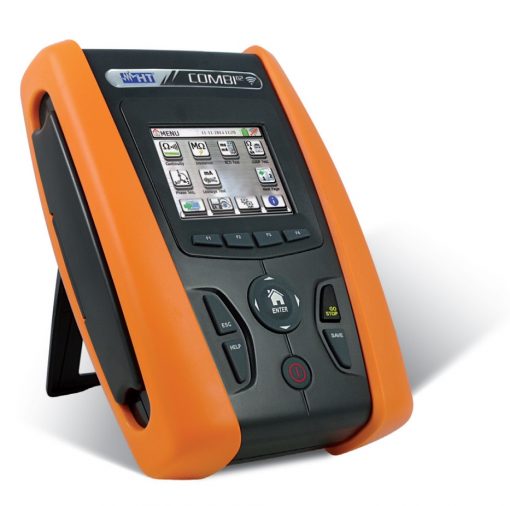

HT Italia COMBI G2 Multifunction Installation Tester

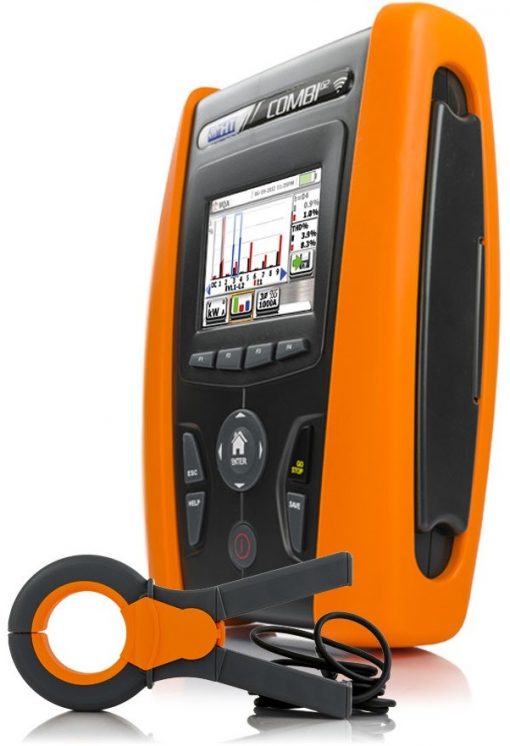

HT Italia COMBI G2 Multifunction Installation Tester HT Italia’s COMBI G2 Multifunction Installation Tester is designed to carry out safety tests on civil and industrial electric systems in compliance with IEC/EN61557-1. With its easy to navigate icon menu, color touch-screen display and extensive online support, the instrument is simple enough to use regardless of whether you are a seasoned pro, or just a beginner. However, what stands out the most is its wide range of features, allowing a multitude of measurement applications. The Multifunction Tester comes equipped with an inbuilt Wi-Fi, allowing easy data transfer to iOS/Android device of your choice, and USB cable for PC. This way report printing can be done either on site, or from the comfort of your office. COMBI G2 comes with no shortage of accessories, like HT96U, that allows to measure the leakage current. Or IMP57, capable of carrying out high resolution (0.1mOhm) loop/line impedance measurements with prospective short-circuit current calculation. So even when close to power stations, the user will be able to correctly size the protection devices in any system. Function Continuity of protection conductors with 200mA Insulation resistance with 50, 100, 250, 500,1000V DC Type A, AC, and B general, selective, and delayed RCDs up to 1000mA Test on earth leakage relay RCDs (with RCDX10 optional accessory) Line/fault impedance with prospective short circuit current calculation High resolution line/fault impedance (with IMP57 optional accessory) Curve B, C, D, and K MCBs and type gG and aM fuses Selection of length, type, and insulation of the cable under test Selection of tripping time of the protection device under test Non-trip earth loop impedance Phase sequence indication Voltage drop on main power lines Power Analysis, Harmonic analysis up to 25th Leakage current by means of the external transducer HT96U (optional) Environmental parameters (C/F, HR%, Lux) by means of optional probes TFT display with touch-screen Help on-line Internal memory USB interface to connect to the PC Built-in WiFi interface to connect to iOS and Android devices Rechargeable NiMH batteries (external battery charger) Standard Accessories C2033X : Cable 3 wires with Shuko plug KITGSC5 : Set 4 cables 4 alligator clips 2 test leads PT400 : Touch pen TOPVIEW Windows software optical/USB cable C2006 BORSA2051 : Soft carrying case Quick reference guide User manual on CD-ROM
