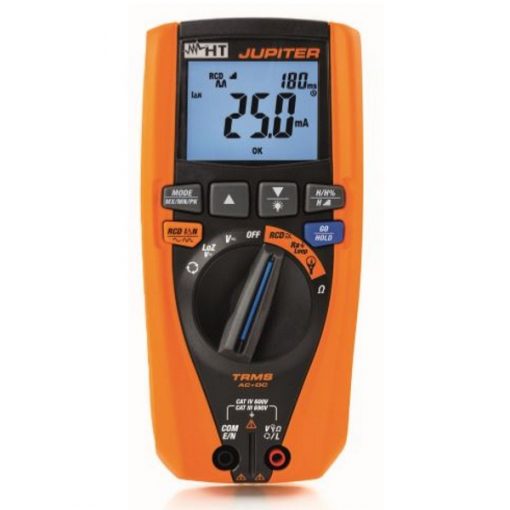

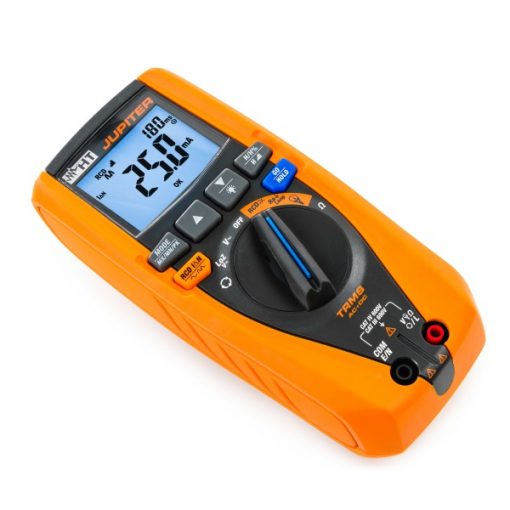

As professional multimeter HT Instruments JUPITER Multifunction Multimeter provides: Autorange measurements with automatic AC/DC detection LoZ low impedance voltage input to eliminate ghost voltage readings (caused by the capacitive coupling among active conductors close each other) One-lead phase sequence detection JUPITER is provided with ISO9000 calibration certificate as standard. HT Instruments JUPITER Multifunction Multimeter Features: Autorange measurements with automatic AC/DC detection. DC, AC TRMS, AC DC TRMS voltage up to 690V. Tripping time of RCDs type A and AC up to 300mA*. Tripping current of RCDs type AC up to 30mA. › Non-trip earth ground resistance. › Line-to-Neutral, Line-to-Line and Line-to-Ground impedance (resolution 0.1Ohm) with prospective short-circuit/fault current calculation. Current up to 3000A by means of clamp-on or flexible external transducer. Dynamic inrush current of motors and loads through the DIRC function allowing time base selection. Leakage current by means of the clamp-on transducer HT96U. Voltage and current harmonics with THD% calculation and function to the 25th Harmonic showing highest harmonic values first. One-lead phase sequence detection. Low impedance voltage input to eliminate ghost voltage readings. DC, AC TRMS, AC DC TRMS current by means of external transducer. Frequency of voltage and/or current. Resistance and continuity with buzzer. MIN/MAX/PEAK/HOLD functions. 6000 count Display HT Instruments JUPITER Multifunction Multimeter Functions: TRMS AC/DC voltage 690V / AC DC LoZ Input AC/DC current AC DC with external clamp transducer Frequency Resistance and continuity test with buzzer RCD tripping time 30mA, 100mA, 300mA A/AC RCD trip current measurement RCD A/AC 30mA Leakage current (with optional accessory HT96U) Non-trip earth resistance Voltage and current harmonics up to the 25th and THD% Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current Electric motor starting current (INRUSH) Auto x1/2, x1, x2, x5, 0°, 180° Phase sequence Out come OK/NOT OK According with IEC60364-6 Backlit LCD display Measurement category CAT IV 600V Measuring counts 6000 MAX/MIN/HOLD Bargraph HT Instruments JUPITER Standard Accessories: • C2033AU Three wire cable Red, Black, Green with Australian plug • 4324-2 Pair of test tips Red/Black 2/4mm straight banana • YABAT0001HT0 Alkaline battery 1.5V, type AAA, IEC LR03, 4 pcs • YABRS0002HT0 Carrying bag • YAMUM0066HT0 User manual on CD-ROM • YAMUM0065HT0 Quick reference guide • Calibration certificate ISO9000.[/col] C2033AU Three wire cable Red, Black, Green with Australian plug HT Instruments JUPITER Optional Accessories:[ • F3000U AC flexible clamp with 30/300/3000A full scales • HT96U* AC current clamp with 1/100/1000A full scales • HT97U* AC current clamp with 10/100/1000A AC full scales • HT98U* DC current clamp with 1000A full scale • HT4006 AC/DC current clamp with 40/400A full scales • NOCANBA Hypertac-to-banana adapter* Adapter NOCANBA required. F3000U & HT4006 Clamps
