EXTECH PRC15 Current and Voltage Calibrator / Meter

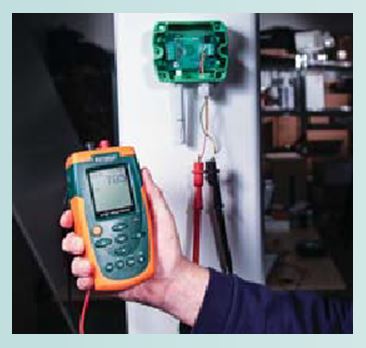

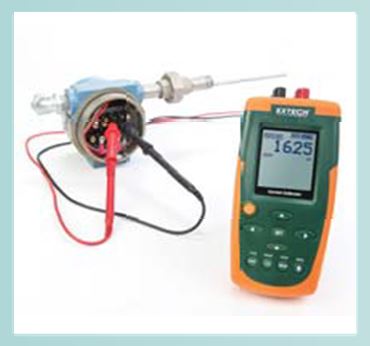

EXTECH PRC15 Product Description Precision “source” for calibrating process devices. Applications include: • Process devices calibration and simulation – Transducers – Transmitters – Indicators – Controllers – Recorders • Field test and service • Bench research/development Tilt Stand / Hanger The rear stand is provides two methods for convenience in viewing. 1. Pull the bottom portion of the stand out to place the unit on a flat surface for viewing. 2. Pull the bottom and top portions of the stand out, and then rotate the stand to allow the unit to be hung. Battery Replacement When the battery icon appears on the display, the six AA batteries must be replaced. The battery compartment is located on the rear of the meter. 1. Open the tilt stand, loosen the captive Philips head screw and remove the battery cover. 2. Remove and replace the batteries, observing polarity. 3. Replace and secure the battery cover. Extech PRC15 Specifications General Specifications Source: Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%); Output 0 to 20V Measure: 0 to 50mA current signal (-25 to 230%); 0 to 19.99V Power/Measure: Provides power (24VDC) to loop & measures current Input/Output: Ranges and Displays Resolution 0 to 19.99mA 0.01mA 0 to 24.0mA 0.1mA 0 to 1999mV 1mV 0 to 20.00V 10mV Accuracy: 0.01% ±1 digit Meter Dims (LxWxH): 159 x 80 x 44mm Meter Weight: 232g – not including battery weight
