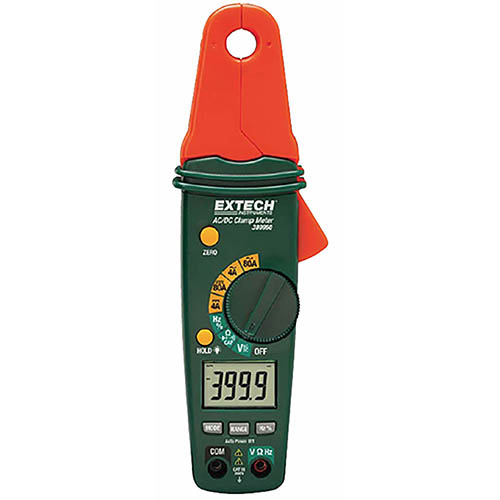

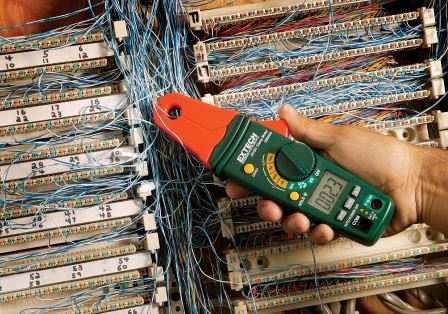

EXTECH 380950 80A Mini AC/DC Clamp Meter The compact Extech 380950 is a mini AC/DC clamp meter with an extra-small diameter jaw designed to reach into very small areas while providing 1mA resolution and very low-current sensitivity. The amp clamp performs essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work as well as residential, automotive, vehicle maintenance, marine, and motorcycle electrical repair. Key Functionality Besides AC/DC current, the mini clamp measures AC/DC voltage, resistance, frequency, duty cycle as well as performing diode and continuity tests. In addition, a special 4A range with 1mA resolution is optimized for finding problems where low current variances would be missed by standard clamp meters. The 4-digit (4,000-count) readout is easy to read and you can operate the meter with one hand, having a thumb-dial selector that is ergonomically placed off the side of the meter. The 380950’s ultra-compact and ergonomic design, two-range (4A/80A) rating, and very small 0.9″ (23mm) jaw opening make it easier to take readings in extremely tight areas, like inside vehicle engine bays. The useful Data Hold function freezes the display while the Min/Max function tracks and displays minimum and maximum values – useful for blind measurements and start-up draws. The meter also includes a Zero function to make it easy to perform relative measurements. General Specifications AC Current Range 4A, 80A Resolution 1mA Accuracy (%rdg dig) ±(2.5% 5d) DC Current Range 4A, 80A Resolution 1mA Accuracy (%rdg dig) ±(2.5% 4d) AC Voltage Range 400mV to 600V Resolution 0.1mV Accuracy (%rdg dig) ±(2.0% 4d) DC Voltage Range 400mV to 600V Resolution 0.1mV Accuracy (%rdg dig) ±(1.5% 3d) Resistance Range 400Ω to 40MΩ Resolution 0.1Ω Accuracy (%rdg dig) ±(1.5% 2d) Frequency Range 5Hz to 10MHz Resolution 0.001Hz Accuracy (%rdg dig) ±0.8°C Thermistor Temperature: Range 0 to 50°C Resolution 0.1° Accuracy (%rdg dig) ±(1.2% 3d) Duty Cycle Range 5 to 99.9% Resolution 0.1% Accuracy (%rdg dig) ±(1.2% 3d) Dimension/Weight 210 x 70 x 37 mm / 200g
