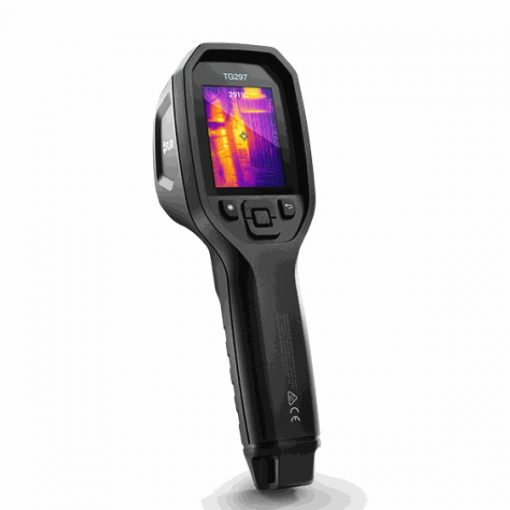

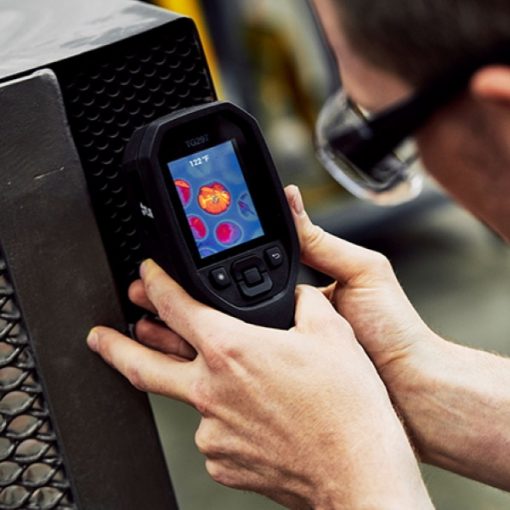

FLIR TG297 Industrial High-Temperature Thermal Camera The FLIR TG297 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1030°C (1886°F). Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images. The TG297 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes. The Flir TG297 can also record images to assure your team that machinery and systems are functioning safely and at peak efficiency. Measuring Kiln Temperature IDENTIFY PROBLEMS QUICKLY Outfit your toolbox with this combination non-contact temperature measurement and thermal imaging camera and measure a wide range of temperatures from -25°C to 1030°C (-13°F to 1886°F) with a true 160 × 120 IR pixel imager (19,200 pixels) • High-temperature filter allows camera to measure and image temperatures up to 1030°C (1886°F) • Work from a safe distance while scanning high temperature objects thanks to the 30:1 spot ratio • Identify the exact area that you’re measuring using the bullseye laser pointer PRODUCE CRISP IMAGES FOR EASY INTERPRETATION See the detail needed to troubleshoot faults and gauge their severity • Diagnose problems faster with FLIR-patented MSX image enhancement • Display and capture thermal or visual images with temperature readings • Compare before-and-after stored images to demonstrate the problem and the repair • View thermal images in your preferred colour palette on the bright 2.4-inch color display FLIR TG297 Highlights • See beyond the limitations of single-spot IR thermometers with a 160 x 120 pixel true thermal imager (Lepton® microbolometer with integrated shutter) • Visible spectrum 2 megapixel digital camera • Adjustable MSX® (Multi-Spectral Dynamic Imaging) adds key details from the visible spectrum camera to the IR image to help you diagnose problems • 3 presets and 1 custom emissivity setting • LED Work light • Laser pointer and cross-hair display for easy targeting of measurement spot The FLIR TG297 features a rugged IP54 enclosure that stands up to tough environments. It includes a multipoint laser pointer to clearly indicate the area measured and a bright LED flashlight to see into dark, difficult-to-reach areas. Bluetooth Low Energy (BLE) technology allows users to upload data and share images to a mobile device and create instant reports in the field. FLIR TG297 Features • High temperature lever switch engages high temperature mode • 4 GB internal memory for storing captured images • USB–C connectivity for image transfer and charging • Bluetooth® real-time remote temperature monitoring and camera image transmission to mobile devices • Easy to read 320 x 240 2.4” TFT colour LCD display • Intuitive programming menu system translated in more than 21 languages • IP54 enclosure (with top flap closed) protects from dirt, dust, and oil • Rechargeable lithium battery • Auto power off (APO), user adjustable • Accessory mounting for tripods, extender poles, etc. • Also suitable for Automotive use. FLIR TG297 Industrial High-Temperature Thermal Imaging Camera Technical Specifications Imaging and Optical Data IR resolution 160 × 120 pixels Digital image enhancement Yes Thermal sensitivity/NETD <70 mK Field of view (FOV) 57° × 44° Minimum focus distance 0.3 m (0.98 ft) Distance to spot ratio 30:1 Image frequency 8.7 Hz Focus Fixed Focal plane array/spectral range Uncooled microbolometer/7.5–14 µm Detector pitch 12 μm Image Presentation Display resolution 320 × 240 pixels Screen size 2.4 in. portrait Colour palettes Iron , Rainbow, White hot, Black hot, Arctic, Lava Image adjustment Automatic Image modes MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading Gallery Yes Measurement and Analysis Object temperature range -25°C to 1030°C (-13°F to 1886°F) Measurement accuracy -25°C to 50°C (-13°F to 122°F): up to ±3°C (±7°F) 50 to 100°C (122 to 212°F): ±1.5°C (±3°F) or ±1.5%, whichever is greater 100°C to 500°C (212°F to 932°F): ±2.5°C (±6°F) or ± 2.5% whichever is greater 500°C to 1030°C (932°F to 1886°F): ±3°C (±7°F) or ± 3%, whichever is greater IR temperature resolution 0.1°C (0.2°F) Repeatability of reading ±1% of reading or ±1°C (2°F), whichever is greater Response time 150 ms IR thermometer measurement Continuous scanning Minimum measurement distance 0.26 m (0.85 ft) Spotmeter Center spot on/of Set-up and Service Functions Set-up commands Local adaptation of units, language, date, and time formats Screen brightness (high, medium, low) Gallery, deletion of images Emissivity correction Yes: 4 pre-set levels with custom adjustment of 0.1–0.99 Image Storage and Visual Camera Storage capacity on 4 GB card 50,000 images Image file format JPEG w/ spot temp data Digital camera resolution 2 MP (1600 × 1200 pixels) Field of view (FOV) 71° × 56°, adapts to IR lens Light and Laser Flashlight 100 lumens LED, on/off option Class 1 laser Projects center spot and outlines circular measurement area to indicate size Data Communication Interfaces Bluetooth® BLE USB Type-C: data transfer, power Additional Data Battery type Rechargeable 3.7 V Li-ion battery Battery operating time 5 hrs scanning Battery charging time 4 hrs to 90% Power management Adjustable: off, 5 min, 15 min, 30 min Shock/vibration 25 g (IEC 60068-2-27); 2 g (IEC 60068-2-6) Drop Test Designed for 2 m (6.56 ft) Weight 0.394 kg Size (L × W × H) 210 × 64 × 81 m
