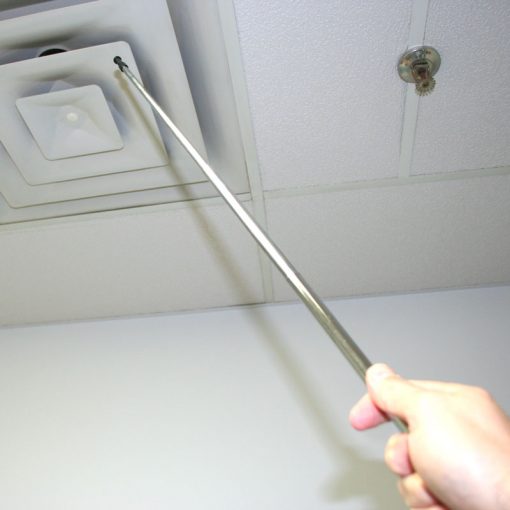

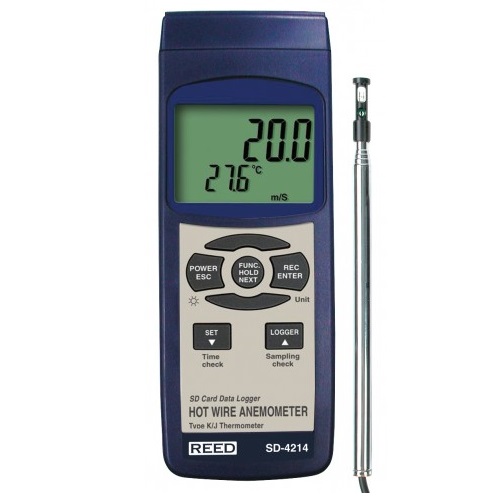

REED Thermo Anemometer data logger This portable Reed SD-4214 anemometer deliver and stores precise wind speed measurements and temperature using a hot wire and Type K and J thermocouple thermometer. For a fast response, the air temperature sensor uses a standard thermistor. The high contrast LCD can show air velocity values in different units. No extra software needed. The user can easily set up the logger and view downloaded data by plugging the SD card into computer. Data can then be graphed directly to Excel or other applications REED SD-4214 Features Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value Slim probe, ideal for grilles & diffusers Air velocity: m/S, FPM, Km/h, Knots, & MPH Air temperature (°C, °F Type K and Type J thermocouple thermometer Air Temperature uses a thermistor sensor for fast response time Real time SD memory card datalogger with a built-in clock and calendar Sampling time set from 1 second to 3600 seconds Meter can switch to a Manual Datalogging No extra software needed, just plug the SD card into the computer and it downloads directly to EXCEL SD card capacity: 1 GB to 16 GB Easy to read LCD with backlight Auto power off or manual power off Data hold, record max. and min. reading High accuracy microcomputer circuit Power by UM3/AA (1.5 V) x 6 batteries USB/RS232 Computer interface Separated probe for easy measurements of multiple environments Automatic temperature compensation for the anemometer and type K/J thermometer REED SD-4214 Specifications Air velocity is measured in m/s, fpm, km/h, mph or knots; Circuit: Custom microprocessor LSI circuit Display: 52mm x 38mm LCD with backlight Temperature units: (°C, °F) Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds Memory Card: SD memory card, 1 GB to 16 GB Sampling Time of Display: Approx. 1 second Data Output: USB/RS232 PC computer interface Temperature Range: 0-50°C (0-122°F) Resolution: 0.1°C/0.1°F Accuracy: ± 0.8°C/1.5°F Operating Temperature: 0-50°C (0-122°F) Operating Humidity: Less than 85% R.H. Power Supply: UM3/AA (1.5 V) x 6 batteries Weight: 515g/1.13lb Dimensions: Main instrument:203 x 76 x 38mm Telescope probe: 12mm Dia., 280mm to 940mm Length Includes: Telescope probe and a hard carrying case
