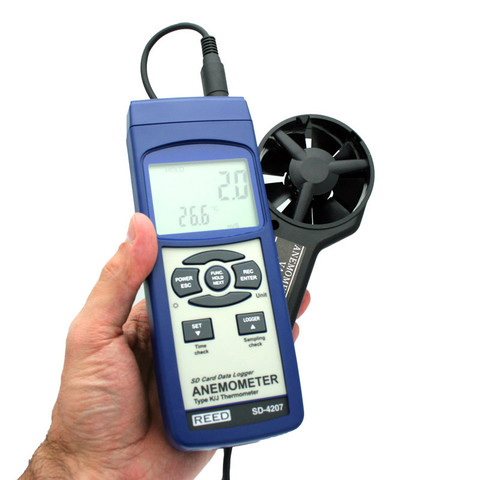

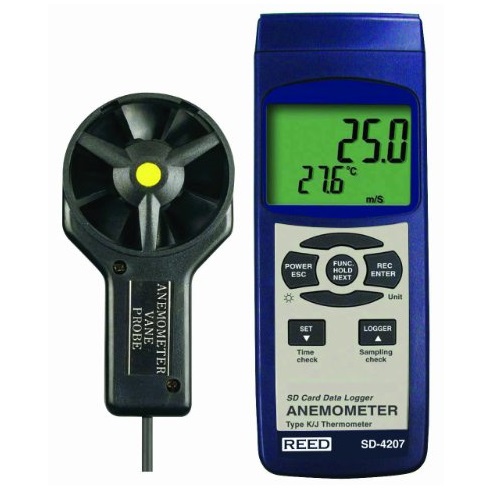

REED SD-4207 Thermo-Anemometer (Datalogger) This quality Reed SD-4207 wind anemometer is a versatile instrument for measuring, monitoring and recording air velocity and temperature for air quality diagnosis. With its thermistor sensor, the SD-4207 measures air temperature with fast response time. This thermo anemometer has a large multi-line backlight LCD display with simultaneous viewing of data and battery life. REED SD-4207 Thermo-Anemometer Features Air velocity: m/S, FPM, Km/h, Knots, & MPH Air temperature (°C, °F) Low-friction ball vane wheels ensures high accuracy in high & low velocities Type K and Type J thermocouple thermometer Air Temperature uses a thermistor sensor for fast response time Real time SD memory card datalogger with a built-in clock and calendar Sampling time set from 1 second to 3600 seconds Meter can switch to a Manual Datalogging No extra software needed, just plug the SD card into the computer and it downloads directly to EXCEL SD card capacity: 1 GB to 16 GB Easy to read LCD with backlight Auto power off or manual power off Data hold, record max. and min. reading High accuracy microcomputer circuit Power by UM3/AA (1.5 V) x 6 batteries USB/RS232 Computer interface Separated probe for easy measurements of multiple environments Automatic temperature compensation for the anemometer and type K/J thermometer REED SD-4207 Thermo-Anemometer Specifications Circuit: Custom microprocessor LSI circuit Display: 52mm x 38mm LCD with backlight Air velocity units: m/S, Km/h, FPM, Knots, Mph Temperature units: (°C, °F) Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds Memory Card: SD memory card, 1 GB to 16 GB Sampling Time of Display: Approx. 1 second Data Output: USB/RS232 PC computer interface Temperature Range: 0-50°C (0-122°F) Resolution: 0.1°C/0.1°F Accuracy: ± 0.8°C/1.5°F Operating Temperature: 0-50°C (0-122°F) Operating Humidity: Less than 85% R.H. Power Supply: UM3/AA (1.5 V) x 6 batteries Weight: 515g/1.13lb Dimensions: Main instrument :203 x 76 x 38mm Anemometer Sensor Head: 72mm Dia. Includes: Anemometer probe and a hard carrying case
