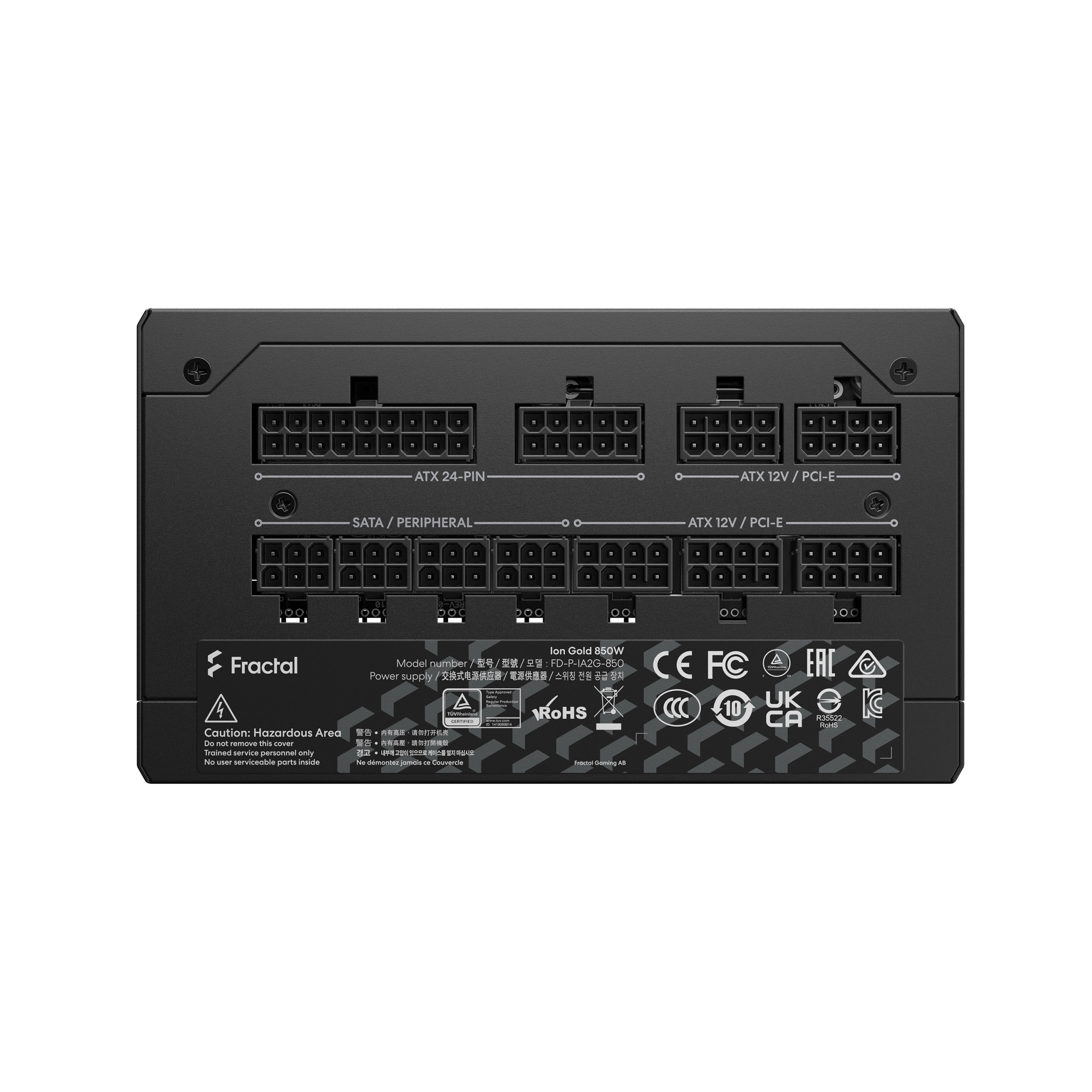

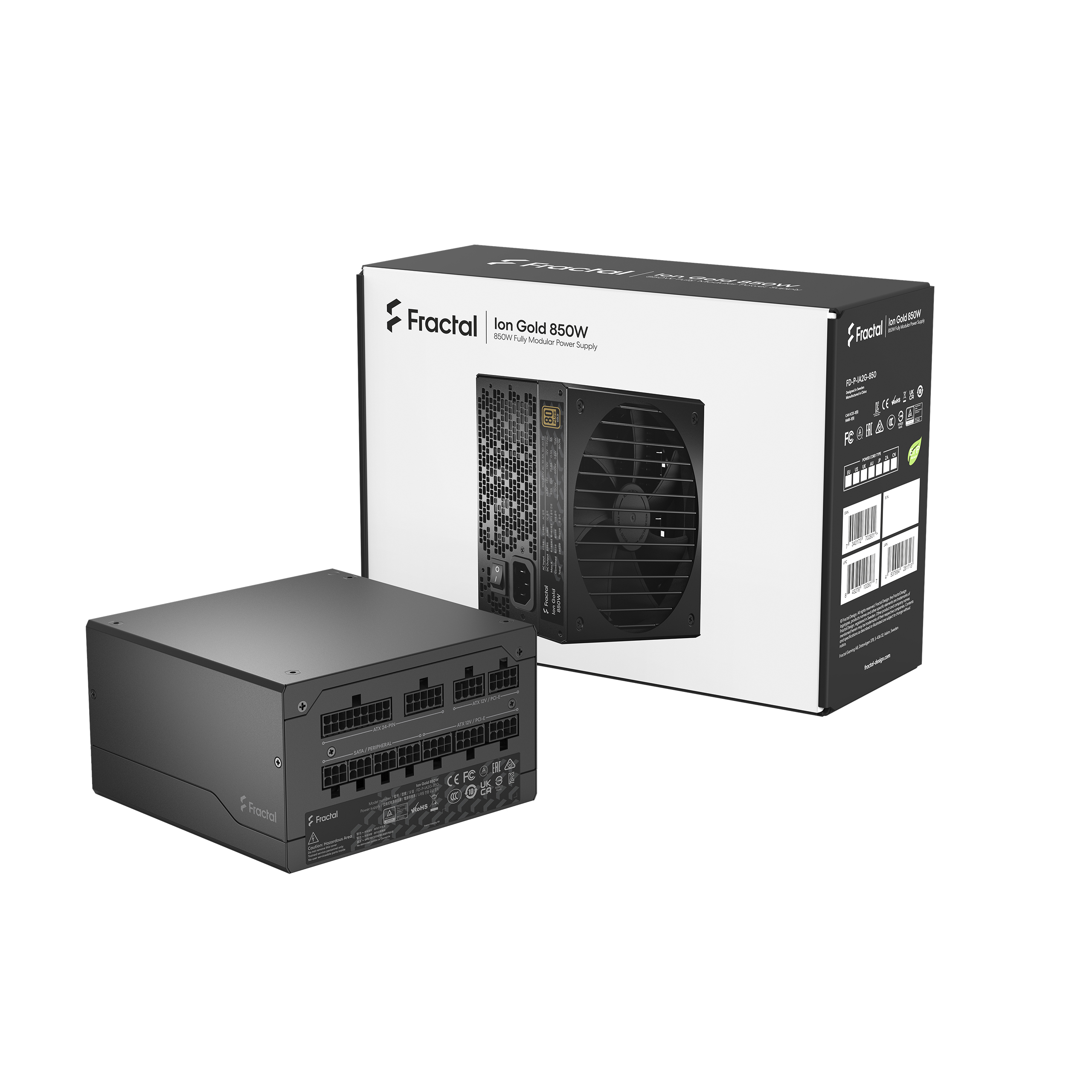

⚙️ Key Features 80 PLUS® Gold Certified: High efficiency with lower heat output Fully Modular: Use only the cables you need for cleaner cable management Premium Cooling: 140 mm Fractal Design Dynamic Series LLS bearing fan 100,000-Hour Life Expectancy: Built with high-quality capacitors for long service life Wide Operating Range: 40°C full load, 50°C at 80% load �� Protection Features Over Voltage Protection (OVP) Under Voltage Protection (UVP) Over Power Protection (OPP) Short Circuit Protection (SCP) Over Current Protection (OCP) Over Temperature Protection (OTP) �� Connector Configuration Connector Quantity Length / Configuration ATX 24-pin 1 500 mm EPS/ATX12V 2 600 mm each PCIe 6 2 pin 6 550 mm 150 mm SATA 8 500 mm 3×150 mm Peripheral (Molex) 3 500 mm 2×150 mm �� Specifications Input Voltage: 100–240V AC Input Current: 10A / 5A Input Frequency: 50–60 Hz DC Output: 3.3V / 5V: 22A each (combined 120W) 12V: 70.8A (849.6W) -12V: 0.3A 5Vsb: 3A Total Power Output: 850W Standby Efficiency: ErP 2013 (<0.45W @ 230V AC) Sleep State Compatibility: C6/C7 ready �� What’s in the Box Fractal Ion Gold 850W PSU Modular Cable Set Velcro Cable Ties Screws AC Power Cord (Localized) User Manual �� Dimensions & Weight PSU Dimensions (LxWxH): 150 x 150 x 86 mm Net Weight: 2.41 kg Package Dimensions: 300 x 210 x 110 mm Gross Weight: 2.81 kg ✅ Certifications & Compliance CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE �� Product Codes & Barcodes Product Code: FD-P-IA2G-850 EAN: 7340172702801 UPC: 843276102807 JAN: 4537694281713
