XPG FUSION 1600 TITANIUM Power Supply

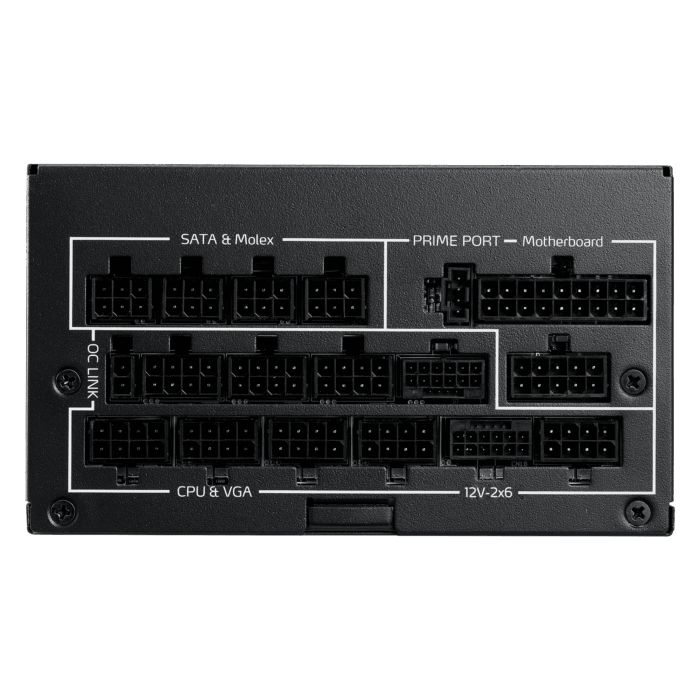

Technical Specifications Product Type Power Supply Unit (PSU) Model XPG FUSION 1600 TITANIUM ATX Standard ATX 3.1 Efficiency Certifications 80 Plus Titanium, Cybenetics Titanium Total Output Power (1) 1300W, (2) 1600W Power Excursion 3760W (up to 235% of rated power for 100μs) Input Voltage (1) 100–240V, (2) 115–240V Input Current (1) 15A | 8A, (2) 15A | 8A Input Frequency (1) 47–63Hz, (2) 47–63Hz PFC > 0.99 DC Output Rails 5V, 3.3V, 12V, -12V, 5Vsb Protections OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP Operating Temperature 50°C Fan 135 x 135 x 25mm Fan Bearing Double Ball Bearing Fan Speed 2700 ± 10% RPM MTBF 125,000 hours @ 25°C Dimensions (L x W x H) 210 x 150 x 86mm Weight Product cables: 2.5kg 1.84kg (±5%) Connectors ATX 24-pin: 1 EPS 8-pin: 2 PCI-E 6 2-pin: 10 12V-2×6 / 12VHPWR (12 4) 600W: 2 Molex 4-pin: 4 Floppy 4-pin: 1 Regulatory Certifications CE, CB, FCC (IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, CQC, EAC Warranty 12 Years Product Description Performance The XPG FUSION 1600 TITANIUM is built for flagship gaming and workstation PCs that demand stable power delivery under sustained and burst loads. With ATX 3.1 compliance and a rated output up to 1600W, it is designed to handle modern high-end GPUs and multi-core CPUs while maintaining tight regulation and high conversion efficiency. Titanium-rated efficiency helps reduce heat output and power waste, which is especially valuable for long rendering sessions, streaming builds, and always-on productivity systems. A high PFC value greater than 0.99 improves power utilization and supports clean, consistent operation across a wide input range. The PSU’s specified power excursion capability supports transient spikes common with top-tier graphics cards, helping minimize shutdowns under sudden load changes. Display Support As a power supply, the FUSION 1600 TITANIUM does not provide display outputs; instead, it ensures your GPU and platform receive the correct power and connectors for stable gaming and professional graphics workloads. With dual 12V-2×6 / 12VHPWR (12 4) 600W connectors alongside multiple PCI-E 6 2-pin connectors, it is well suited for modern discrete graphics configurations and power-hungry multi-GPU or accelerator-based systems where applicable. Power & Compatibility Designed to the ATX 3.1 standard, this PSU is a strong match for current-generation Intel and AMD desktop platforms and high-performance GPUs that experience sharp transient power spikes. Connector coverage includes 1x ATX 24-pin for the motherboard, 2x EPS 8-pin for CPU power delivery, 2x 12V-2×6 / 12VHPWR (12 4) connectors rated at 600W each, and 10x PCI-E 6 2-pin connectors for flexible graphics and add-in card support. It also provides 4x Molex and 1x Floppy connector for legacy peripherals, controllers, and accessories. The physical size of 210 x 150 x 86mm requires a compatible chassis with sufficient PSU bay clearance, which is common in many enthusiast mid-tower and full-tower cases. Cooling & Build Cooling is handled by a 135mm fan (135 x 135 x 25mm) using a double ball bearing design for durability and long service life under higher operating temperatures. The fan is specified up to 2700 RPM, enabling strong airflow when the PSU is supplying heavy system loads such as 4K gaming, GPU rendering, or CPU-intensive compilation. With an operating temperature rating of 50°C and an MTBF of 125,000 hours at 25°C, the unit is positioned for reliability in demanding environments. Comprehensive protection circuitry including OCP, OVP, OPP, OTP, UVP, SCP, NLO, and SIP helps safeguard components during abnormal electrical conditions and improves long-term system stability. What’s in the Box Power supply unit Power cables set (modular cables as applicable for the model) Mounting screws User documentation
