$ 92.92

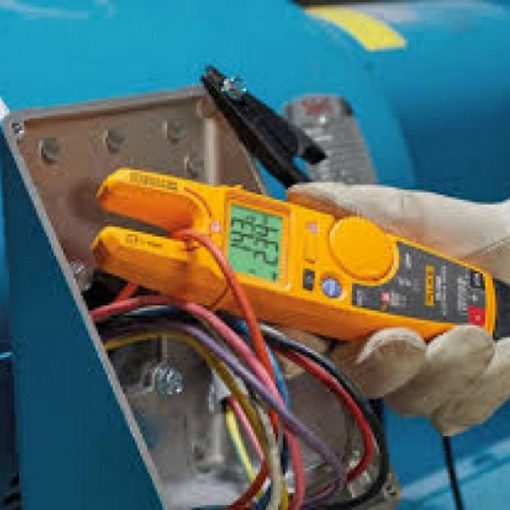

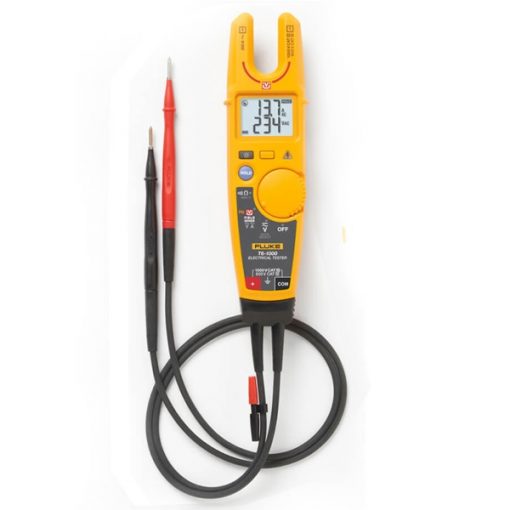

The Fluke T6-1000 Electrical Tester with FieldSense Technology lets you test where it used to be impossible. Crowded junction boxes, conductors with inaccessible end points, all without test leads! Be Safer: Measure voltage to 1000V ac through the open fork, without test leads. Be Faster: No need to open safety covers or remove wire nuts. Be More Efficient: Simultaneously measure voltage and current. Be Everywhere: Widest open fork in the industry, measure 120 mm² wires up to 200 A. The new Fluke T6-1000 Electrical Testers with FieldSense technology let you measure voltage the same way you measure current, without test lead contact to live voltage. Just slide the open jaw over a conductor and see the voltage level. Much more than just a voltage detector, these new testers give you a reliable voltage and current measurement, without test leads, and without contacting a bare, metal conductor* *Requires capacitive path to ground, provided through user in most applications. Ground connection via test lead may be required in some situations. Fluke T6-1000 Applicati0ns: Basic troubleshooting Verification of voltage and continuity values Rapidly checking voltage and current measurements without test leads Verification of individual circuits The front-line, go-to tool that fits in a pocket Fluke T6 Features FieldSense technology for AC voltage and current measurement without making electrical contact True RMS (TRMS) Simultaneous voltage and current display Frequency measurement 1000 V ac 200 A ac Resistance to 100 kΩ Works with 120 mm² wires(17.8 mm jaw opening) Easy to read display with backlight Withstands a 10 foot (3 m) drop Detachable SlimReach probe tips are customized for national electrical standards Test leads accept Fluke accessory test clips TPAK Compatible Fluke T6 Highlights FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage Simultaneous voltage and current display – shows all power supply measurements at a glance for efficient troubleshooting 1 to 1000 V ac or dc 0.1 to 200 A ac Resistance 1 Ω to 100 kΩ (T6-1000) Frequency measurement 45 Hz to 66 Hz Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening HOLD button temporarily freezes the reading for easy viewing Easy to read display with backlight Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation Requires capacitive path to ground, provided through user in most applications. Ground connection via test lead may be required in some situations. Included with the T6: Fluke T6-1000 Electrical Tester Attached Test Leads Removable 4mm Test Probes Quick Reference Guide Users Manual Fluke T6-1000 Specifications Function Requires test leads Range Resolution Accuracy[1] FieldSense ac voltage true-rms No 1000 V 1 V ± (3 % 3 counts) 45 Hz – 66 Hz[2][3] FieldSense ac current true-rms No 200.0 A 0.1 A ± (3% 3 counts) 45 Hz – 66 Hz FieldSense frequency (Hz) No 45 Hz – 66 Hz 1 Hz ± (1% 2 counts)[3] Volts ac true-rms Yes 1000 V 1 V ± (1.5% 2 counts) 45 Hz – 66 Hz
