$ 94.30

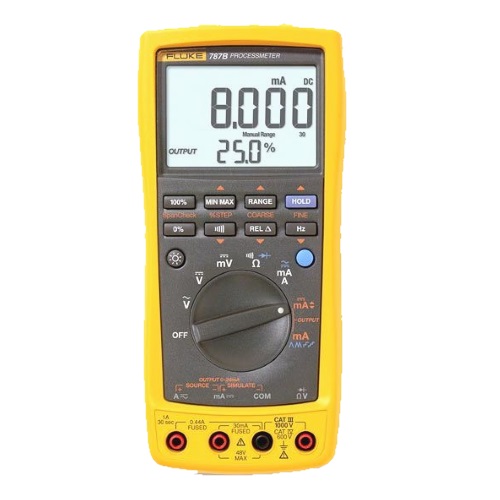

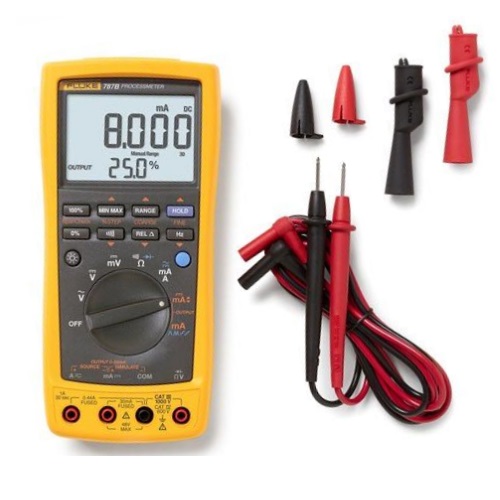

Fluke 787B ProcessMeter/DMM/Loop Calibrator The Fluke 787B combines a loop calibrator with a fully-functional 1000V True RMS digital multimeter to give process technicians double the power in one tool. The FLUKE 787B is a precision 1000V, 440mA true-RMS digital ProcessMeter. This ProcessMeter doubles troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. It can measures AC and DC volts, AC and DC current, resistance, continuity and frequency. The 787B measures DC voltage (400.0mV, 4.000V, 40.00V, 400.0V, 1000V), AC (true-rms) voltage (400.0mV, 4.000V, 40.00V, 400.0V, 1000V), DC current in mA (30.000mA), DC current in Amps (1.000A (0.440A continuous)), AC current in Amps (1.000A (0.440A continuous)), resistance (400.0 ohm, 4.000K, 40.00K, 400.0K, 4.0M, 40M) and frequency (199.99Hz, 1999.9Hz, 19.999KHz). Fluke 787B ProcessMeter/DMM/Loop Calibrator Features: 0.05% DC current accuracy Frequency measurement to 20kHz Min/Max/Average/Hold/Relative modes Diode Test and Continuity Beeper Simultaneous mA and % of scale readout 20 mA DC current source / loop calibrator / simulator Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp Externally accessible battery for easy battery changes IEC61010 Category IV 600 V rated DMM and loop calibrator in one compact tool Adds Fluke Connect connectivity to the 787 with use of the IR3000FC communication module Improvements over legacy 787 include bigger, brighter display, better mA drive, improved step ramp and added span check DMM and loop calibrator in one tool Clear LCD with backlight; 4,000 counts (30,000 counts for dc current) Externally accessible battery for easy battery changes 1000V overload protection on V, ohms, frequency 150V overload protection on mA, backed up by 440 mA 1000V fuse 25% Manual Step plus Auto Step and Auto Ramp on mA output Simultaneous mA and % of scale readout on mA output Min/Max/Average/Hold/Relative modes Applications Test and Measurement Process Instrumentation Electrical Industrial Control
