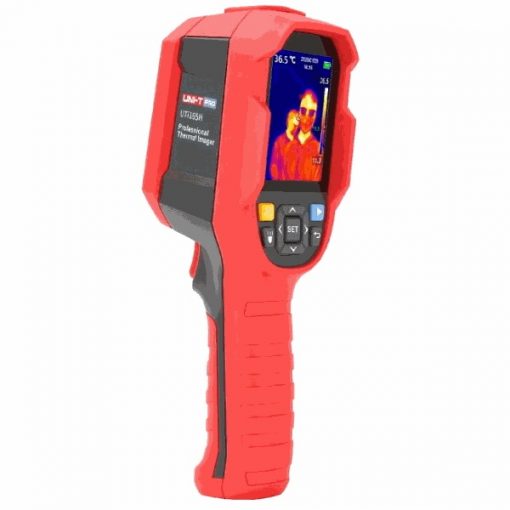

UNI-T UTi165H Infrared Thermal Imager for Human Body Temperature

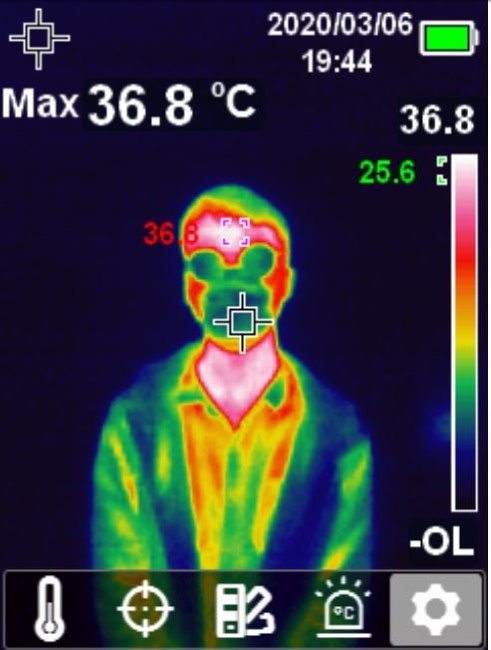

UNI-T UTi165H Infrared Thermal Imager for Human Body Temperature The UNI-T UTi165H Thermal Imager has a temperature measurement range of 30˚~45˚C and is suitable for Fever Detection. It also has a HI/LO Temperature Alarm, central point temperature measurement, high/low temperature auto tracking and real-time temperature display. PC software for image analysis is available and the UNI-T UTIi65H supports SD card and USB import; with powerful image processing capability. UNI-T UTi165H Specifications Model UTi165H Sensor Uncooled focal plane Temperature range 30˚C~45˚C Resolution 0.1˚C Accuracy ±0.5˚C @1m Minimum measuring distance 15cm Temperature measurement response time ≤500ms (95% of reading) Pixel of thermal imagery 19200 (160×120) Pixel dimensions 12μm Swatches Black white, red white, blue white，iron red, rainbow, Bandwidth of infrared spectroscopy 8~14μm Field of view (FOV) 56°(H) × 42°(V) Instantaneous field of view (IFOV) 6mrad Thermal imaging sensitivity ＜50mk Frame rate ＜9Hz Temperature display Center temperature measurement and high temperature tracking (default) Image format BMP Image modes Thermal imagery Temperature measuring point Besides central point, 3 temperature measuring points can be added Display resolution 320×240 PC analysis software (PC) Yes Data communication Type-C USB Auto power off Selectable (5min, 10min, 30min), 30min auto power off (default) Service time ≧6 hours Charging time 4 hours Image storage Micro SD card General Characteristics Power A single Li-ion 3.7V/5000mAh 26650 battery Display 2.8″ TFT LCD Product color Red & grey Product size 236mm x 75.5mm x 86mm Standard accessories Manual, Type-C USB cable, 16GB TF card Standard carton gross weight 2.2kg
