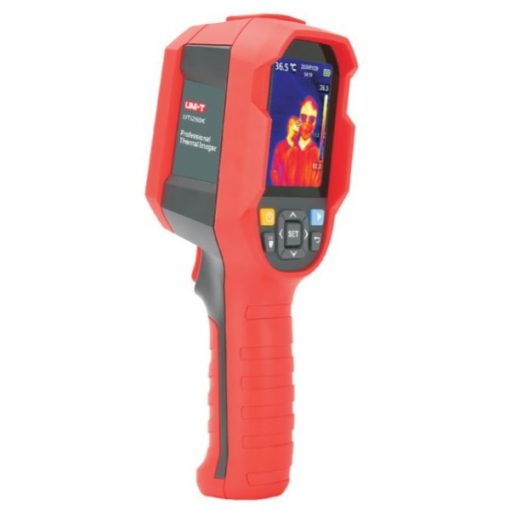

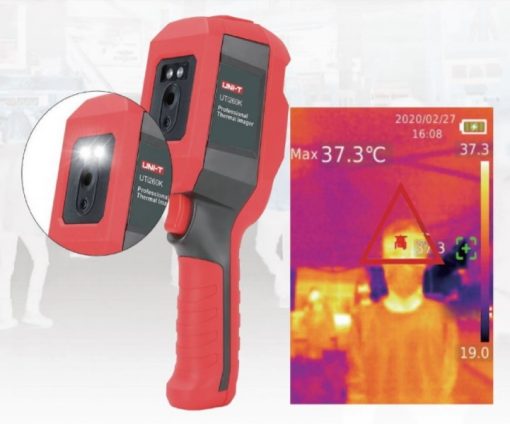

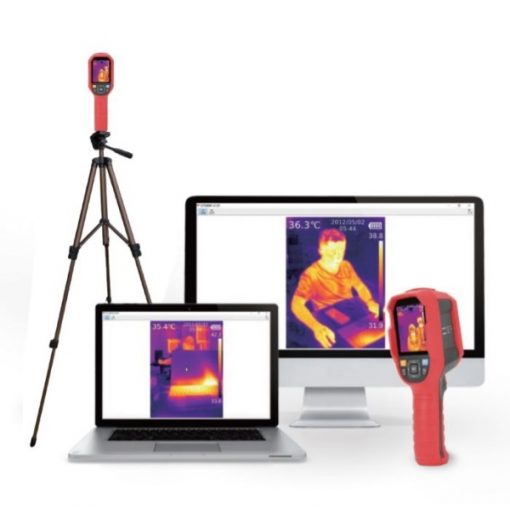

The UNI-T UTi260K Thermal Imager has been designed specifically for body temperature measurement. With a high-temperature alarm for body temperatures above 37.3 C it enables quick & easy screening of individuals for high temperatures. High-temperature alarm The customized high-temperature limit can be set to 37.3℃. For the temperature ≥37.3℃, indicator light and screen will indicate high-temperature alarm, which can effectively and quickly screen individuals with abnormal temperature. Real-time image transmission Set the USB mode to USB camera, connect the USB cable to the computer to mirror the upper computer software by real-time image transmission. UTi260K Thermal Imager Specifications: Model UTi260k Sensor Un-cooled focal plane array Temperature range 30℃~45℃ Resolution 0.1˚C Accuracy ±0.5˚C @1m Optimal measuring distance 1 meter Temperature measurement response time ≤500ms (95% of reading) Thermal resolution 49152 (256×192) Pixel dimensions 12μm Palettes Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow Bandwidth of infrared spectroscopy 8~14μm Field of view (FOV) 56°(H) × 42°(V) Instantaneous field of view (IFOV) 6mrad Thermal imaging sensitivity ＜50mk Frame rate ＜25Hz Temperature display Center temperature measurement and high-temperature tracking (default) Image format BMP Image modes Thermal camera, visible camera, image blending Temperature measuring point Besides central point, 3 temperature measuring points can be added Visual camera √ Resolution of visible camera 640×480 Display resolution 320×240 Image blending 0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera) PC analysis software (PC) √ Real-time image transmission PC software image projection Data communication Type-C USB Auto power off Selectable (5min, 10min, 30min), 30min auto power off (default) Battery life ≧6 hours Charging time 4 hours Real-time image transmission PC software image projection Image storage Micro SD card General Characteristics Power A single Li-ion 3.7V/5000mAh 26650 battery Display 2.8″ TFT LCD Product colour Red & grey Product size 236mm x 75.5mm x 86mm Standard accessories Manual, Type-C USB cable, 16GB TF card Added MyMeter Accessories Tripod, 5 meter USB Extension Cable, Calibration Certificate
