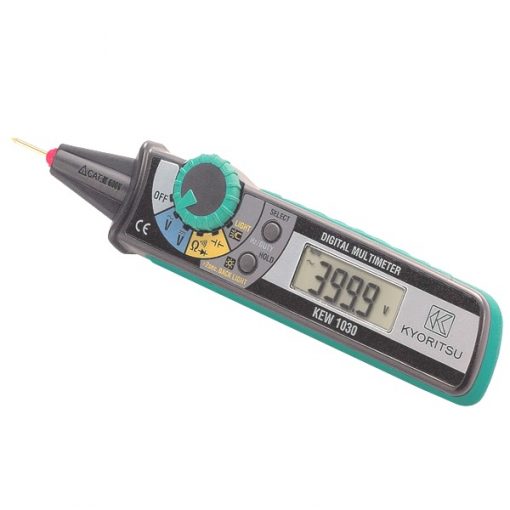

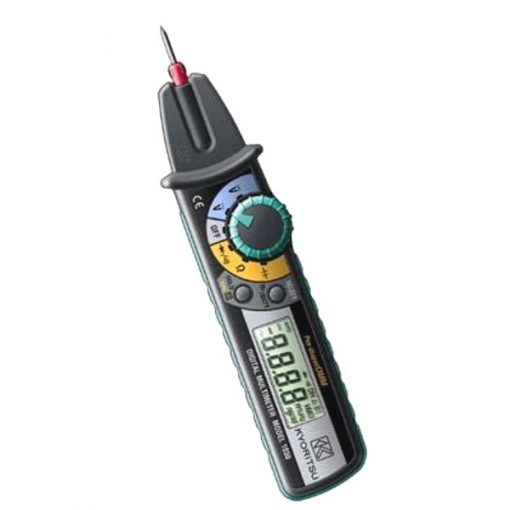

Kyoritsu 1030 Digital Pen Multimeter Features: Compact in Size, Light in Weight and Simple in Use. Double moulding provides comfortable and good feeling in hand. Penlight illuminates brightly the point to be measured, even in dark place. Backlight LCD is highly visible, even in darkness. Auto power-off function saves the battery life. Unique wrapping mechanism for test lead in the rear side compartment. Unique protection mechanism for the test prod for safety. All ranges including Ohm range are protected against overload voltage of 600V. Designed in conformity with International safety standards IEC61010-1:2001 CAT.III 600V. Kyoritsu 1030 Digital Pen Multimeter Specifications: DC V 400m/4/40/400/600V (5 Range auto) ±0.8%rdg ±5dgt(400mV – 400V) ±1.0%rdg ±5dgt(600V) AC V 4/40/400/600V (4 Range auto) ±1.3%rdg ±5dgt (4/40V) (50/60Hz) ±1.6%rdg ±5dgt (400/600V) (50/60Hz) Ω 400/4k/40k/400k/4M/40MΩ (6 Range auto) ±1.0%rdg ±5dgt (400Ω – 4MΩ) ±2.5%rdg ±5dgt (40MΩ) Continuity buzzer Buzzer sounds when resistance is 120Ω or less. Diode test Test voltage approx. 0.3 – 1.5V Capacitance 50n/500n/5µ/50µ/100µF (5 Range auto) ±3.5%rdg ±10dgt (50nF) ±3.5%rdg ±5dgt (500n – 50µF) ±4.5%rdg ±5dgt (100µF) Frequency 5/50/500/5k/50k/200kHz ±0.1%rdg ±5dgt (Measurable input: 1.5Vrms or more) DUTY 0.1 – 99.9% ±2.5%rdg ±5dgt (Pulse width / Pulse cycle) Measurement functions The measured value can be hold by pressing Data hold button Other functions When the battery voltage drops to 2.4V±0.2V or less Built-in Applicable standards IEC 61010-1: 2001 CAT III 600V IEC 61010-031 IEC 61326-1 Power source Button type battery LR44 (SR44)1.5V × 2 Dimensions 190(L) × 39(W) × 31(D)mm Weight Approx. 100g (including batteries) Included Accessories Carrying case, LR44 (1.5V) × 2, Instruction manual
