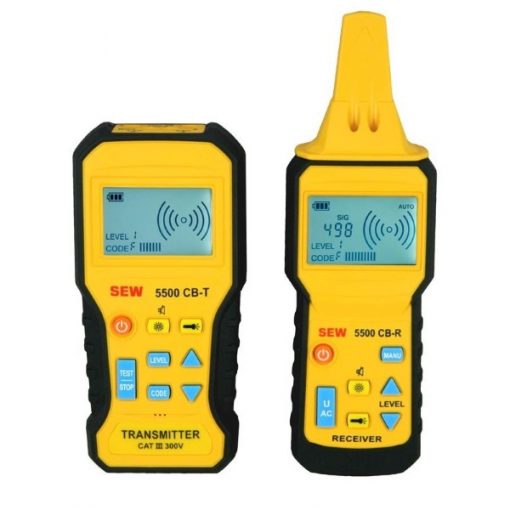

The SEW 5500 CB is a very versatile general purpose cable locator that is ideal for tracing cables in walls and underground and for locating fuses & breakers at the switchboard for these cables. SEW 5500 CB Transmitter Features: ● The 5500 CB transmitter is a great tool for locating and identifying cables and individual conductors. ● Designed for locating unenergized cables and powered cables. ● Voltage measurement for cables : ACV 12V~300V DCV 12V~300V ● Signal Transmission ●Transmission Power Level Selection (includes 1, 2, 3) ● Transmission Signal Code Selection (includes F, E, H, d, L, C, O, A) ● Flashlight & Back Light function. ● The Silent Mode (Disable Button Beep). ● The Level Bar Display on the LCD Screen (the transmission power level indication). ● The Action Wave Display on the LCD Screen (when the signal is transmitted). ● Auto power off function. SEW 5500 CB Receiver Features: ● The 5500 CB receiver is designed to identify and trace wires or cables. ● Designed for locating unenergized cables and powered cables. ● Signal Detection (includes Level, Code, Value) ● Automatic Mode ● Manual Mode (There are 9 levels to select). ● UAC Mode (AC Power Line Detection) ● Flashlight & Back Light function. ● The Silent Mode (Disable Button Beep & Frequency Tone) ● The Danger Symbol is to indicate the AC voltage on the Line. ● The Level Bar Display on the LCD Screen for the signal value & the UAC power value. ● Auto power off function. SEW 5500 CB SPECIFICATIONS: Transmitter Output signal frequency 125kHz Voltage measurement range 12~300V AC / DC Accuracy ±(2%rdg 2dgt) Display LCD shows function and bargraph Power source 1.5V (AAA) battery × 6 Fuse 690V/0.5A (6.3 × 32mm) Operating temperature 0°C~40°C & humidity 80% R.H. Max. Storage temperature -10°C~50°C & humidity 80% R.H. Max. Dimensions 188(L)×90(W)×47(D)mm Weight Approx. 389g (battery Included) Receiver Detection depth < 50cm Display LCD shows function and bargraph Power source 1.5V (AAA) battery × 6 Operating temperature 0°C~40°C & humidity 80% R.H. Max. Storage temperature -10°C~50°C & humidity 80% R.H. Max. Dimensions 247(L)×78(W)×45(D)mm Weight (battery included) Approx. 324g
