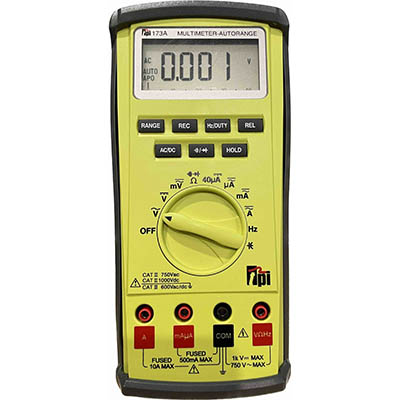

Description LCD Display: 4000 count with 42 segment bar graph. REC (Record Mode): Store minimum and maximum readings over a measurement period. RANGE: Manually select the appropriate range AC/DC: Manually select AC or DC measurement function. Continuity Buzzer and Diode Test: Toggle between continuity buzzer or diode test on Ohm function. High Resolution DCmV Range: Additional 40 millivolt range with 0.01mV resolution for improved accuracy when performing low voltage measurements. ACV (AC Volts): Measure the voltage of ABS wheel sensors. DCV (DC Volts): Measure the voltage of circuits and sensors. Hz/Duty (Duty Cycle): Measure in percent the “ON” time of sensors or other devices. REL (Relative Mode): Factor out lead resistance for improved low ohm measurements or compare readings to a known standard. Can also be used for differential measurements. HOLD: Lock the reading on the display for hard to read locations for future reference. Ω (Ohms, Resistance): Measure the resistance of spark plug wires, coils, sensors, and continuity of wiring. AC/DC Current Functions (Amps): Measure the parasitic draw from the battery with ignition off. Hz (Frequency): Measure the frequency of sensors and signals. CAP (Capacitance): Measure the capacitance of condensors or capacitors found in today’s hybrid automobiles. Built in Tilt Stand: The tilt stand is built into the instrument housing. Separate Fuse/Battery Compartment: Easily replace fuses and batteries in this separate compartment .
