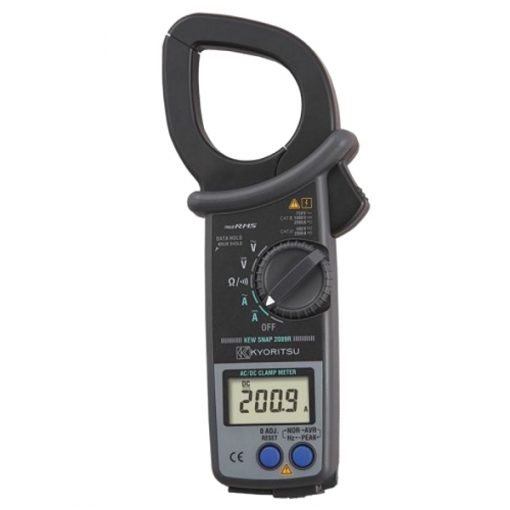

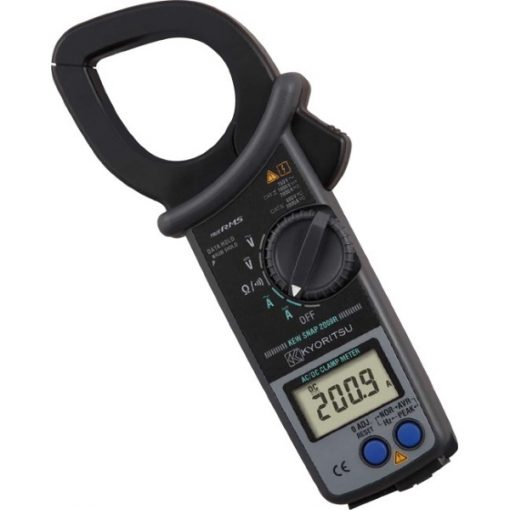

Kyoritsu 2009R KEW 2009R AC/DC Digital Clamp Meter The Kyoritsu 2009R AC/DC Digital Clamp Meter has teardrop-shaped jaws for ease-of-use in accessing crowded cable areas and other tight situations. Its data hold function allows easy readings in dimly-lit or otherwise hard-to-read locations. The Kyoritsu 2009R provides a wide measuring range and takes True RMS readings of AC current or voltage with distorted waveform. Kyoritsu 2009R Features: CAT IV clampmeter measures voltage and current in both very low and high power circuits Accurate True RMS reading of AC current or voltage with distorted waveform Measures AC and DC currents up to 2000 A Provides frequency reading in AC current or voltage measurement Auto-ranging feature on current, voltage and resistance ranges Dynamic range of 4200 counts full scale Wide frequency range from 20 Hz to 1 kHz Easy continuity checking, with bleeper Average function for easy reading of input with large variation Peak function for measuring a peak of input Auto-null function for easy zero adjustment Provides recorder output for long hour monitoring Auto-power-off feature to conserve battery power 55mm diameter teardrop-shaped jaws Shrouded jaws enhance safety Terminal cover prevents use of incorrect terminal Dimensions 250 x 105 x 49 mm Weight 540 g approximately (including batteries) Kyoritsu 2009R Safety Catagory: IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution Degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1 Kyoritsu 2009R Specifications: AC A 400.0/2000A ±1.3%rdg±3dgt (0 – 400.0A, 150 – 1700A) (45 – 66Hz) ±2.0%rdg±5dgt (0 – 400.0A, 150 – 1700A) (20Hz – 1kHz) ±2.3%rdg±3dgt (1701 – 2000A) (45 – 66Hz) DC A 400.0/2000A±1.3%rdg±2dgt AC V 40.00/400.0/750V ±1.0%rdg±3dgt (45 – 66Hz) ±1.5%rdg±5dgt (20Hz – 1kHz) DC V 40.00/400.0/1000V±1.0%rdg±2dgt Ω 400.0/4000Ω ±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V) Continuity buzzer Buzzer sounds below 20Ω Hz 10.0 – 4000Hz±1.5%rdg±5dgt (Input sensitivityCurrent: more than 40AVoltage: more than 10V) Conductor size Ø55mm max. Output Recorder : DC400mV against AC/DC400.0A DC200mV against AC/DC2000A Applicable standards IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1 Power source R6 (1.5V) × 2 Dimensions 250(L) × 105(W) × 49(D)mm Weight Approx. 540g (including batteries) Included Accessories 7107A (Test leads), 8201 (Output plug), 9094 (Carrying case) R6 (AA) (1.5V) × 2, Instruction Manual Optional Accessories 7256 (Output cord)
