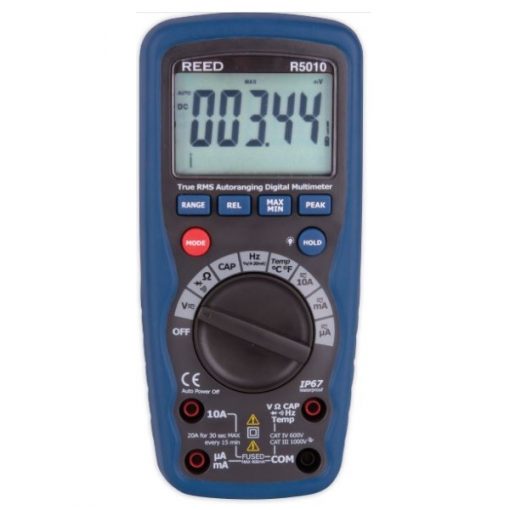

REED R5010 True RMS Waterproof Digital Multimeter

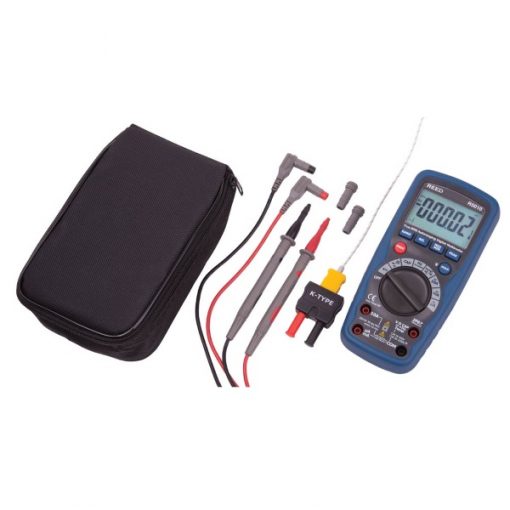

This REED R5010 True RMS Waterproof Digital Multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. The REED 5010 also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph. REED 5010 Features: True RMS measures frequency, resistance, capacitance and temperature Diode check and continuity functions Backlit LCD readout with analog bar graph 4-20 mA process loop measurements with % readout Data hold, Max/Min and Peak capture mode IP67 dust and waterproof Cat. IV 600V, Cat. III 1000V safety rating What’s included with the REED R5010 TRMS AC/DC Multimeter with Temperature Temperature Input Adapter Thermocouple Wire Probe (Type K) Test Leads Battery Weatherproof plugs Carrying Case REED R5010 Specifications AC/DC Voltage Range AC: 400mV, 4, 40, 400, 1000V DC: 400mV, 4, 40, 400, 1000V Accuracy AC: 400mV ±(1.0% rdg. 5 dgt.) 4, 40, 400, 1000V ±(1.0% rdg. 3 dgt.) DC: 400mV/4,40,400V ±(0.06% rdg. 2 dgt.) 1000V ±(0.1% rdg. 5 dgt.) Resolution AC: 0.1mV, 0.001, 0.01, 1V DC: 0.01mV, 0.0001, 0.01, 0.1V AC/DC Current Range 400, 4000µA, 40, 400mA, 10A Accuracy AC: ±(1.5% rdg. 3 dgt.) DC: ±(1.0% rdg. 3 dgt.) Resolution AC: 0.1, 1µA, 0.01,0.1mA, 0.01A DC: 0.01, 0.1µA, 0.001,0.01mA, 0.001A Resistance Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ Accuracy 400Ω: ±(0.3% rdg. 9 dgt.) 4, 40, 400kΩ, 4MΩ: ±(0.3% rdg. 4 dgt.) 40MΩ: ±(2.0% rdg. 10 dgt.) Resolution 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.001MΩ Capacitance Range 40, 400nF, 4, 40, 400, 4000µF, 40mF Accuracy 40, 400nF: ±(3.5% rdg. 40 dgt.) 4, 40, 400µF: ±(3.5% rdg. 10 dgt.) 4000µF, 40mF: ±(5% rdg. 10 dgt.) Resolution 0.001, 0.01nF, 0.0001, 0.001, 0.01, 0.1µF, 0.001mF Frequency Range 40, 400Hz, 4, 40, 400kHz, 4, 40, 100MHz Accuracy ±(0.1% rdg. 1 dgt.) Resolution 0.00, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001, 0.01MHz Temperature Range -50 to 1000°C Accuracy ±(1.0% rdg. 4.5°F) ±(1.0% rdg. 2.5°C) Resolution 1°F, 1°C 4-20mA% Range -25 to 125% Accuracy ±(50 dgt.) Resolution 0.01% General Specifications Range Selection Autoranging/Manual True RMS Yes Display 40,000 count LCD display Display Hold Yes Max/Min Yes Peak Hold Yes Relative Mode Yes Diode Test Yes Backlit Display Yes Digital Analog Bargraph Yes Continuity Check Audible signal if resistance ≤35Ω Duty Cycle Yes (0.1 – 99.9%) Kick Stand Yes Auto Power Off Yes (after 15 minutes) Power Supply 9V Battery Low Battery Indicator Yes Fuse Protection Yes Replaceable Test Leads Yes Overvoltage Category CAT. IV 600V, CAT. III 1000V Product Certifications CE, IP67, Drop Tested (2M) Operating Temperature 5 to 40°C Storage Temperature -20 to 60°C Dimensions 187 x 81 x 50mm Weight 345g
