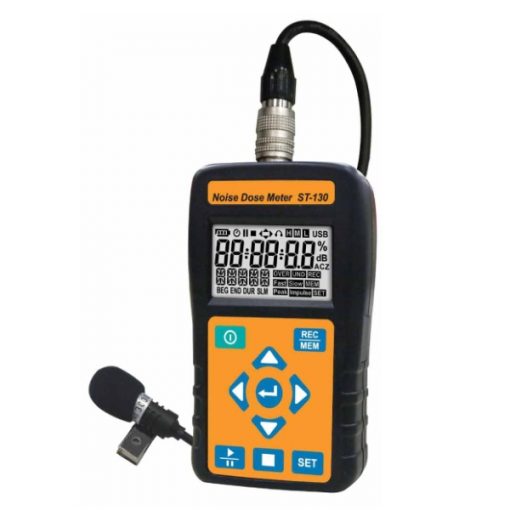

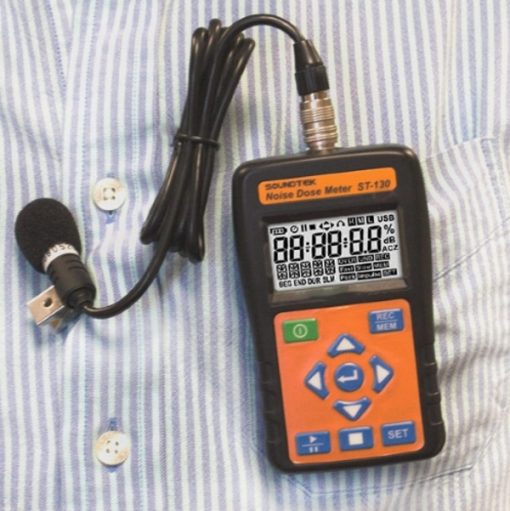

The Tenmars ST-130 Noise Dose Meter (dosimeter) is a specialised Sound Level Meter that is designed to measure the noise exposure that a person has been subject to over a period of time; the measurement are normally performed in order to meet current Health and Safety regulations. Noise dose meters are also referred to as personal noise dosimeters or personal dosimeters. With six built-in standard dose measurement setups (OSHA, MSHA, DOD, ACGIH, ISO85, ISO90), the Tenmars ST-130 Noise Dose Meter is the ideal instrument for performing OSHA and IEC Noise accumulation surveys. This noise dosimeter comes with a USB download cable and CD software for downloading the measured data. The meter can also be used in SLM (Sound Level meter Mode) Tenmars ST-130 Noise Dose Meter Applications: Evaluation of environmental noise Measurements of noise at workplaces, Assessment of product noise. Tenmars ST-130 Front Panel: Tenmars ST-130 Technical Specifications Display Single LCD MAX reading 999999 Display Refresh Rate 1 Time/sec Standards IEC 61252-1993 IEC 61672-1-2003 ANSI S1,25-1992 ANSI S1,4-1983 ANSI S1,43-1997 Microphone(ST-130S) 1/2” pre-polarized condenser microphone build in preamplifier: 1V/Pa@250HZ, frequency range: 20 Hz~12.5 kHz, Thermal noise: <25 dB(A) Microphone(ST-130) 1/2 inch Electret condenser microphone Measurement Items(NDM) Doses%, Lxyp, Lxmax, Lxmin, Lxeq, SEL(LAE), Peak, LAVG, TWA, LEP, LN% Measurement Items(SLM) Lxyp,Lxmax,Lxmin,Lxeq,SEL(LAE),Peak Measurement Range 30dB to 130dB (A) 35dB to 130dB (C) 40dB to 130dB (Z) Dynamic Range 60 dB Accuracy ±1.5dB@94dB 1KHZ Internal memory MAX Datalogger data:10000(NDM); 1000000(SLM) Maximum Peak C Weighting 90~143 dB Sound Level Measurement Time Weighting Fast, Slow, Impulse, Peak Frequency Weighting A/C/Z Frequency Range 20Hz~8KHz Starting Time ҕ10 Second Battery Life(ST-130) 24 hours ( 9V×1 battery Alkaline ) Battery Life(ST-130S) 20 hours ( 9V×1 battery Alkaline ) Dimensions 113(L) x 65(W) x 34(H) mm NOTE: Environmental conditions: temperature 23° C ± 5° C, relative humidity < 80%rh.
