EXTECH MG302 13 Function Wireless True RMS MultiMeter/Insulation Tester

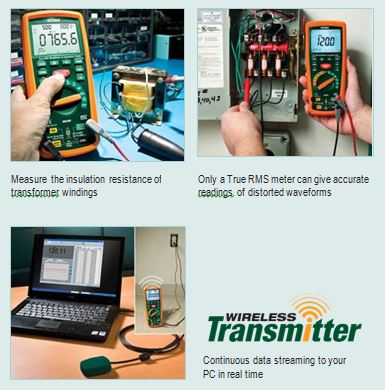

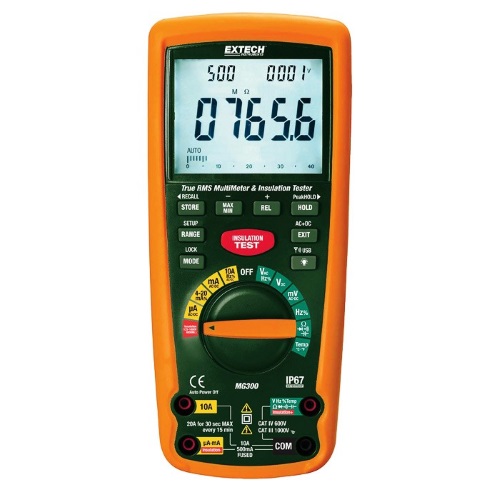

*** No Longer Available *** EXTECH  MG302 13 Function Wireless True RMS MultiMeter/Insulation Tester Designed for users outside of North America because of its 433 MHz wireless transmitter frequency, the MG302 is a true RMS multimeter with built-in insulation resistance tester with the added safety of wireless data streaming for remote monitoring and data recording. By adding insulation testing capabilities to this CAT IV-rated digital multimeter, electrical troubleshooters will always be equipped for insulation testing, helping to make it a more routine part of predictive maintenance with faster troubleshooting and repairs without the need for additional tools. MG302 Features Overview The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with four different test voltages for measuring resistance up to 4 GΩ with 0.001 MΩ resolution. The full-function, true RMS digital multimeter includes useful extras, like duty cycle measurements and milliamp readings for analog 4-20 mA current loops in industrial analog process controls. The MG302 also has built-in wireless data recording for safer troubleshooting and maintenance on moving equipment, one-person operation of remote safety switches, and the ability to monitor real-time readings on a laptop or computer screen from safe distances — up to 30 feet away — to detect intermittent anomalies. Applications Insulation testers can be used to test motor, transformer windings, instruments, and appliances, check for moisture in wire and cable assemblies, safely evaluate a new wiring installation, and check for carbon tracking in breakers, relays, and switches. Extech Insulation Testers offer high sensitivity to assure reliable monitoring of low resistance motor windings.  Specifications: Product Type Insulation Testers Display LCD DC voltage range 1000 V DC voltage accuracy ±0.06% Insulation resistance resolution 0.001 MΩ Insulation test voltages 125 V, 250 V, 500 V, 1000 V AC current resolution 0.001 A Power (6) AA batteries Dimensions 7.8″ H x 3.6″ W x 1.9″ D Resistance Measurement 40 MΩ DC current range 10 A DC current accuracy ±1.0% Insulation resistance accuracy ±3% Resistance Accuracy ±3% AC voltage resolution 0.1 V AC voltage range 1000 V DC voltage resolution 0.1 V Resistance Resolution 0.0001 MΩ
