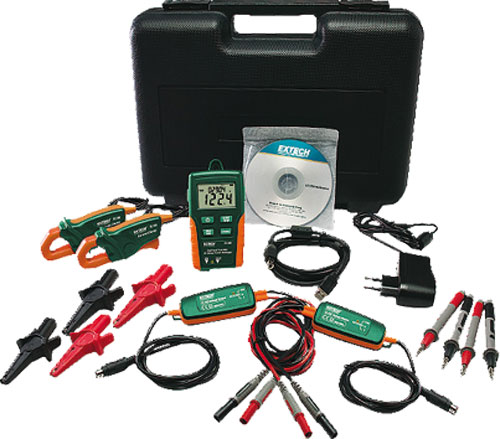

Extech DL160 True RMS AC Voltage & Current Datalogger

EXTECH DL160 Dual Input True RMS AC Voltage & Current Datalogger The EXTECH DL160 is capable of datalogging 2 channels simultaneously — up to 256,000 readings of TRMS AC Voltage (600 volts) or Current (200 amp) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. EXTECH DL160 Additional Features: LCD displays shows time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Normal, peak, and capture (user specified trigger level) recording modes. Extech DL160 Specifications: Display Multi-function LCD Maximum data points 256,000 values Channels dual channel, TRMS AC voltage or Current Sample rate 1s to 24h selectable Analysis software 2000/XP/Vista Data Output USB port Current Clamp Jaw Opening 12.7mm (0.5″) Open input indicatio “LO” appears on LCD Low battery indication Empty battery symbol appears on the LCD Power supply 4 AAA Batteries and 1 CR 3V memory button battery (CR2032 or equivalent) Battery life 5 days (approximately) AC Adaptor 9V, 0.5A Standards CE, CAT III 600V, for inside use, maximum height 2000 meters Operating Temperature 0 to 50°C, -32 to 122°F Operating Humidity <70% RH Storage Temperature -20°C to 60°C Storage Humidity <80% relative humidity Dimensions 114 x 63 x 34mm Weight 248g Function Range Accuracy Voltage (40Hz to 1kHz) 10VAC to 600.0VAC ±2.0%±1V Current (50/60Hz) 10A to 200.0A ±2.0%±1A
