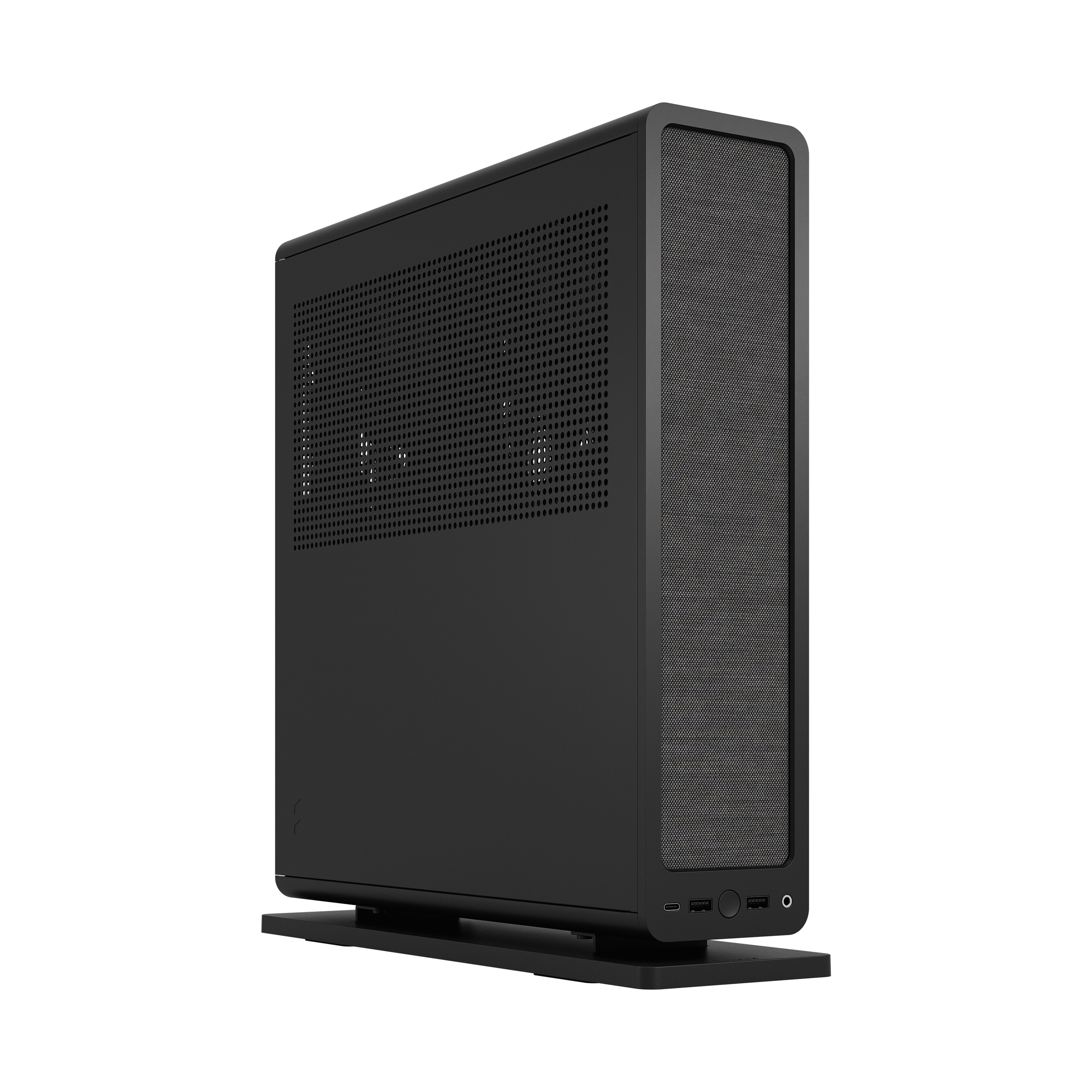

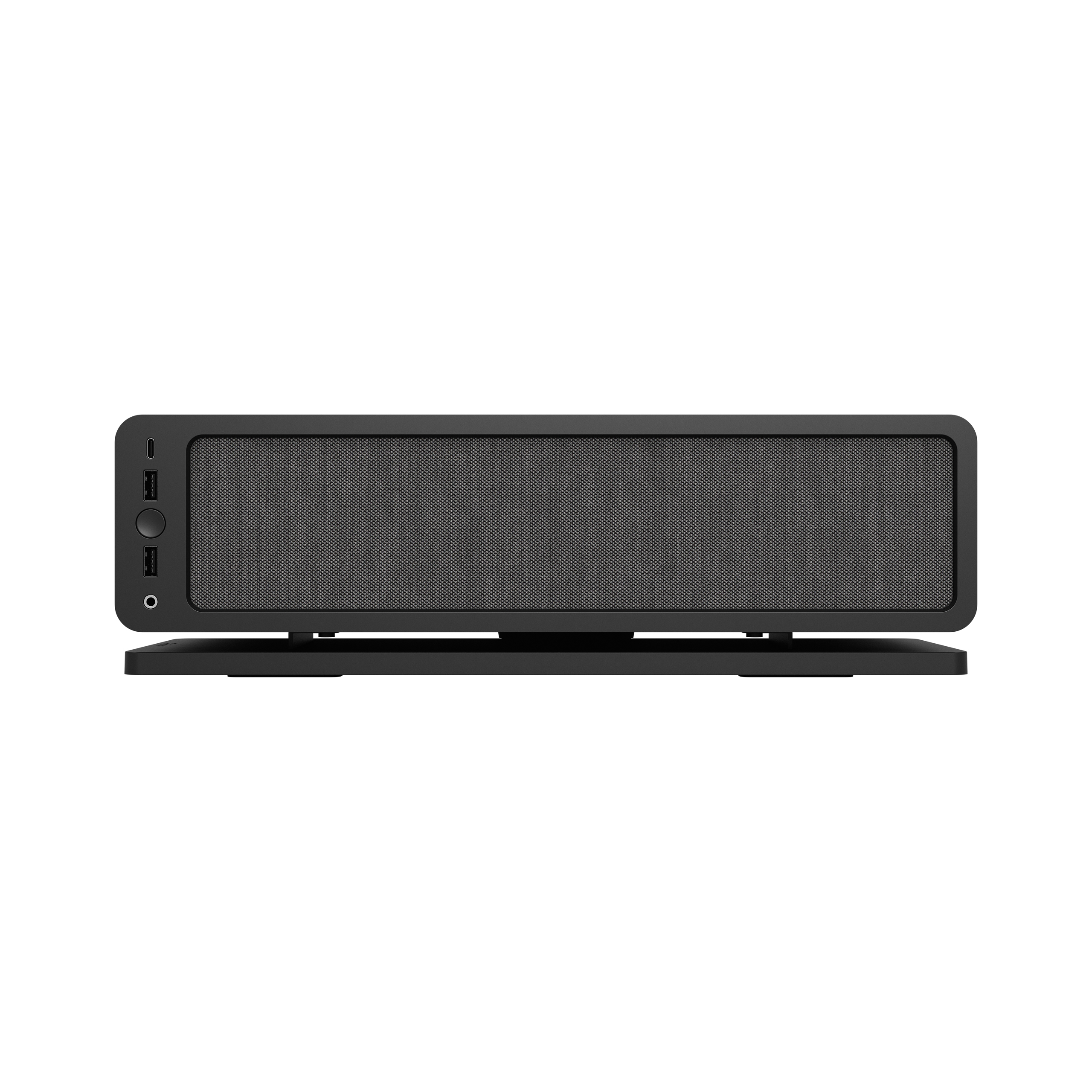

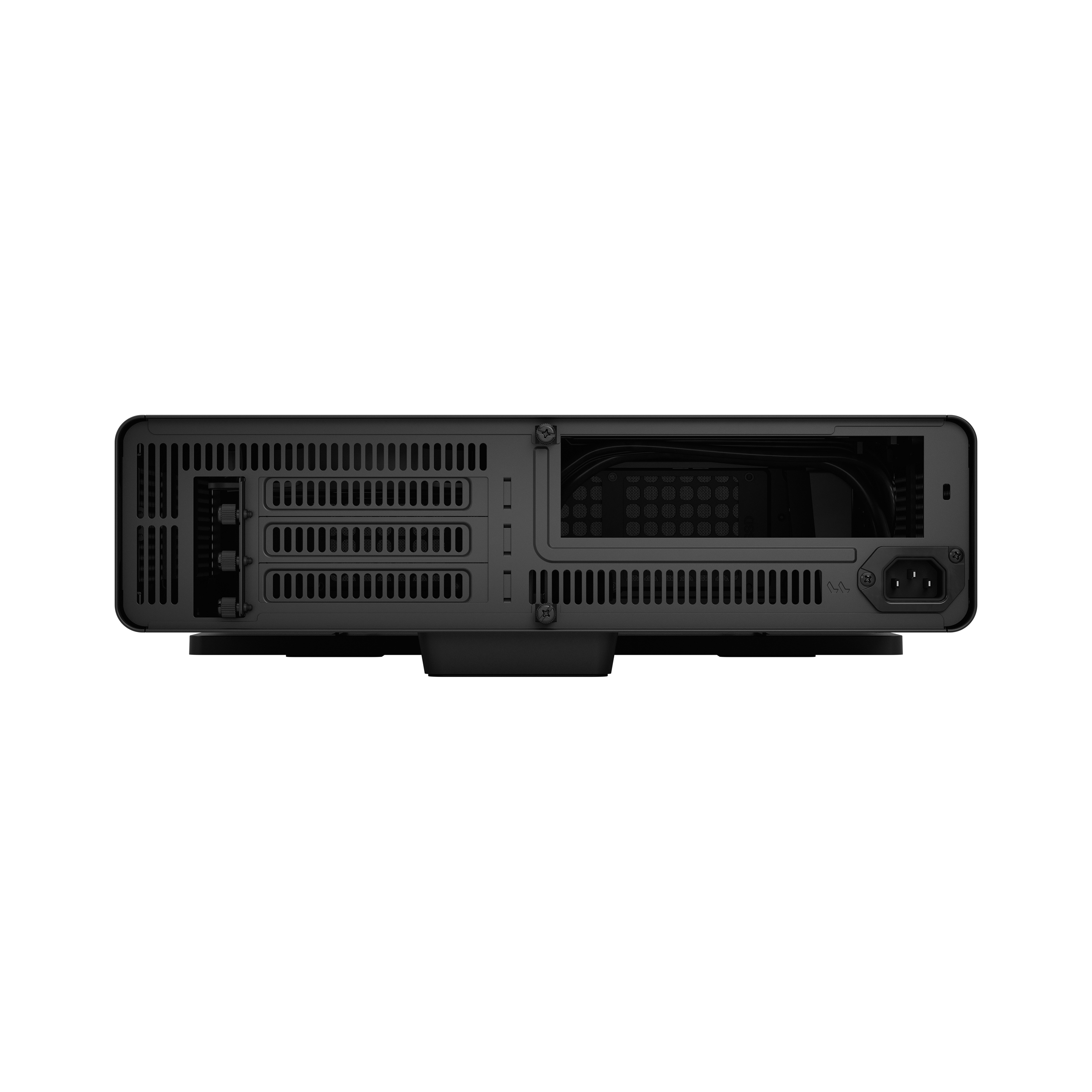

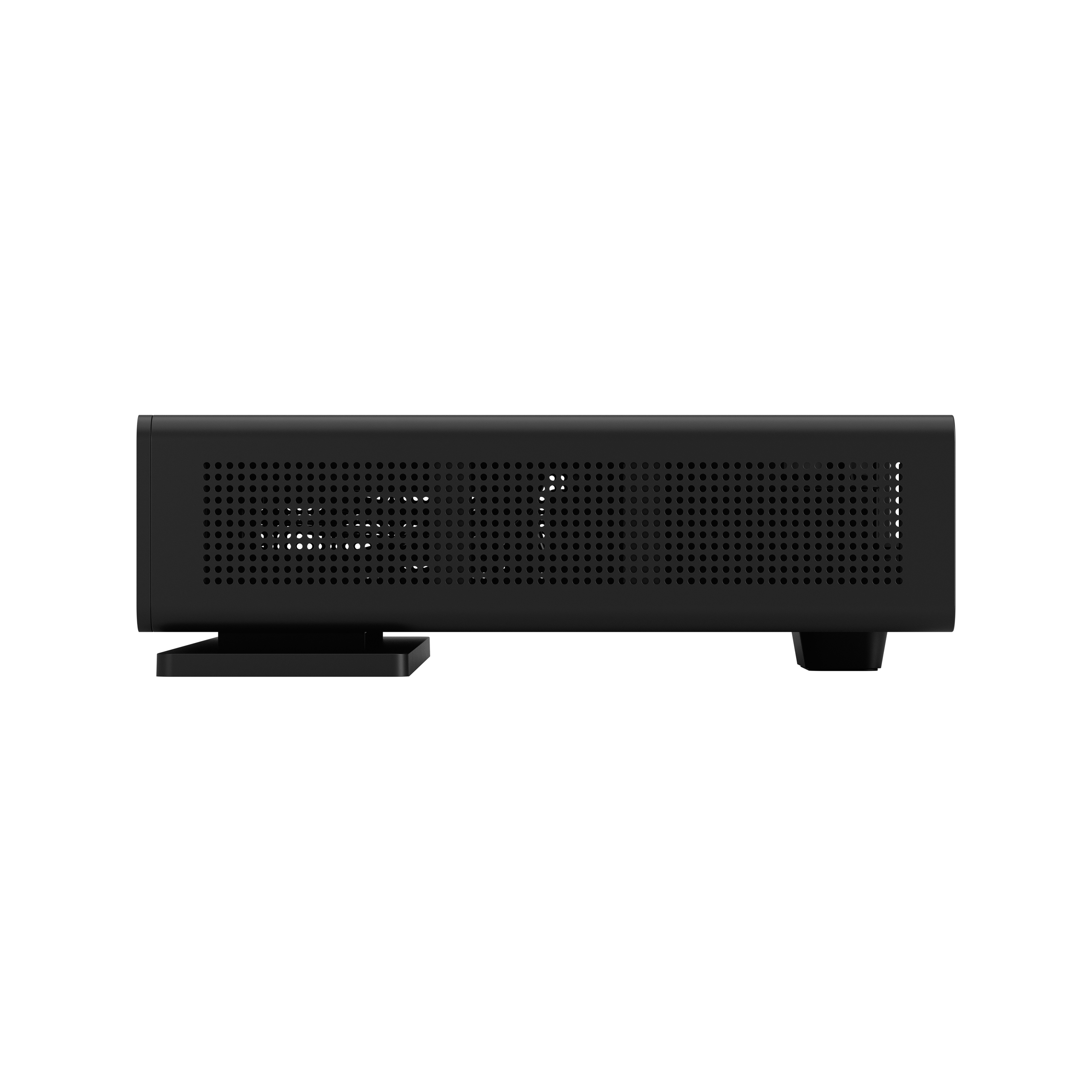

�� Fractal Design Ridge – The Compact Powerhouse for Minimalist Builds Model: Fractal Ridge Color Options: Black | White Form Factor: Mini ITX Volume: 12.6 Liters Orientation: Vertical or Horizontal �� Slim Form, Serious Potential Designed with living spaces and clean aesthetics in mind, the Fractal Ridge delivers powerful performance in a sleek, console-style footprint. Perfect for gamers, creators, or minimalists looking to build an SFF (Small Form Factor) system that doesn’t compromise on compatibility or airflow. ⚙️ Storage & Expansion Dedicated 2.5″ SSD Mounts: 4 included (4 positions total) Expansion Slots: 3-slot (supports triple-slot GPUs) �� Cooling & Airflow Total Fan Mounts: Side: 2x 120/140 mm (2x Aspect 140 mm PWM fans included) Top: 3x 80 mm (not included) Radiator Support (Side): Up to 120 mm when using ≤175mm GPU Up to 280 mm with no GPU installed Note: Optimized for SFF-ready enthusiast GPUs. �� Smart Cable Management Cable Routing Space: 13.8 mm (behind PSU) Tool-less Access: Slide side panels with thumbscrew locks Captive Thumbscrews: For both side panels Left & Right Side Panels: Solid steel �� Front I/O Connectivity 1x USB 3.2 Gen 2×2 Type-C (20 Gbps) 2x USB 3.0 1x Combo Audio Jack (Headphone/Mic) Power Button LED �� Hardware Compatibility Motherboard: Mini ITX Power Supply: SFX / SFX-L (Max length: SFX-L) GPU Max Length: 325 mm (with SSD installed) 335 mm (without SSD installed) GPU Max Height: 125 mm (with top fans) 137 mm (without top fans) GPU Max Thickness: 57 mm (with 2x 140 mm side fans) 82 mm (without side fans) CPU Cooler Max Height: 70 mm ⚠️ PCIe Compatibility Note If you’re using the Fractal Ridge PCIe 4.0 riser with a PCIe 5.0-compatible motherboard and GPU, make sure to set the PCIe slot to Gen4 in BIOS for optimal stability. �� Dimensions & Weight Case Dimensions (Vertical): 374 x 110 x 395 mm Case Dimensions (Horizontal): 360 x 375 x 115 mm Without Feet/Protrusions: 355 x 95 x 375 mm Net Weight: 4.3 kg Gross Weight: 5.5 kg �� What’s in the Box Fractal Ridge Case Accessory Box User Manual �� Product Codes & Barcodes Ridge Black: FD-C-RID1N-01 | EAN: 7340172703969 | UPC: 843276103965 White: FD-C-RID1N-02 | EAN: 7340172703976 | UPC: 843276103972 Ridge PCIe 4.0 Edition Black: FD-C-RID1N-11 | EAN: 7340172706090 | UPC: 843276106096 White: FD-C-RID1N-12 | EAN: 7340172706106 | UPC: 843276106102
