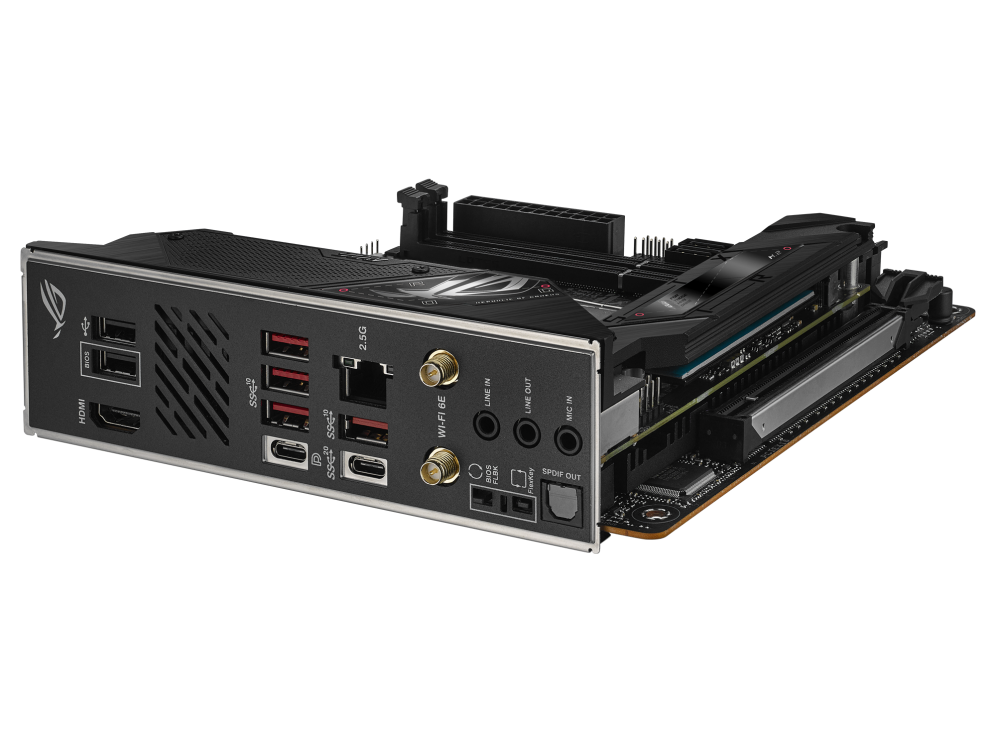

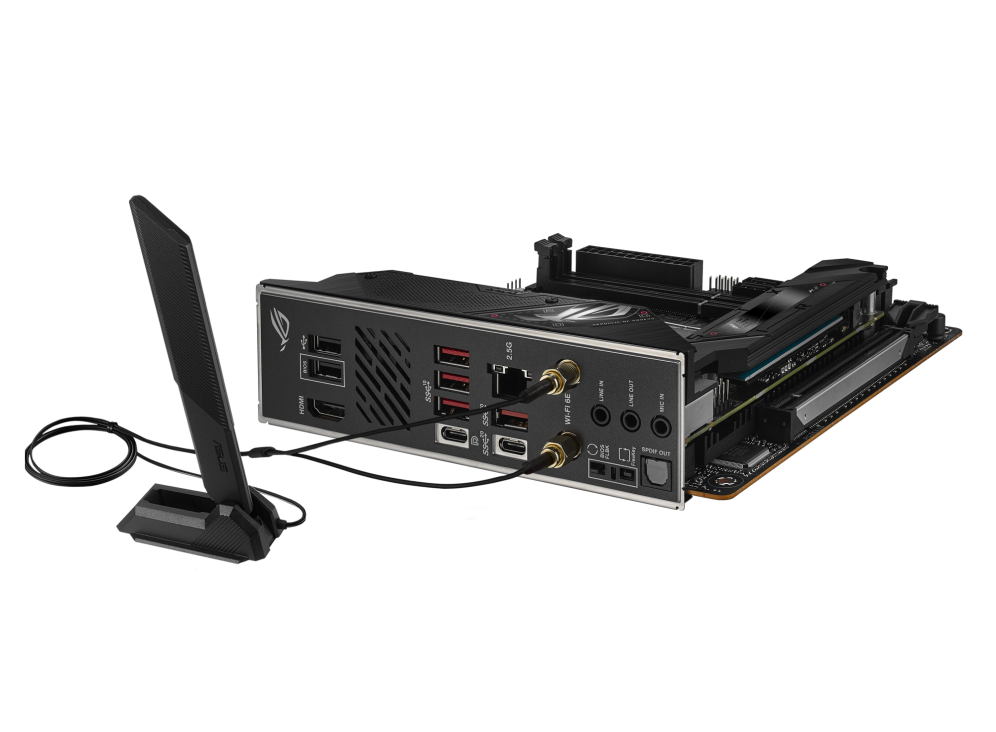

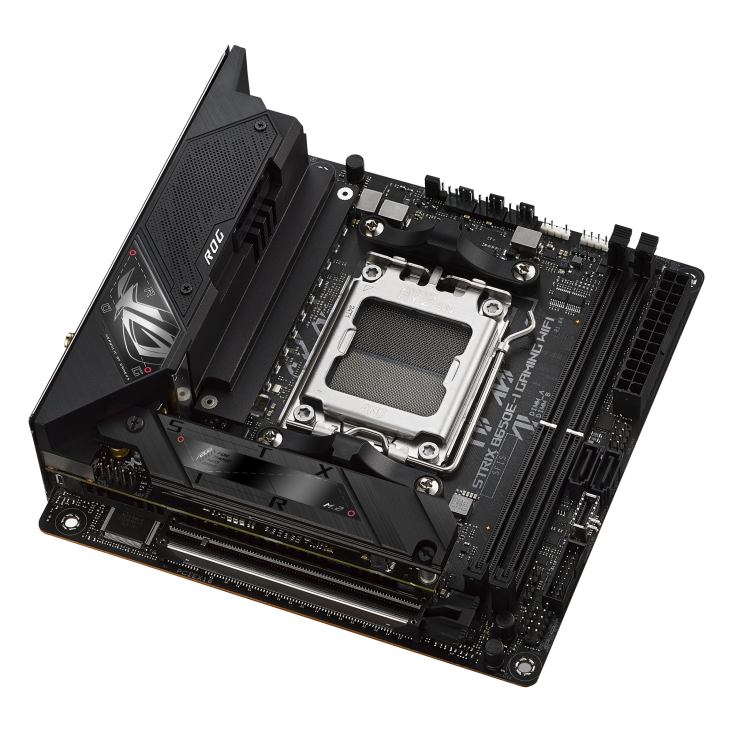

AMD B650 mini-ITX motherboard with 10 2 power stages, DDR5 support, PCIe® 5.0 NVMe® SSD support, one PCIe 5.0 x16 Safeslot, USB 3.2 Gen 2 Type-C® connector, Onboard WiFi 6E, and Aura Sync RGB lighting AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors Robust Power Solution:10 2 power stages with an 8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors Optimized VRM Thermals:Thick heatsinks bolster a quiet cooling system that is bonded to the power stages with high conductivity thermal pads Next-Gen M.2 Support: PCIe® 5.0 M.2 slot cooled by a large heatsink to maximize performance and an additional PCIe 4.0 M.2 slot for more storage Abundant Connectivity:USB 3.2 Gen 2×2 Type-C® port and seven additional USB ports, PCIe 5.0 x16 SafeSlot, and HDMI® 2.1 High-Performance Networking:On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard Intelligent Control:ASUS-exclusive, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 header DIY Friendly Design:2 Q-Latch, Pre-mounted I/O shield and BIOS FlashBack™ button, and FlexKey button Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate to manage all ASUS devices from one place, and bundled 60-day AIDA64 Extreme trial subscription CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* Chipset AMD B650 Memory 2 x DIMM, Max. 96GB, DDR5 8000 (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x HDMI® port*** 1 x USB3.2 Gen2 port supports USB Type-C® display outputs***** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports max. 8K@60Hz as specified in display outputs***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot* Storage Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)2 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1. Ethernet 1 x Intel® 2.5Gb EthernetASUS LANGuard Wireless & Bluetooth Wi-Fi 6E2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth® v5.2*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. USB Rear USB (Total 8 ports)1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)5 x USB 3.2 Gen 2 ports (4 x Type-A 1 x USB Type-C®)2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports)1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080– Impedance sense for front and rear headphone outputs– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input– Supports up to 32-Bit/384 kHz playback Audio Features – Audio Shielding – Savitech SV3H712 AMP – LED-illuminated audio jacks– Rear optical S/PDIF out port– Premium audio capacitors *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)5 x USB 3.2 Gen 2 ports (4 x Type-A 1 x USB Type-C® with DP Alt mode)2 x USB 2.0 ports (2 x Type-A) 1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port3 x LED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x FlexKey button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header1 x 4-pin Chassis Fan headerPower related 1 x 24-pin Main Power connector1 x 8-pin 12V Power connectorStorage related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 headers supports additional 2 USB 2.0 portsMiscellaneous1 x Addressable Gen 2 header1 x AURA RGB header1 x Clear CMOS header1 x CPU Over Voltage jumper1 x 12-1 pin Front Panel Audio header (AAFP)1 x 10-1 pin System Panel header1 x Speaker header1 x Thermal Sensor header Special Features Extreme Engine Digi -5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch– Q-DIMM– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])– Q-SlotASUS Thermal Solution– M.2 heatsink backplate– M.2 heatsink– VRM heatsink designASUS EZ DIY– BIOS FlashBack™ button– BIOS FlashBack™ LED– ProCool– Pre-mounted I/O shield– SafeSlot– SafeDIMMAURA Sync– AURA RGB header– Addressable Gen 2 header Software Features ROG Exclusive Software– GameFirst VI– ROG CPU-Z– Sonic Studio III Sonic Studio VirtualMixer Sonic Suite Companion– Sonic Radar III– DTS® Sound Unbound – Anti-virus softwareASUS Exclusive SoftwareArmoury Crate– AIDA64 Extreme (60 days free trial) – AURA Creator– AURA Sync– Fan Xpert 4 – Power Saving– Two-Way AI Noise CancellationAI Suite 3 – TPU – DIGI VRM– Turbo app – PC CleanerMyAsusWinRARUEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeDynamic OC SwitcherFlexKey BIOS 256 MbFlash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable1 x Panel cableAdditional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 Bracket1 x M.2 SSD screw package1 x M.2 Q-Latch package for M.2 backplate1 x ROG key chain1 x ROG Strix sticker1 x ROG Strix thank you card1 x Rubber Package for M.2 backplateDocumentation1 x User guide Operating System Windows® 11 64-bit, Windows 10 64-bit Form Factor Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)
