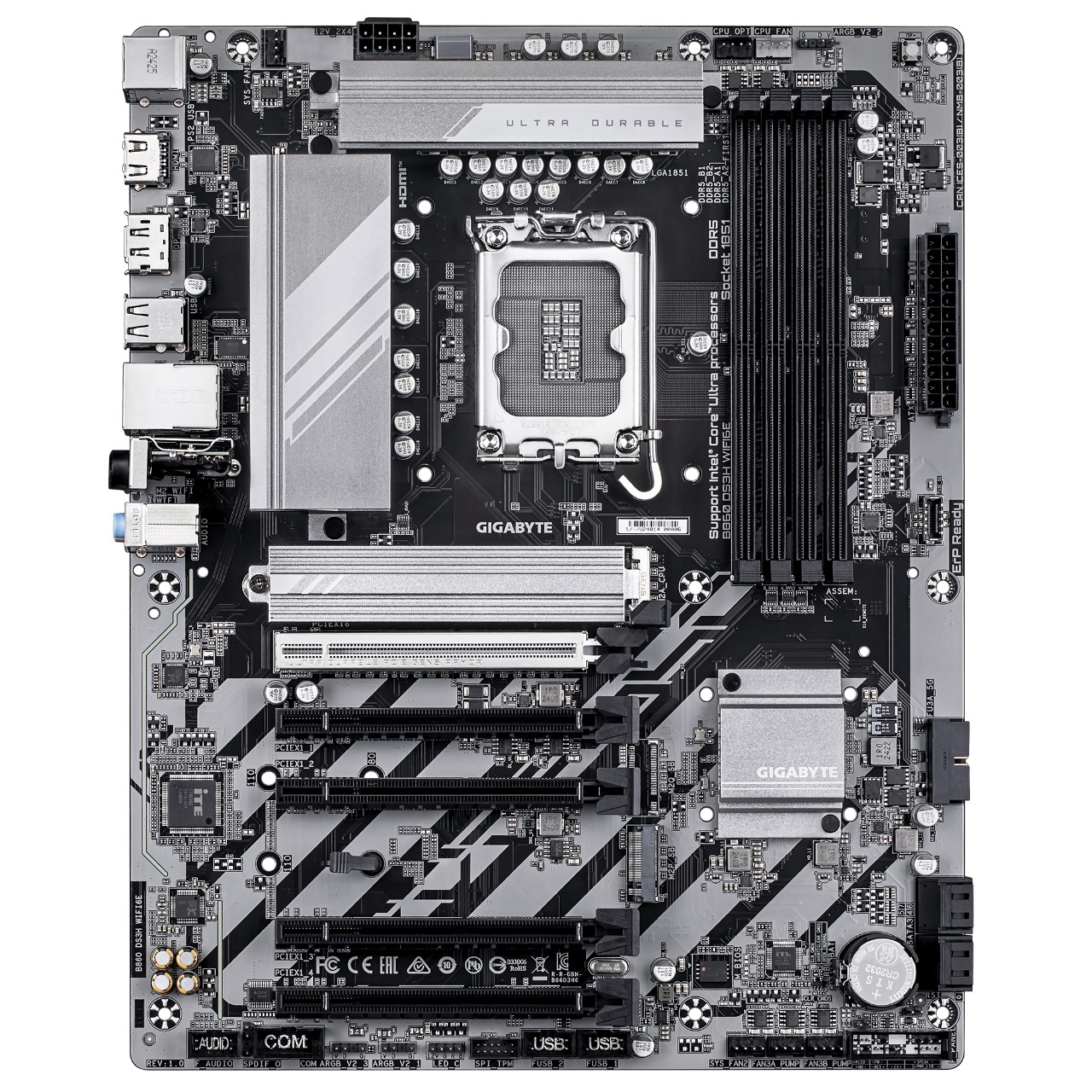

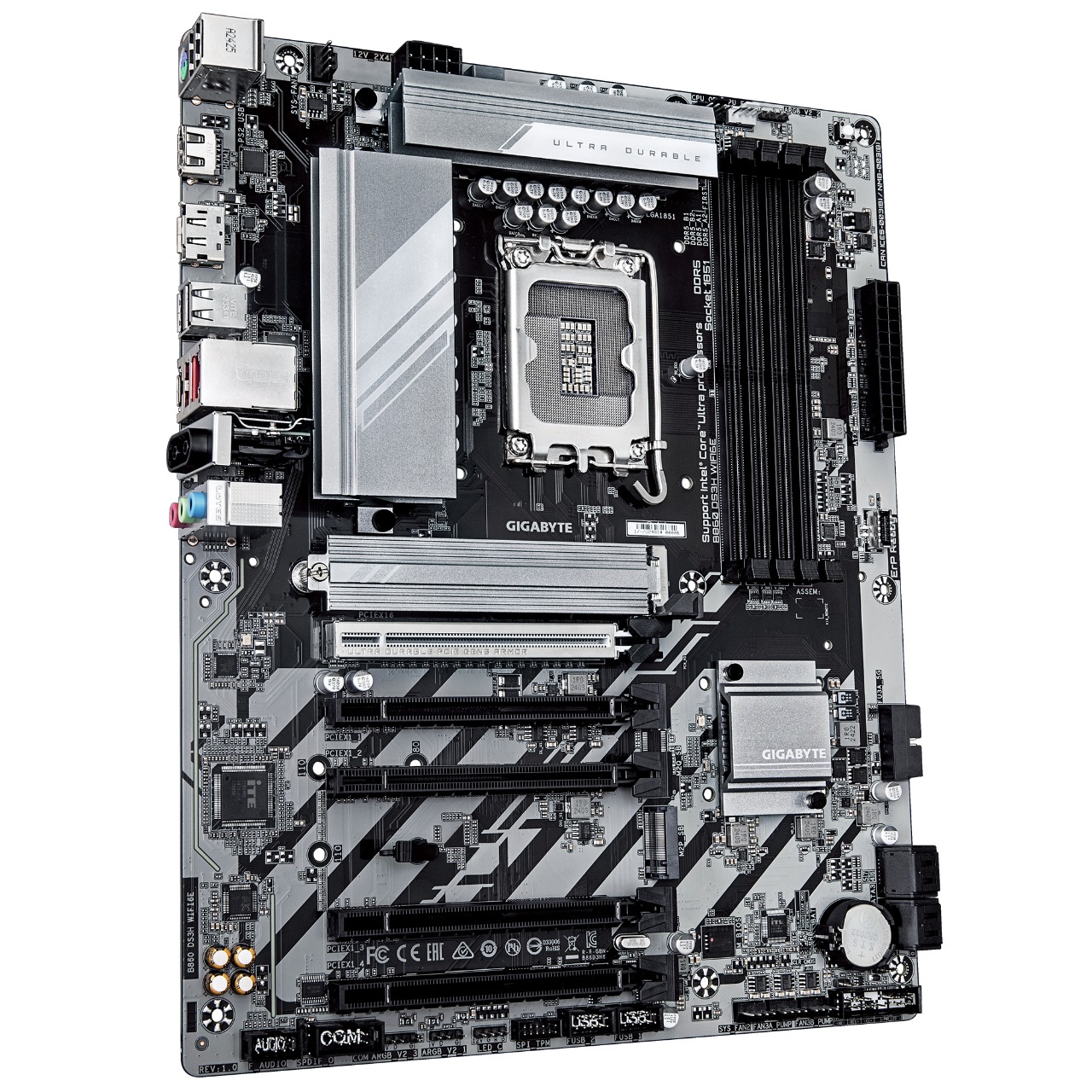

Gigabyte B860 DS3H WIFI6E

�� CPU & Chipset Socket: LGA1851 – supports Intel® Core™ Ultra Processors Chipset: Intel® B860 Express L3 Cache: Varies with CPU �� Memory 4 × DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) Supported speeds: DDR5 9066(O.C) down to 5600 MT/s Dual-channel architecture Supports ECC (non-ECC mode) and non-ECC Un-buffered DIMMs XMP profiles supported Memory support depends on CPU and configuration �� Onboard Graphics HDMI 2.1 port: up to 4096×2160 @ 60 Hz, HDCP 2.3 DisplayPort 2.1 port: up to 3840×2160 @ 144 Hz Graphics capability depends on CPU �� Audio Realtek® Audio CODEC Supports high-definition 2/4/5.1/7.1-channel audio S/PDIF Out supported �� Networking Realtek® 2.5GbE LAN (2.5G/1G/100M) Wi-Fi & Bluetooth: PCB rev. 1.0: Intel® Wi-Fi 6E AX211 (Wi-Fi 6E, BT 5.3) PCB rev. 1.1: Realtek® Wi-Fi 6E RTL8852CE (Wi-Fi 6E, BT 5.3) �� Expansion Slots CPU PCIe: 1 × PCIe 5.0 x16 slot (for GPU or NVMe SSD) Chipset PCIe: 4 × PCIe 4.0 x16 slots running at x1 (PCIEX1_1~PCIEX1_4) �� Storage M.2 Slots: 1 × M.2 PCIe 5.0 x4/x2 (CPU-connected) 1 × M.2 PCIe 4.0 x4/x2 (chipset-connected) SATA: 4 × SATA 6Gb/s ports RAID 0, 1, 5, 10 supported ⚡ USB Connectivity Rear USB: 1 × USB-C 3.2 Gen2x2 1 × USB-A 3.2 Gen2 4 × USB 2.0/1.1 Internal Headers: 1 × USB-C 3.2 Gen1 1 × USB 3.2 Gen1 header (2 ports) 2 × USB 2.0 headers (4 ports) �� Internal I/O 1 × 24-pin ATX main power 1 × 8-pin ATX 12V power CPU, CPU/pump, and multiple system/pump fan headers 3 × ARGB Gen2 and 1 × RGB LED strip headers 2 × M.2 connectors 4 × SATA connectors Front panel, audio, S/PDIF Out, serial port headers USB Type-C header, USB 3.2 Gen1, and USB 2.0 headers Trusted Platform Module (TPM) header Q-Flash Plus button, reset jumper, Clear CMOS jumper �� Rear Panel 1 × PS/2 keyboard/mouse port 1 × HDMI, 1 × DisplayPort 1 × USB-C 3.2 Gen2x2, 1 × USB-A 3.2 Gen2, 4 × USB 2.0 1 × RJ-45 LAN 2 × Wi-Fi antenna connectors 3 × audio jacks ��️ Monitoring & BIOS Voltage, temperature, and fan speed detection Fan fail warnings, pump/fan speed control AMI UEFI BIOS with 256 Mbit flash Q-Flash & Q-Flash Plus supported �� Features GIGABYTE Control Center software Smart Backup RGB & ARGB lighting control �� Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management utility ��️ Operating Systems Windows 11 64-bit Windows 10 64-bit (Intel® NPU driver supported only on Windows 11) ��️ Form Factor ATX (30.5 cm × 24.4 cm)
