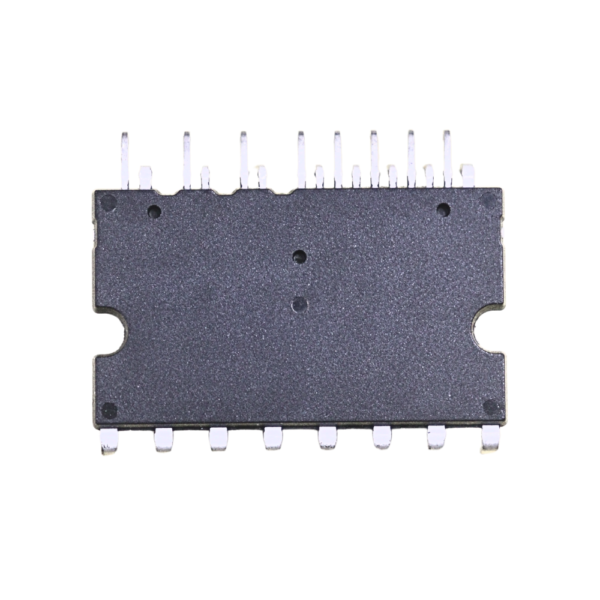

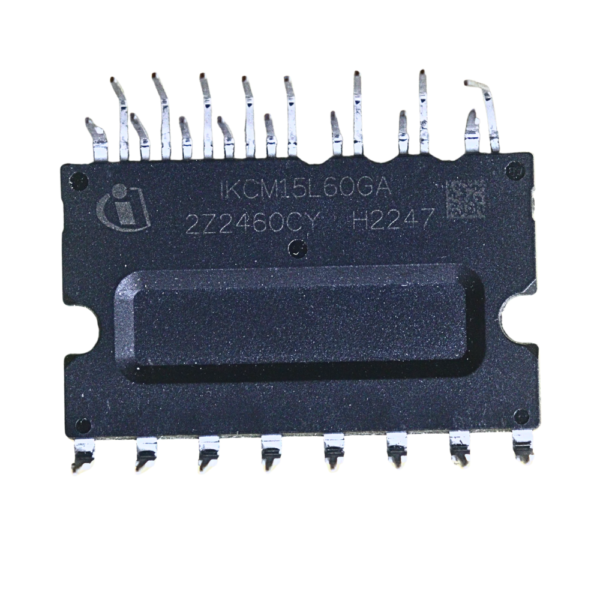

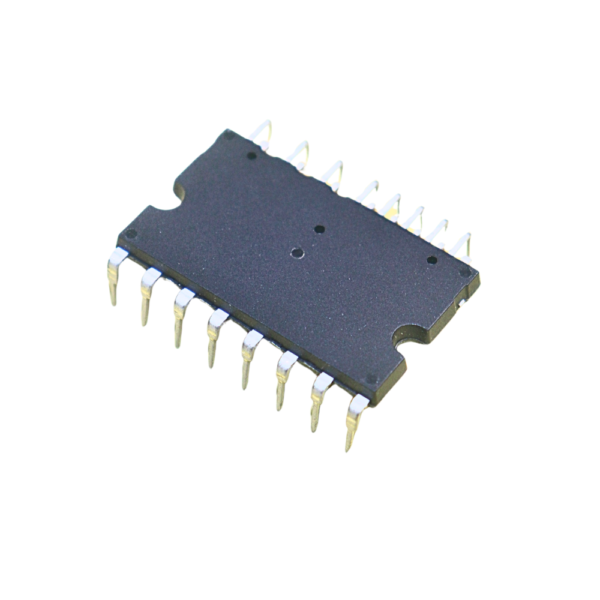

Description IKCM15L60GA Intelligent Power Module (IPM) 600V 15A – High Efficiency Motor Drive IC The IKCM15L60GA Intelligent Power Module (IPM) is a highly integrated power device designed for motor drive applications, especially in appliances like air conditioners, washing machines, and industrial inverters. It combines IGBTs, gate drivers, and protection circuits into a single compact module, making it easy to use, reliable, and efficient. ⚙️ Key Features ✅ 600V Voltage Rating – Suitable for high-voltage applications✅ 15A Current Capacity – Ideal for medium power motor drives✅ Built-in IGBT Technology – High efficiency & low switching loss✅ Integrated Gate Driver Circuit – Simplifies design✅ Short Circuit Protection – Enhanced safety✅ Under Voltage Lockout (UVLO) – Prevents unstable operation✅ Over Temperature Protection – Increases lifespan✅ Compact DIP Module – Easy PCB mounting �� Technical Specifications Parameter Value Model IKCM15L60GA Voltage Rating 600V Current Rating 15A Package Type DIP IPM Module Technology IGBT Based Application Motor Drive / Inverter Protection Features SCP, UVLO, OTP Mounting Type Through Hole �� How It Works (Simple Explanation) �� This IPM acts like a complete motor driver circuit in one IC/module Converts DC to AC for motor control Uses IGBT switches for efficient power handling Internal driver ensures proper switching timing Built-in protections save your circuit from damage �� So instead of designing a complex circuit, you can directly use this module! �� Applications ✔️ Air Conditioner Outdoor/Indoor Units✔️ Washing Machines✔️ Refrigerator Compressors✔️ BLDC Motor Drivers✔️ Industrial Motor Control Systems✔️ Inverter Circuits✔️ EV Auxiliary Systems �� Why Choose This IPM? ⭐ Reduces circuit complexity⭐ Saves development time⭐ High reliability & safety⭐ Compact & professional design⭐ Perfect for technicians and engineers �� Package Includes �� 1 × IKCM15L60GA Intelligent Power Module
